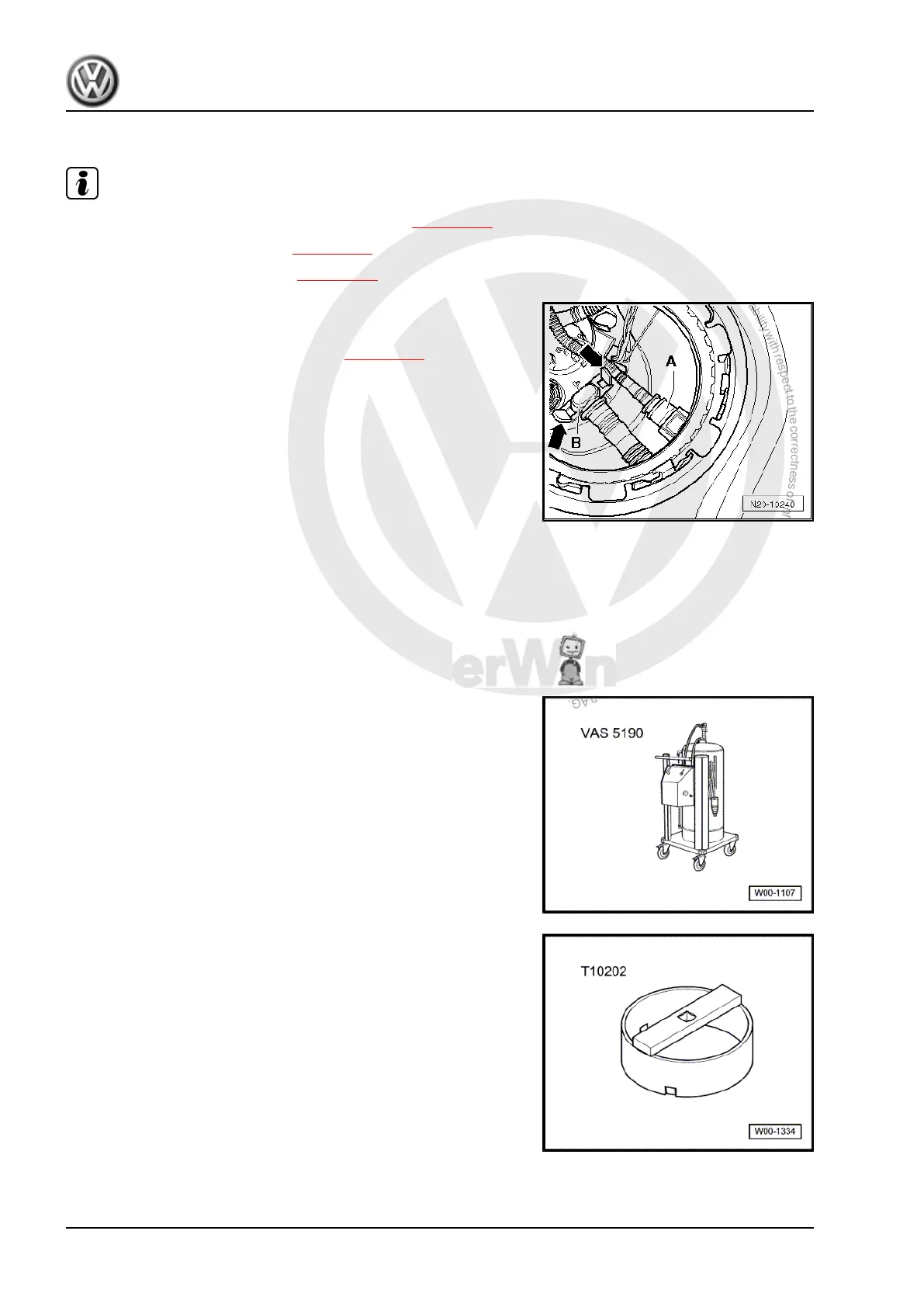

Removing suction-jet pump
Note
♦
Note safety precautions before beginning work ⇒ page 150 .
♦
Observe rules for cleanliness ⇒ page 151 .
♦
Assembly overview - fuel tank ⇒ page 192 .
– Disconnect fuel lines -1 and 2- to suction-jet pump, removing
and installing fuel delivery unit.
– Remove fuel gauge sender 2 -G169- ⇒ page 198 .
– Now the suction-jet pump can be pulled out from side of fuel
gauge sender 2 -G169- (left side of vehicle).
– Check that the fuel lines on suction-jet pump are fitted securely
and are not damaged.
– Additionally check suction-jet pump for possible soiling.
Installing suction-jet pump
Installation is performed in the reverse sequence. In the process,
note the following:
♦ Fuel lines are to be installed free of kinks.
♦ Ensure that line connections are tight.
5.2 Emptying fuel tank, vehicles with four-
wheel drive
Special tools and workshop equipment required
♦ Fuel extractor -VAS 5190-
♦ Special wrench -T10202-
♦ Torque wrench (40…200 Nm) -V.A.G 1332-
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
202 Rep. gr.20 - Fuel supply system
