9 - Front silencer
❑ For repairs, renew indi‐
vidually.
10 - Clamp
Specified torque and installation position ⇒ page 279
11 - Threaded union
❑ Tighten bolted connections evenly. Specified torque and installation position ⇒ page 279
12 - From front exhaust pipe

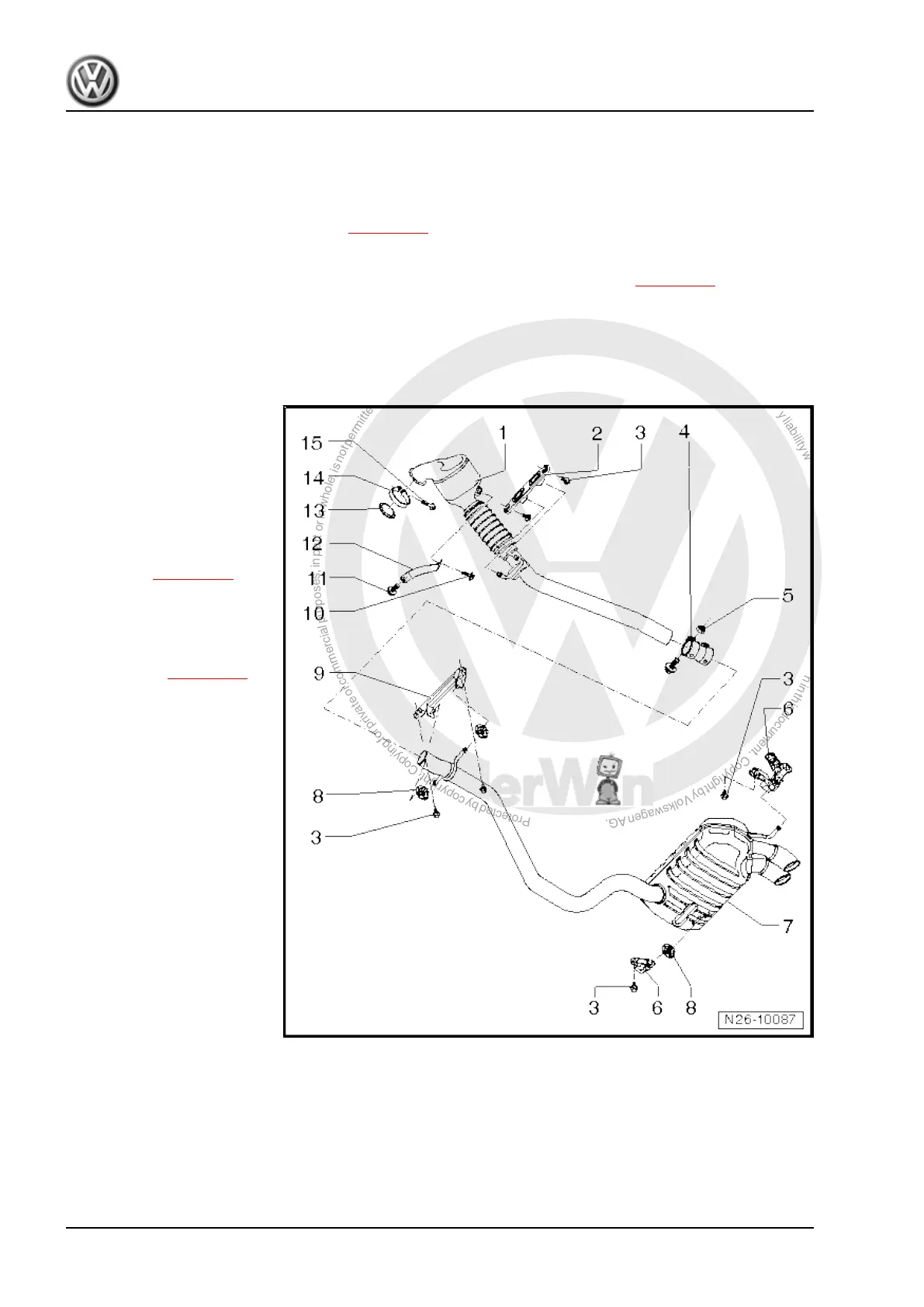

2.2 Assembly overview - silencer, vehicles with four-wheel drive
1 - Front exhaust pipe with cat‐
alytic converter
2 - Mounting
❑ Renew if damaged.
3 - 25 Nm
4 - Clamp
Specified torque and installa‐
tion position ⇒ page 279
5 - Threaded union
❑ Tighten bolted connec‐
tions evenly. Specified
torque and installation
position ⇒ page 279
6 - Mounting
❑ Renew if damaged.
7 - Rear silencer
8 - Retaining ring
❑ Renew if damaged.
9 - Mounting
10 - 40 Nm
11 - 40 Nm
12 - Support
13 - Seal
❑ Renew.
14 - Clip
15 - 7 Nm
2.3 Cutting exhaust pipe
Special tools and workshop equipment required
Golf 2004 ➤ , Golf Plus 2005 ➤ , Passat 2006 ➤ , Touran 2003 ➤
4-cylinder diesel engine (2.0 l engine, 4 valve) - Edition 02.2011
278 Rep. gr.26 - Exhaust system
