f) Continuity check
Make sure that all the circuit parts, circuits and components to be measured
as well as other objects of measurement are disconnected from the voltage.

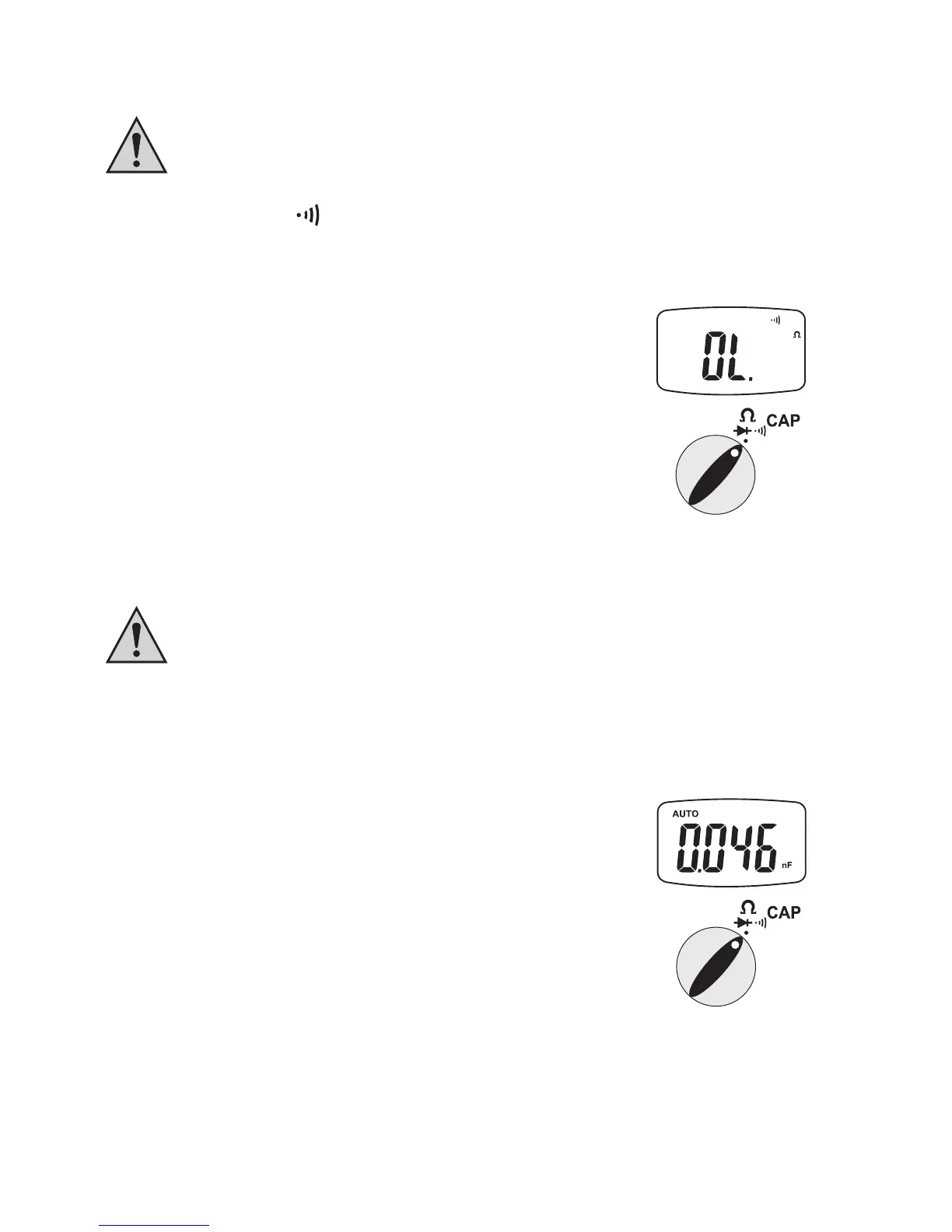

Select measuring range
To activate the function of the acoustic continuity tester, press the button „MODE“ (3) twice.
Pressing this button again takes you to the next measuring function (capacity measurement)
etc.
- The display indicates the symbol „Continuitytest“.
- A measuring value of less than 100 Ohm is identied as continuity;
in this case a beep sounds.
- As soon as „OL.“ (overow) on the display, you have exceeded
the measuring range or the measuring circuit has been interrup-
ted.
g) Capacity measurement
Make sure that all the circuit parts, circuits and components to be measured
as well as other objects of measurement are disconnected from the voltage.
Select measuring range „CAP“
To activate the capacity measurement function, press the button „MODE“ (3) three times.
Pressing this button again takes you to the next measuring function (resistance) etc.
- The display shows the unit „nF“.
- Now connect the two test prods with the object to be measured
(condenser). After a short while the display shows the capacity.
- As soon as „OL.“ (overow) on the display, you have exceeded
the measuring range or the measuring circuit has been interrup-
ted.
