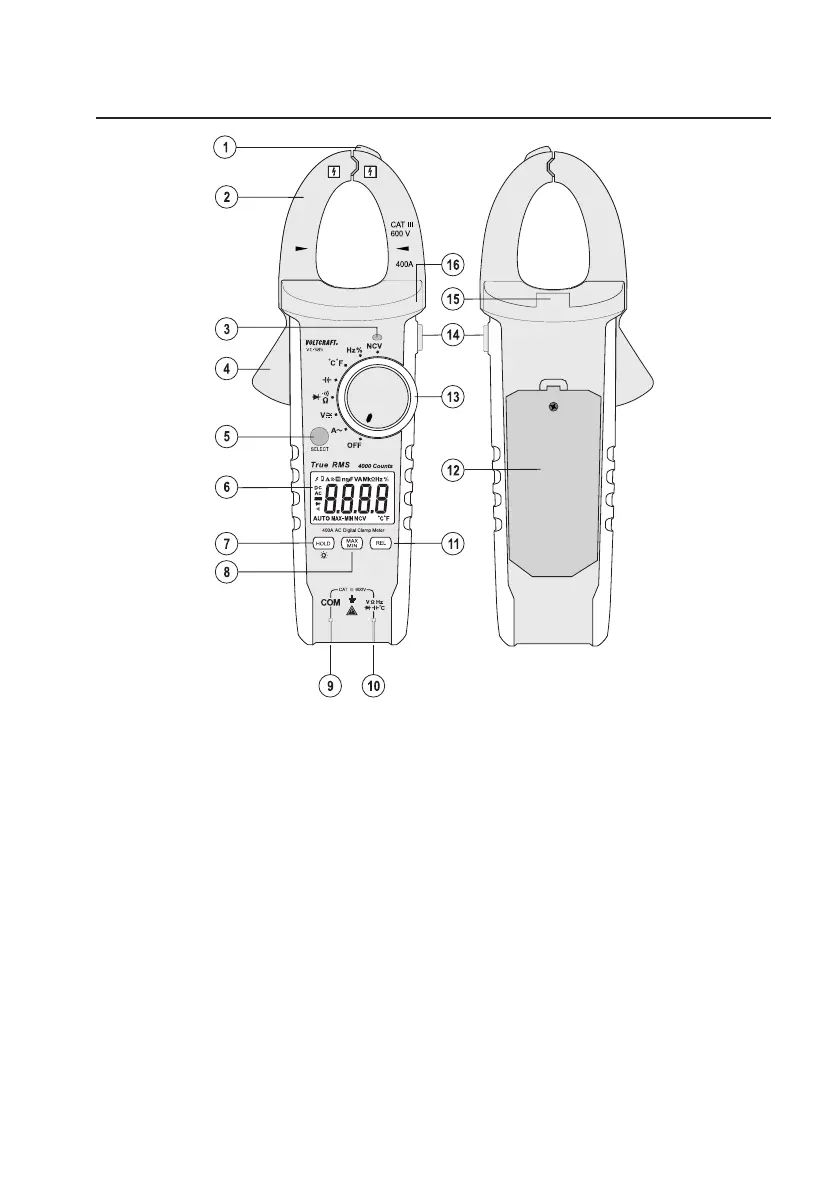

5. Operating Elements
1 Integrated NCV sensor
2 Current injection probe
3 NCV signal display
4 Current probe opening lever
5 SELECT button for function switching (red symbols)
6 Measuring display (display)
7 HOLD function button to hold the measuring display and for display lighting
8 MAX/MIN function button to display the maximum and minimum value
9 COM measuring jack (reference potential, "minus potential")
10 VΩmeasuringjack(atdirectvoltage"pluspotential")
11 REL function button for reference value measurement
12 Battery compartment
13 Rotary control for selecting the measuring function
14 Button for measuring point lighting
15 Measuring point lighting
16 Tangible grip area marking
