Controls
The control lever on Volvo Penta controls has an ad-
justable friction brake. This allows the lever weighting
to be adapted to the personal needs of the owner.
Dual lever controls have individually adjustable fric-
tion brakes for each lever.
Adjusting the friction brake
Single lever control
This brake is intended for controlling speed and is
adjusted at half throttle with the reverse gear en-
gaged. The brake does not affect shifting.
1. Remove the cover over the control.
2. Adjust the friction by turning the screw at the ar-
row (see figure).
Turning the screw clockwise (+) makes the lever
movement stiffer, while turning counterclock-
wise (–) consequently makes it easier to move
the lever.
3. Reinstall the cover over the control.

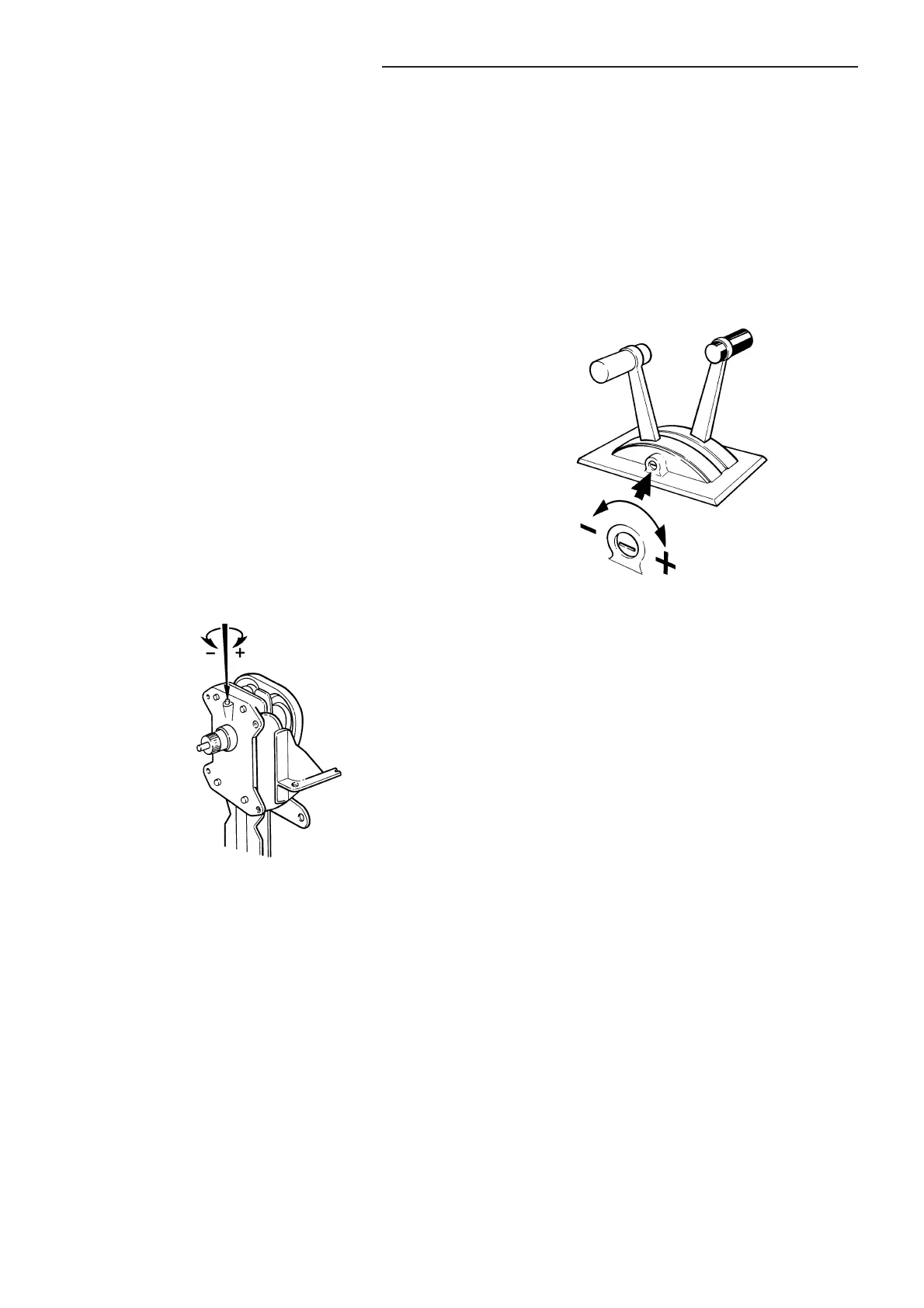

Adjusting the friction brake on single lever controls
(single or dual)
Dual lever control
The brake is for the engine speed control.
Adjust the friction by turning the screw at the arrow
(see figure).
Turning the screw clockwise (+) makes the lever
movement stiffer, while turning counterclockwise (–)
consequently makes it easier to move the lever.
Adjusting the friction brake on dual lever controls
