10

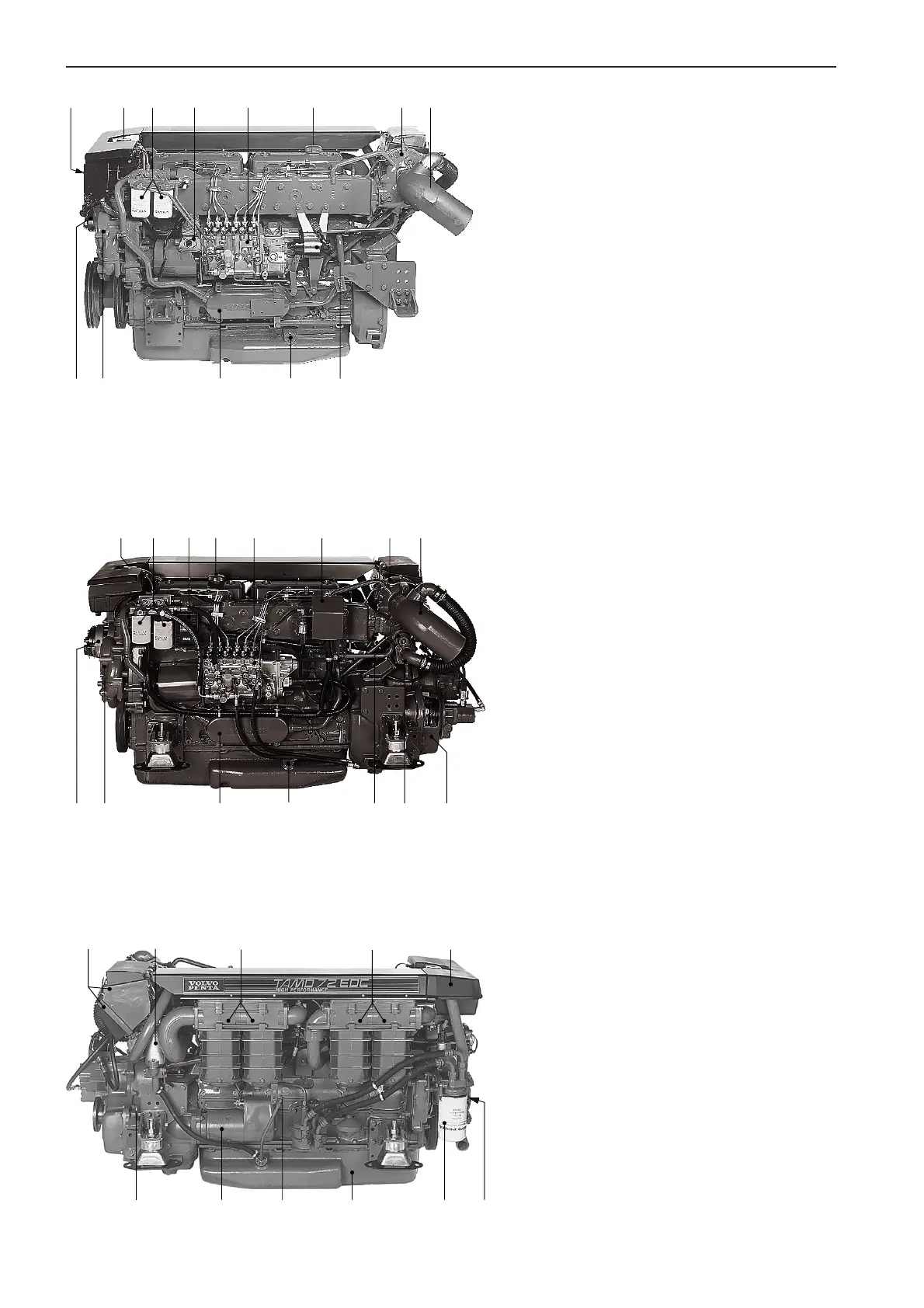

Fig. 6. TAMD72P-A (“TAMD72EDC”)
1. Air cleaner (ACL)
2. Filter for crankcase ventilation
3. Charge air coolers (CAC)
4. Heat exchangers
5. Expansion tank
6. Seawater pump
7. Lubricating oil filter, engine (alt. located at
the left side of the engine – accessory)
8. Oil sump
9. Oil dipstick
10. Starter motor
11. Oil dipstick, TD MG507-1 reverse gear
Fig. 5. TAMD72P-A (“TAMD72EDC”)
1. Coolant filler cap
2. Fine fuel filters
3. Electronic Diesel Control (EDC) control
module box
4. Oil filler cap
5. Injection pump
6. Terminal box with semi-automatic fuses
7. Turbocharger
8. Water-cooled exhaust bend (accessory)
9. TD MG507-1 Reverse gear
10. Oil cooler, reverse gear
11. Wastegate valve (by-pass valve)
12. Alt. location of oil dipstick
13. Oil cooler, engine
14. Circulation pump
15. Alternating current (AC) generator (GEN)
Fig. 4. TAMD72WJ-A
1. Terminal box with semi-automatic fuses
2. Coolant filler cap
3. Fine fuel filters
4. Smoke limiter
5. Injection pump
6. Oil filler cap
7. Turbocharger
8. Water-cooled exhaust bend (accessory)
9. Stop solenoid
10. Alt. location of oil dipstick
11. Oil cooler, engine
12. Circulation pump
13. Alternating current (AC) generator (GEN)
12345 6 78
13 12 11 10 9
15 14 13 12 11 10 9
1234 5 6 78
11 10 9 8 7 6
12 3 4 5
