13

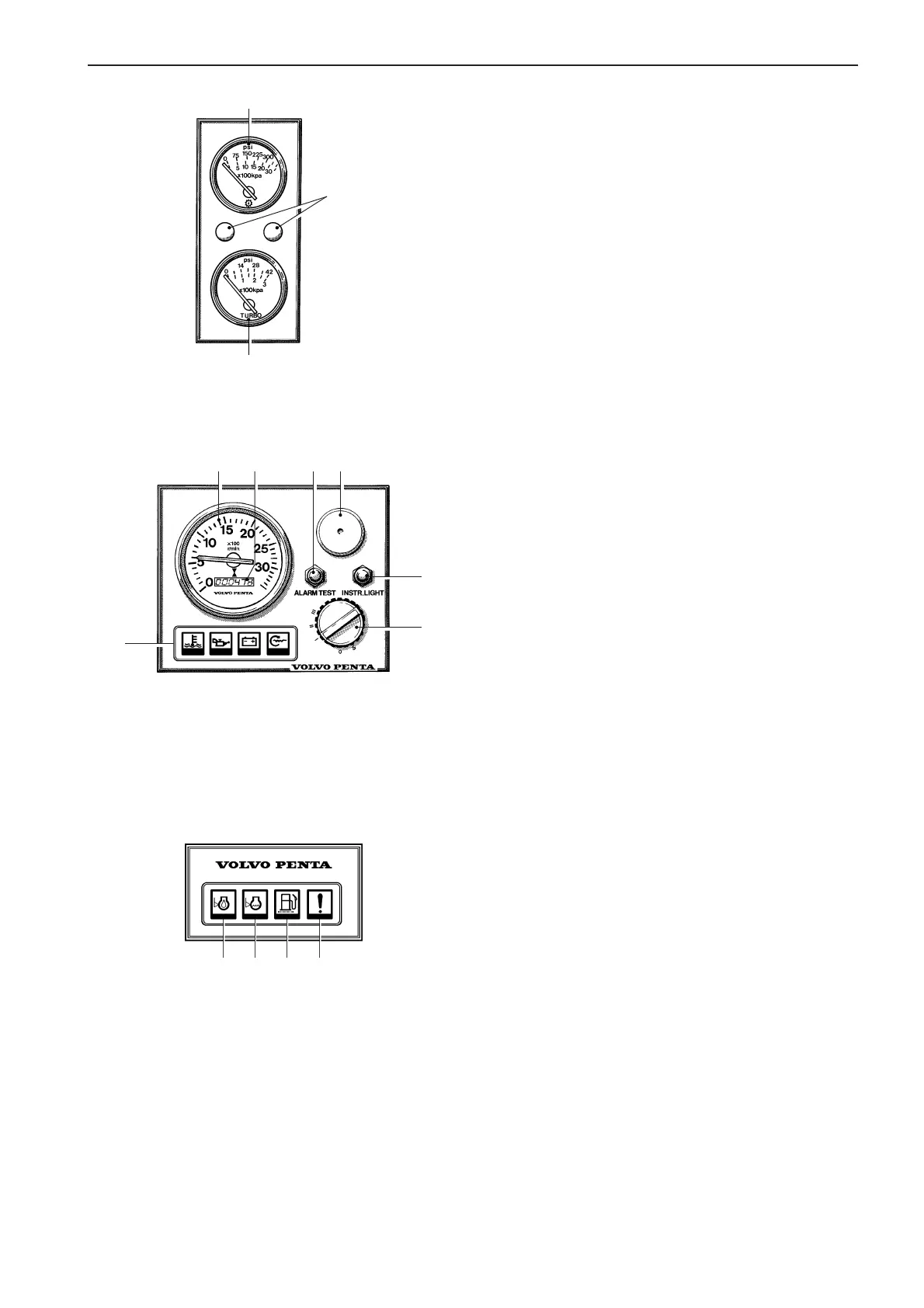

Auxiliary panel
18. Oil pressure gauge for reverse gear.
19. Blind plugs. Space for extra switches etc.
20. Pressure gauge for turbocharger’s charging
pressure.
Control panel for auxiliary control
position (Flying Bridge)
21. Tachometer, engine speed. Multiply this value by
100 for revolutions per minute
22. Hours run meter. Displays the engine’s operating
time in hours and tenths of an hour.
23. Pressure switch for testing the alarm function.
24. Alarm for malfunctions, corresponding to alarm
on main panel.
25. Pressure switch for instrument lighting.
26. Key switch (start lock) with start and stop func-
tions and a built-in restart inhibitor (starter motor
protection).
The restart inhibitor means that new attempts to
start can be made only once the key has been
returned to the stop position (S).
27. Alarm panel with warning symbols corresponding
to main panel.
Extra alarm panel
This panel has four “windows”. If the acoustic alarm
comes on, one of the windows starts to flash (red) to
show the cause of the alarm.
28. Oil level too low.* Fill oil to correct level before
starting.
29. Engine coolant level low.* Top up engine coolant
to correct level before starting.
30. Water in extra fuel filter. Drain off water in filter.
See maintenance schedule on page 34 (item
12).
31. Extra alarm.
*Note! Alarms for low level with engine stopped and with key
switch in position I (Operation position).
Instrument kits
Instruments are also available as individual items in
kits. These kits include the following three smaller
panels for starting and stopping and for utilizing the
alarm functions.
18
20
19
21 22 23 24
27
25
26
28 29 30 31
