46
3. Screw on the new filter by hand until the gasket
is in contact with the sealing surface. Then tight-
en the filter a further 3/4 turn (approx.).
4. Fill with oil, start the engine and check for leaks.
Stop engine and check the oil level.
Draining oil from the reverse gear
2. Start the engine and run it until the reverse gear
reaches operating temperature.
3. Check the oil level with the engine idling and with
the neutral position selected.
The oil level should reach the upper mark on the
dipstick. Top up if required.

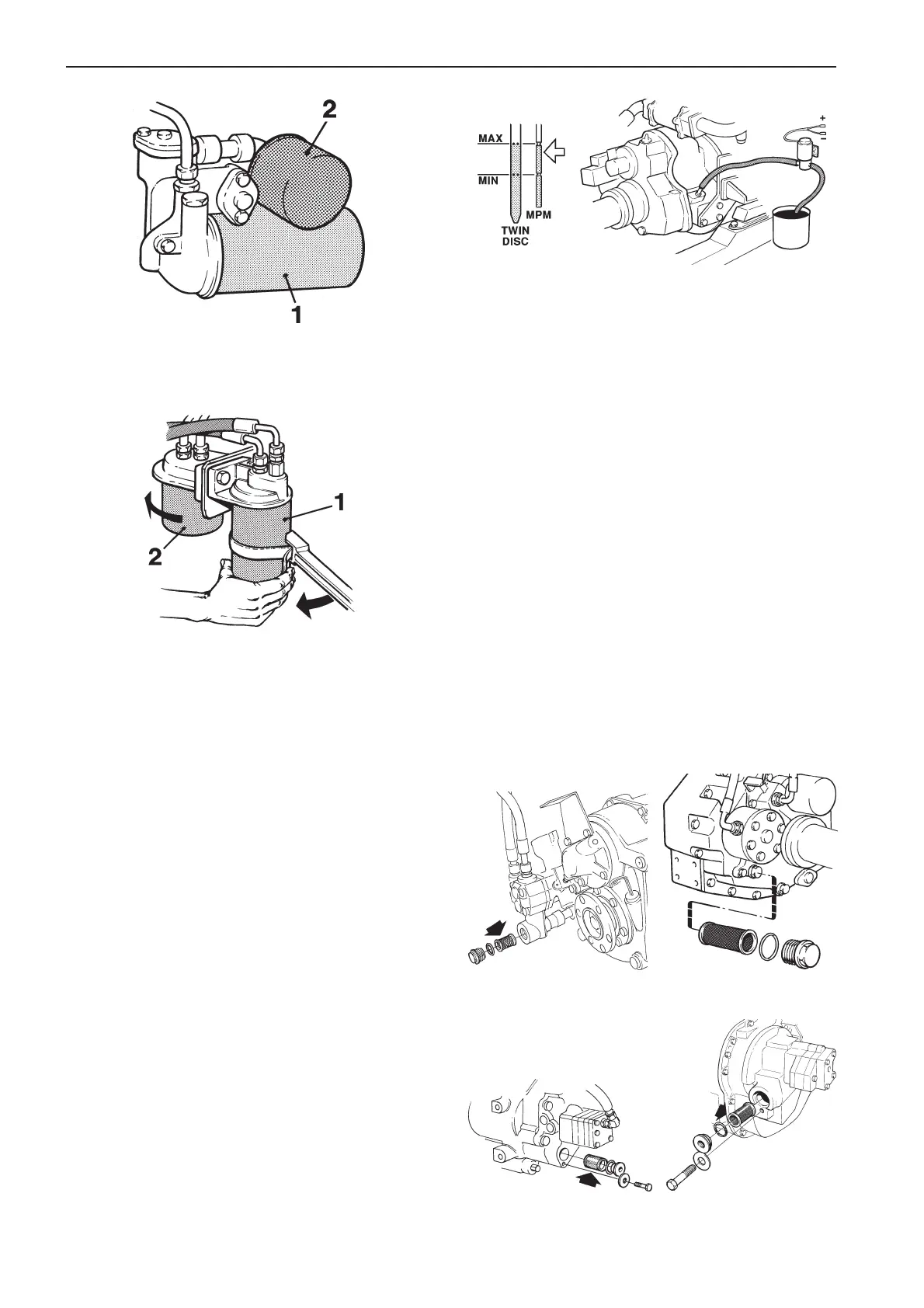

Cleaning the reverse gear’s oil screen
MPM IRM 220A MPM IRM 301A
TD MG5061, -5062V TD MG507(A)-1
TAMD63
1. Engine oil filter
2. By-pass filter
TAMD71 and TAMD72
1. Engine oil filter
2. By-pass filter (accessory)
Oil Change – Reverse Gear
Connect a hose from the oil scavenging pump to the
oil dipstick tube on the reverse gear. Alternatively,
drain the oil by removing the drain plug.
See also instructions under Oil change – Engine
1. Fill with oil through the filler on the top of the re-
verse gear. For oil quality and capacity, see
“Technical Data” on pages 98–100.
