TAMD71, TAMD72WJ

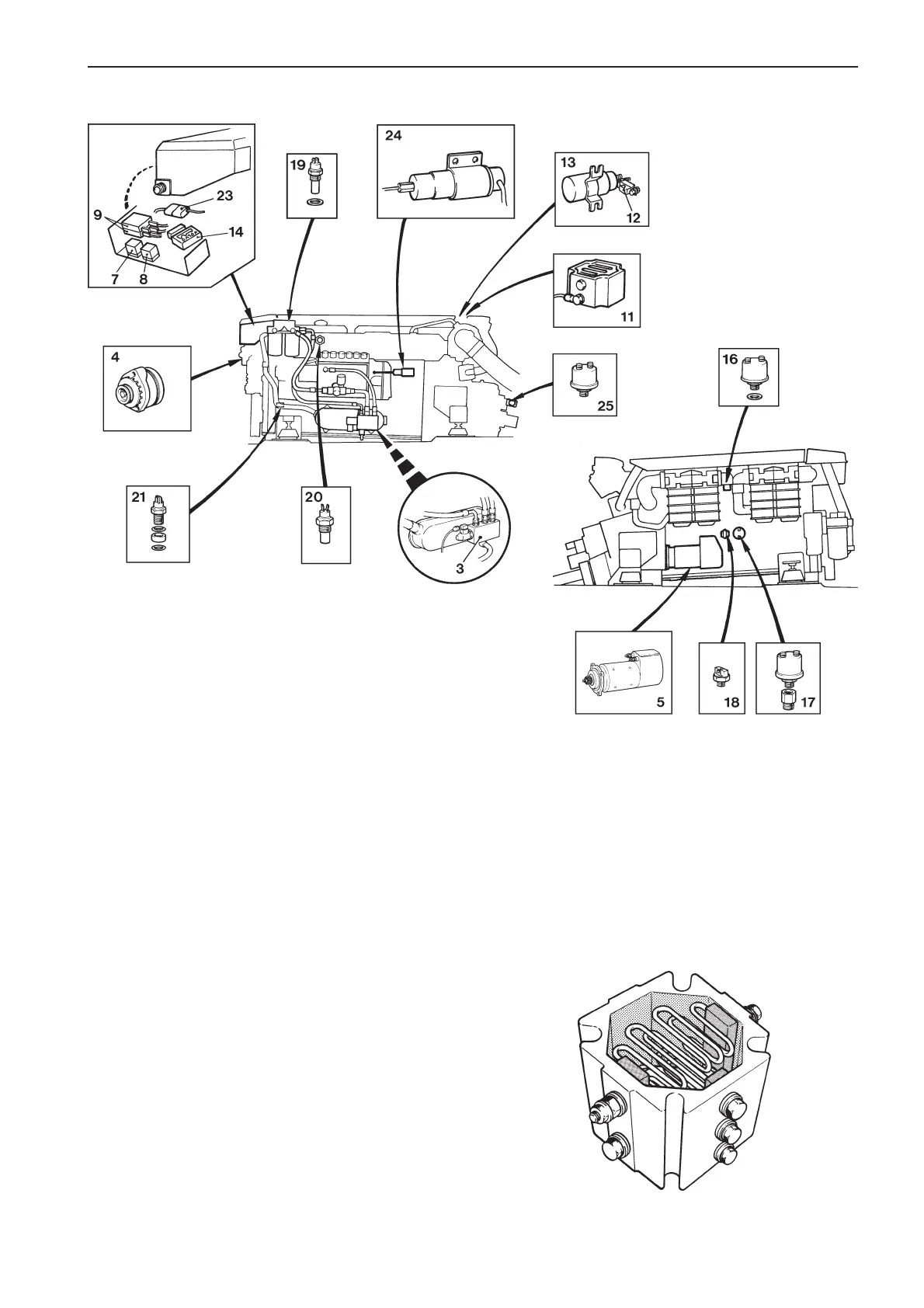

Note: The components in the figures are numbered the same

as in the engine’s wiring diagrams on pages 73, 75 or 77.

3. Solenoid valve (fuel shut-off 16. Pressure sender, turbo pressure

valve)* 17. Oil pressure sender, engine

4. Generator (GEN) 18. Oil pressure switch, engine

5. Starter motor 19. Engine coolant temperature

7. Stop relay (ECT) sender

8. Starter relay 20. Engine coolant temperature

9. Semi-automatic fuses (ECT) switch

11. Starter element** 21. Engine speed (RPM) sender

12. Fuse for starter element** 23. Fuse for stop solenoid

13. Relay for starter element** 24. Stop solenoid***

14. Time relay**

15. Oil pressure sender, reverse

gear

* As of and including engine No. 207181084/xxxx

** The TAMD72WJ has neither a starter element nor a time relay

*** Up to engine No. 207181083/xxxx

Starter element

The starter element heats the inlet air to the engine.

This element comprises three wire elements con-

nected in series and mounted in a connecting pipe,

and is located between the turbocharger and the en-

gine’s inlet manifold. The element is engaged auto-

matically when the starter key is turned to/passes the

preheating position (II). This sends a voltage pulse to

a time relay, which in turn controls engagement of

the element via a control relay. The engagement

time is approx. 50 sec.

See wiring diagrams on pages 73 and 75.
