Auxiliary panel
1. Instrument lighting
2. Oil pressure gauge, reverse gear
3. Turbo charging pressure gauge
4. Connection to instr. light. on main panel
5. Connection to printed circuit card on main
panel
6. Connection to connector (18) on main panel
Cable color
BL = Blue R = Red
LBL = Light blue SB = Black
BN = Brown TRANSP.= Transparent
LBN = Light brown (colorless)
GN = Green VO = Violet
GR = Gray W = White
OR = Orange Y = Yellow
PU = Purple
Conversions mm
2
/AWG*
*American Wiring Gauge
mm
2
1.0 1.5 2.5 10 16
AWG 16 (17) 15 (16) 13 7 5
Engine

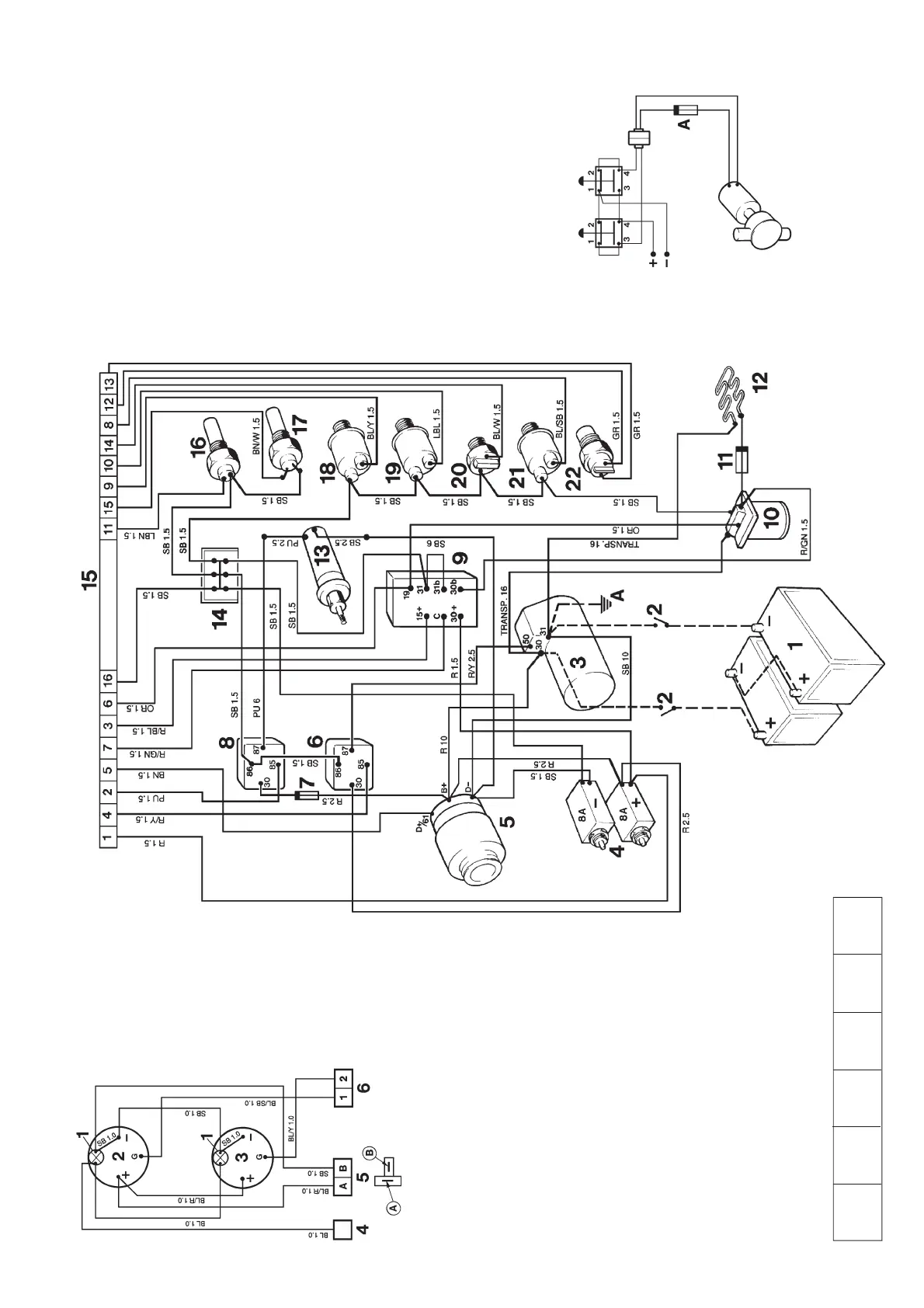

Note: The components in the wiring diagram
have the same numbers as shown in the key
diagrams on page 61.
1. Battery
2. Main switch
3. Starter motor
4. Semi-automatic fuses (8A)*
5. Generator (GEN)
6. Starter relay
7. 8A or 16A fuse for stop solenoid (24V
or 12V system voltage)*
8. Stop relay
9. Timer relay* (TAMD72 accessory)
10. Starter element relay (accessory on
TAMD72)
11. Fuse (150A) for starter element (accessory
on TAMD72)
12. Starter element (TAMD72 accessory)
13. Stop solenoid
14. Ground terminal block*
15. 16-pin connector
16. Engine coolant temperature (ECT) sender
17. Engind coolant temperature (ECT) switch
18. Pressure sender, turbo pressure
19. Oil pressure sender, engine
20. Oil pressure switch, engine
21. Oil pressure sender, reverse gear
22. Engine speed (RPM) sender
*Located in the junction box
A. Conn. 31 grounded in single pole system.
Suggested connection of oil scavenging
pump (draining and filling)
Cable area 1.5 mm
2
.
A. Fuse (8A/24V, or 15A/12V)
To Next Page
