Group 28 Ig nit ion sy stems
Fault tra
ci ng , EZ·1 02 K
1 39 811
1 39 a l a
1 36
Symptom: Engine does not start
Fault tracing

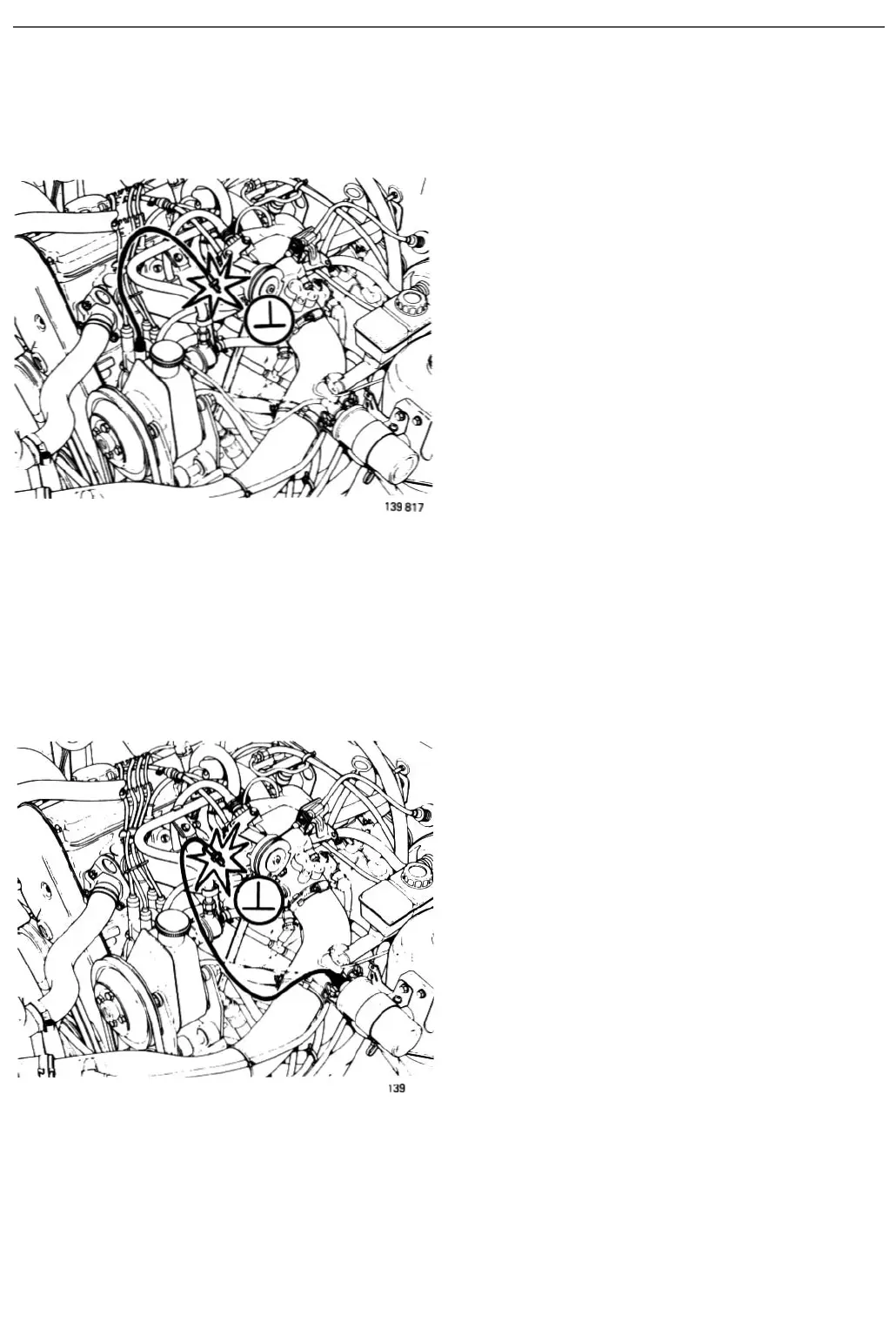

First check whether or not the fault is in the igni t ion
system by checking for a spark at one of the plugs.
Disconnect a
plug lead. connect it to a spare plug and
operate
the starter motor .
N.B. Ensure sparking
does not take place in vicinity of
other wiring!
Spark present ?
Ves Engine or fuel system fault.
No Check for spark at i gnition coil:
Connect
an ignit io n lead and plug directly to
the coil . Ground the plug and operate the
starter motor .
Spark at ignition coil?
Y es Ch ec k rotor, dist ri bu tor c ap a nd HT l ea ds.
Co rr ect faults as required.
No I
gnition system fault.
Sw itch o
ff igni t ion.
