IMPACT
®
4000
12 13
Compass Calibration
Compass calibration is important for the accuracy
of Wind Bearing Capture Mode. Read steps 1-5 of
“Calibrating the Compass and Inclinometer” section
before performing the following steps. The Impact
®
4000 needs to be calibrated during initial setup and
should be re-calibrated every time you significantly
change location, typically 30 miles or more. Calibrate
your Impact
®
4000 outside and away from large metal
structures or objects.
Scan the QR Code below for links to video instructions
on how to calibrate the Impact
®
4000.
SCAN QR CODE TO GET STARTED
Important: Do not hit any buttons on the Impact
®
4000
during this process unless specifically instructed to do
so in the following steps.
Important: Remove the Impact
®
4000 from the rifle
before beginning the calibration process.

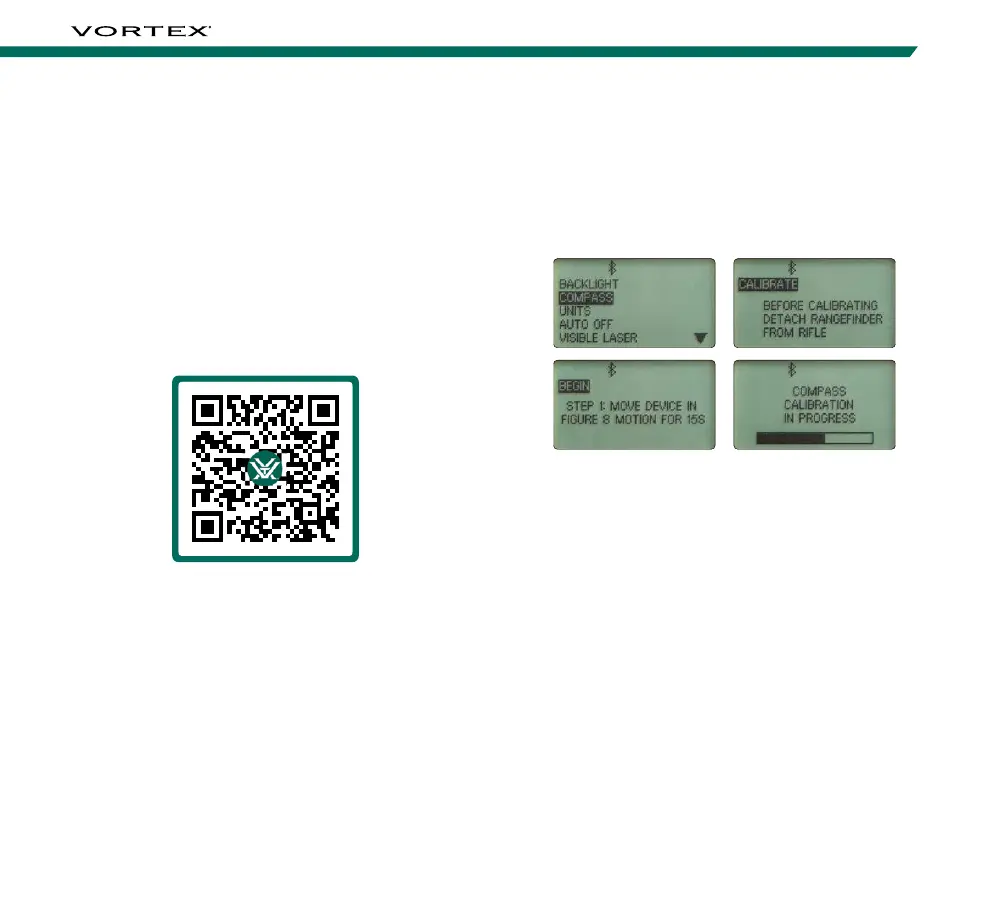

Calibrating the Compass and Inclinometer
To navigate to the Compass Screen, press the “Settings”
button. Navigate to and select “Settings” to open the
Settings Menu. Navigate to and select “Compass” to
open the Compass Screen. To begin calibration, select
“Calibrate” on the Compass Screen. Select “Begin” and
complete the following steps when prompted.
To Next Page
