VWR XT96 - Page 38

38 vwr.com I Instruction manual VWR
®
PCR Cycler XT
96

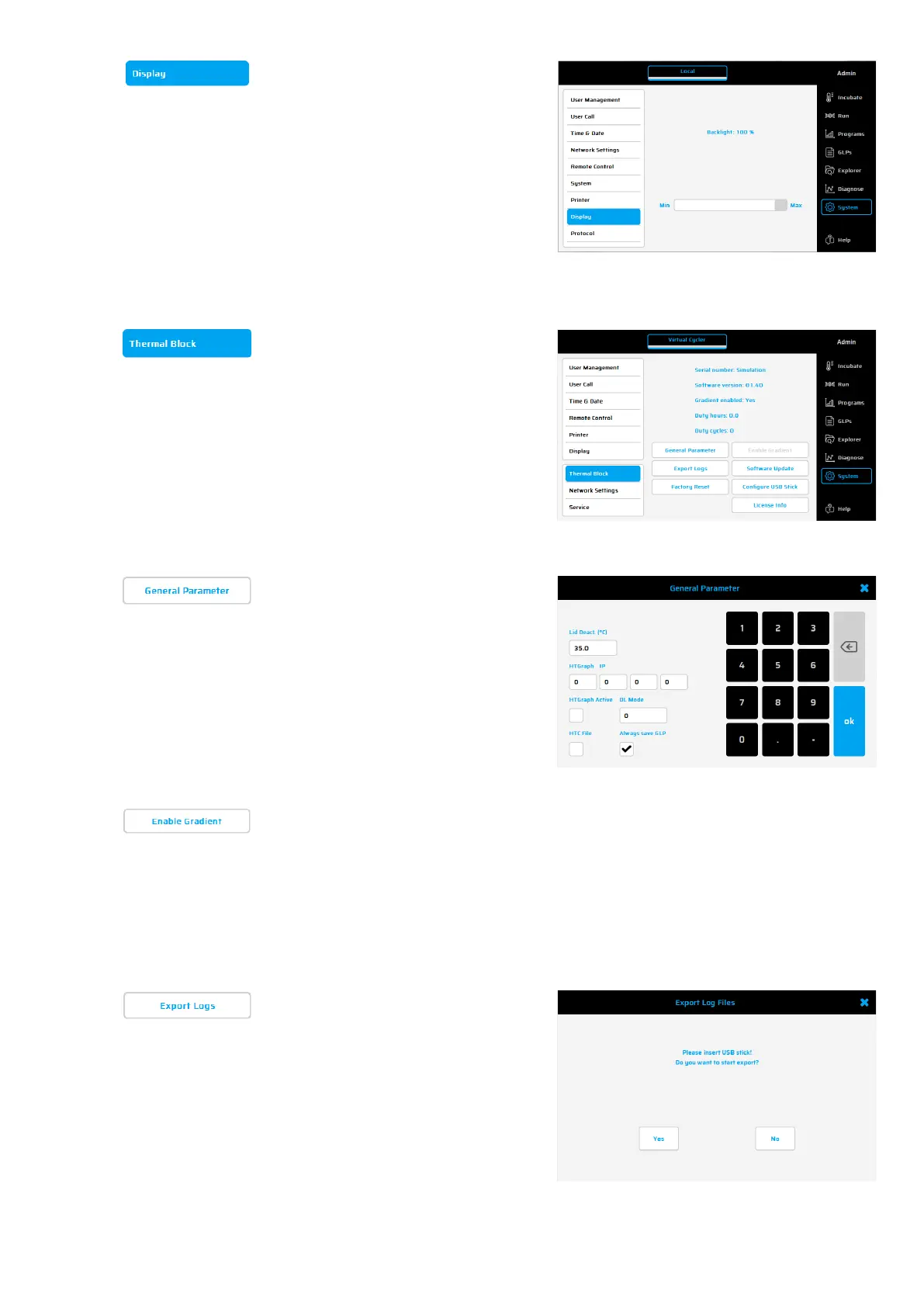

Display
Pushing this button, the adjoining
window opens:
By moving the roll bar, the backlight of
the display can be adjusted
Thermal Block
Shows the serial number of thermal
cyclers, the Software version,
if the
gradient function is already loaded
and
the duty hours / cycles of your device.
The following command buttons are
available:
General Parameter
This function is used to
change general
parameters as Lid deactivation
Temperature, sav
e GLP Files in general
or Calibration tools settings –
only for
service purposes.
Enable Gradient
Enables the gradient function on a non-
Gradient Thermal Cycler. Software key
can be ordered separately (732-
3482).
Please ask your local VWR partner.
Export Logs
For troubleshooting, the thermal cycler
can record its own internal
communication. The protocol files
can
be stored on a USB stick. By using the
button 'System Logs' the protocol files
will be zipped and saved on an
USB
stick.
