TEBS E
8
Installation notes
for vehicle installation and retrofitting
161

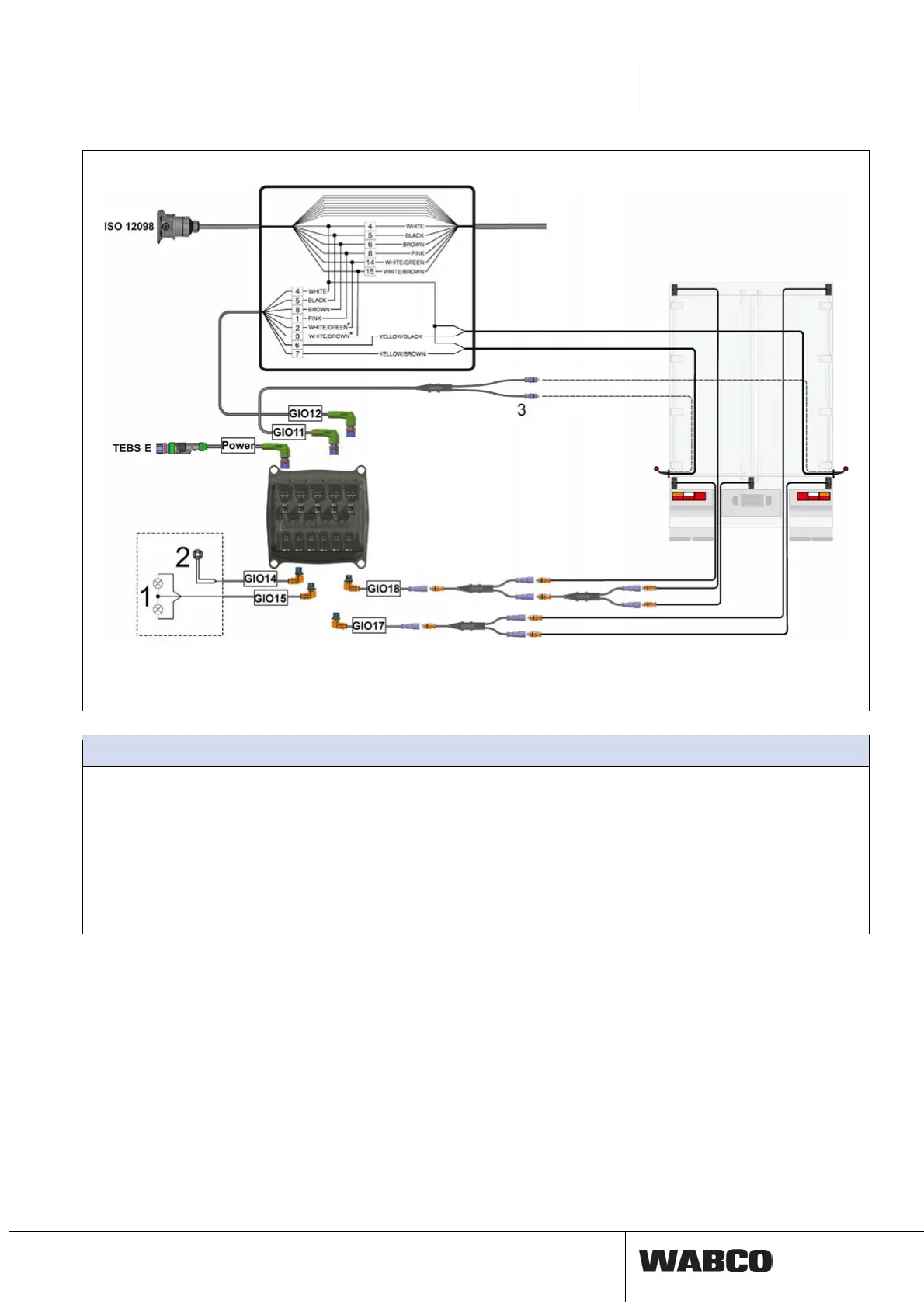

System configuration – TailGUARD
Roof
Diagram 841 802 283 0, see chapter 12.4 ‘GIO diagram’, page 210.
Wirin
g concept for junction box (function and colour table)
see chapter 7.1.2 ‘Connection from ISO 12098’, page 133.
Legend
1
External lights (optional)
2
Buzzer (optional)
*
CAN communication to towing vehicle (optional)
GIO11
Cable for clearance lights 449 803 022 0
GIO12
Universal cable 449 908 060 0
Alternatively Aspöck cable 65-6111-007
GIO14
GIO15
Universal cable 449 535 … 0
GIO17
GIO18
Cable for LIN ultrasonic sensor 449 806 060 0
POWER
Cable for ELEX supply 449 303 020 0
