Operation
3.21 Loading and transporting the machine
Loading and transporting instructions
• The transport vehicle must be of adequate size – refer to Chapter 6 “Specifications” for
the machine's dimensions and weights!
• Remove any mud, snow or ice from the tracks so that the machine can be safely driven
onto the ramps.
• Secure the machine against unintentional movement – see Stopping and parking the
machine on page 3-21!
Warning!
Improper loading and transporting can be hazardous.
• Always make sure to load and transport the machine properly.
• Read the safety instructions at the beginning of this chapter and follow
any other applicable safety instructions.
• It is essential that you read the safety instructions at the beginning of
this chapter and follow any other safety instructions relevant in your
country!
☞ Load as follows:
• Secure the transport vehicle with chocks to prevent it from rolling.
• Place the access ramps at the smallest possible angle. Make sure the grade does not
exceed 17° (30 %). Use access ramps with an antiskid surface only.
• Make sure the loading area is clear and access to it is not obstructed – e.g. by super-
structures.
• Make sure the ramps and the tracks of the excavator are free of oil, grease and ice.
• Start the engine of the excavator.
• Raise the bucket sufficiently so that it will not touch the ramps.
• Carefully move the excavator onto the middle of the transport vehicle.
• Lower the bucket to the loading area.
• Stop the engine.
• Fold the control lever base up.
• Remove the starting key.
• Do not allow anyone to stay in the cab, and close the doors and the engine cover.
Important!
The manufacturer's warranty shall not apply to accidents or damage caused by
loading or transporting the excavator.

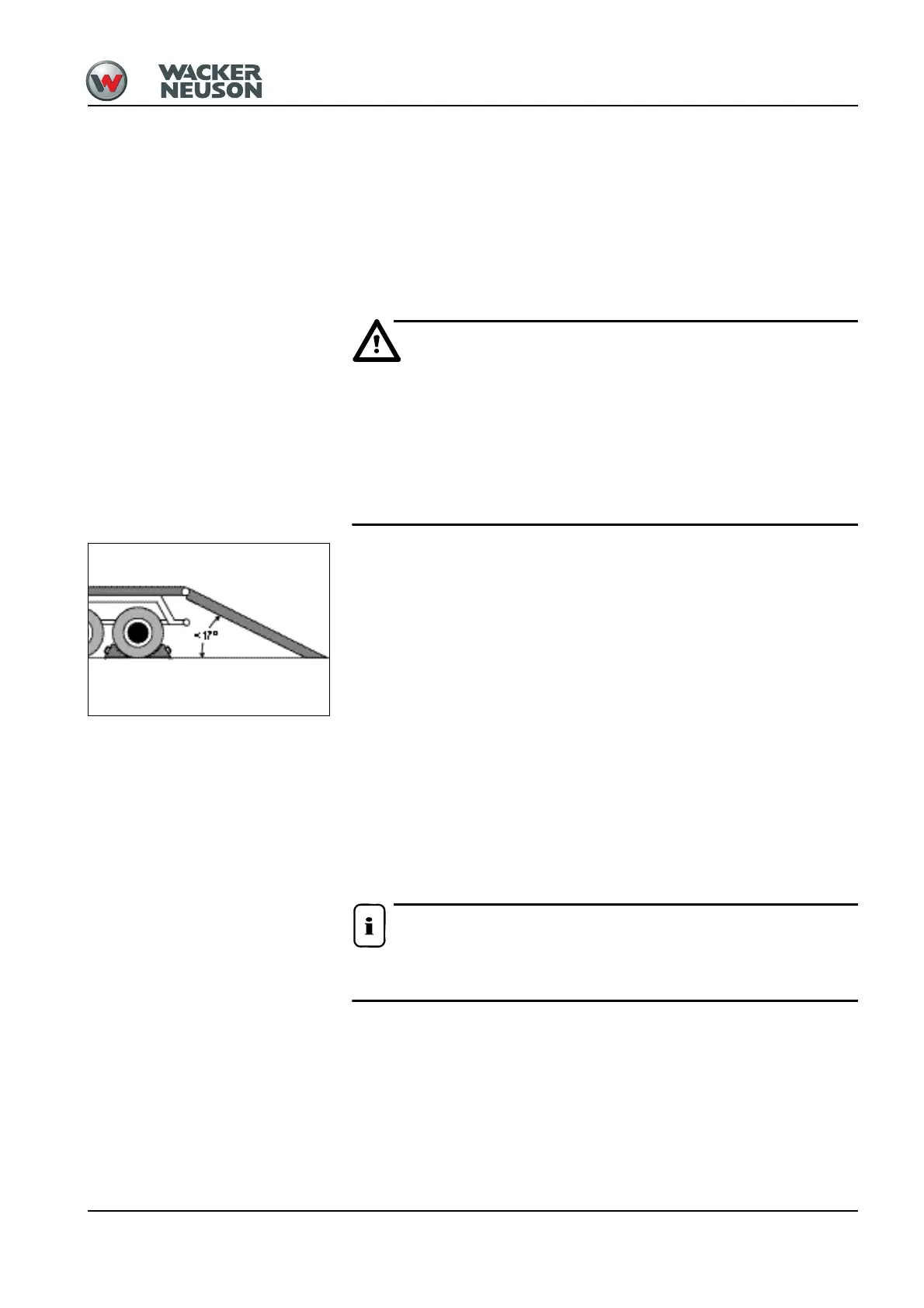

Fig. 42: Access ramps
