Operation
3.32 Powertilt (option)
Two versions are available:
• Powertilt with hydraulic quickhitch (option)
– see chapter 3.31 Hydraulic quickhitch (option) on page 3-60
• Powertilt welded onto an attachment.
Danger of crushing due to the rotating movements of the Powertilt unit.
Danger of severe crushing of body and of death!
☞ Do not allow anyone to stay in the danger area!
Do not put the Powertilt unit into operation unless:
☞ The machine is equipped with an acoustic and optical warning device – see
chapter 3.38 Safe load indicator (option) on page 3-75
☞ The machine is equipped with a hose burst valve – see chapter 3.35 Load
holding control valve (option) on page 3-68
☞ You read, understand and follow the instructions in the following chapter –
see chapter Applications with lifting gear on page 2-7
Important!
When using the Powertilt unit, the maximum bucket width is limited to 1200 mm.
1 Slewing range 180°
2 Load hook
3 Hydraulic connection 1/4”
4 Hydraulic connection 1/4”
5 Type label
Caution!
Welding work may be performed only by an authorized workshop or customer
service!

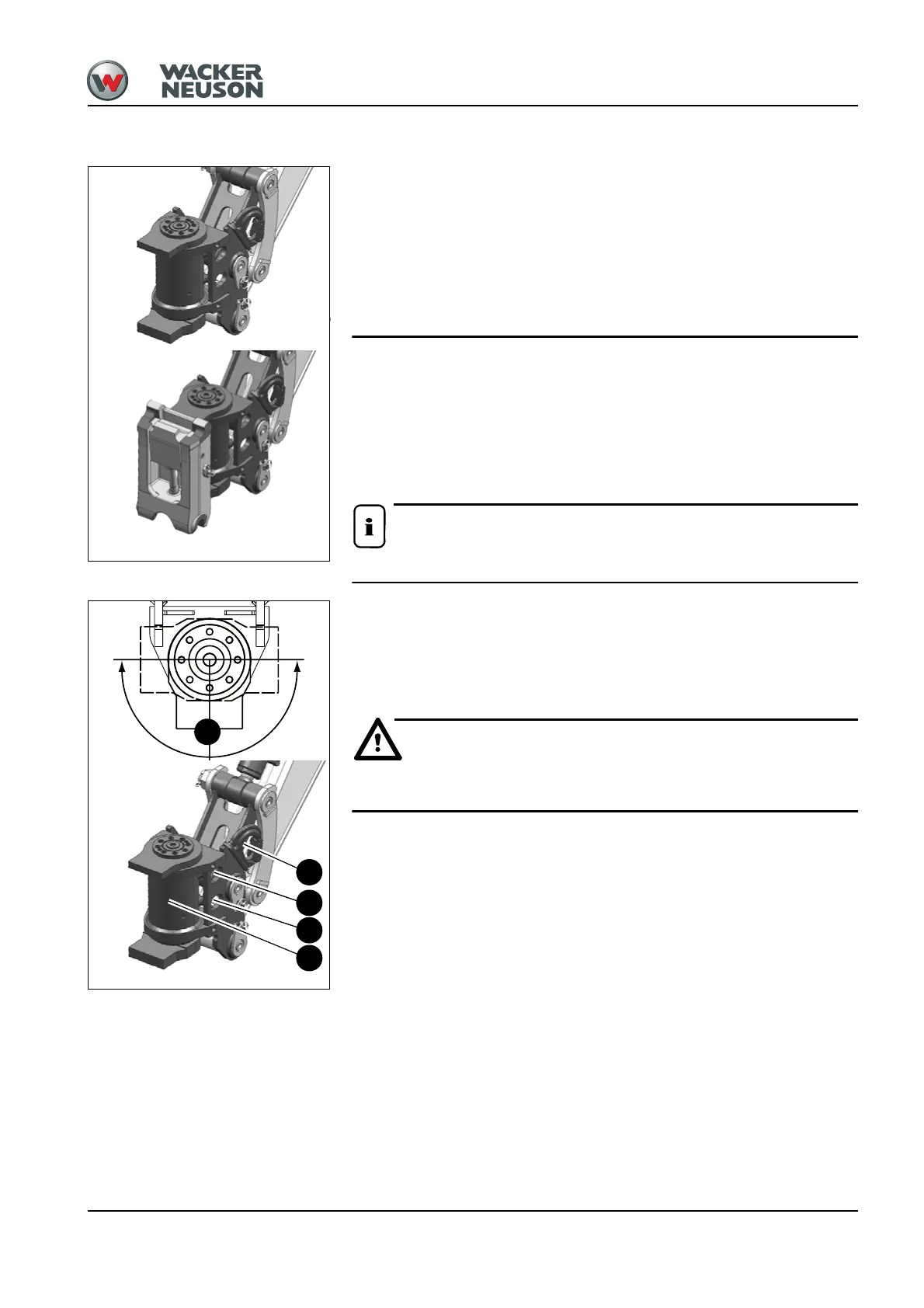

Fig. 83: Powertilt versions
Fig. 84: Powertilt overview
2
1
5
3
4
