1-16 Edition 1.0 * Supplementary Operator’s Manual for Protective Structures for Excavators
Supplementary Operator’s Manual for Protective Structures for Excavators
A shatter protection must be installed on a canopy version if an attachment (a
hammer, for instance) causes fragments to fly. Pay attention to the restricted
work range (see fig. 13 and 14).
Work area with shatter protection
Height of work area A: 120 cm (47 in).
Figures 13 and 14 refer to work with a Wacker Neuson hydraulic hammer.
Working with another attachment can modify the height of the work area.

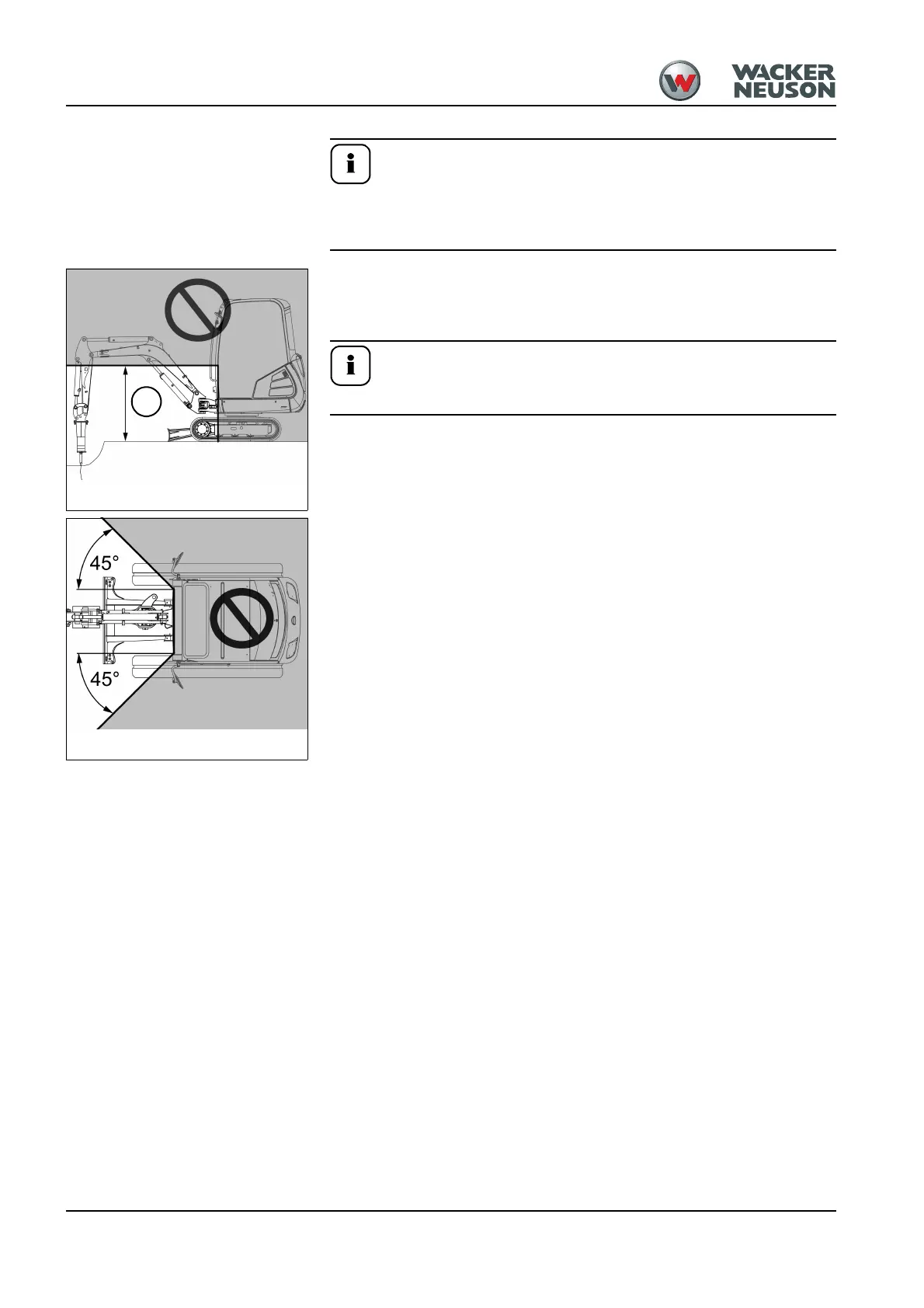

Fig. 10: Work area with shatter protection
A
Fig. 11: Work area with shatter protection (top
view)
