Introduction
Description
Hydraulic oil reservoir. Use hydraulic fluid only.
Location
On the filler cap.
Description
Explains the functions of the joysticks (control pattern ”A”) and of other controls. If the
machine is fitted with a “changeover valve”, check before starting the machine the control
pattern that has been chosen!
Location
On the cab roof.
Description
Shows the main maintenance intervals. For a complete list of the maintenance intervals,
see chapter “Maintenance” of the Operator's Manual.
Location
Cabin: on the rear window.
Canopy: on the right canopy wall.
Description
Explains the joystick functions (control pattern ”B”).
Check before starting the machine the control pattern that has been chosen!
Location
On the cab roof.

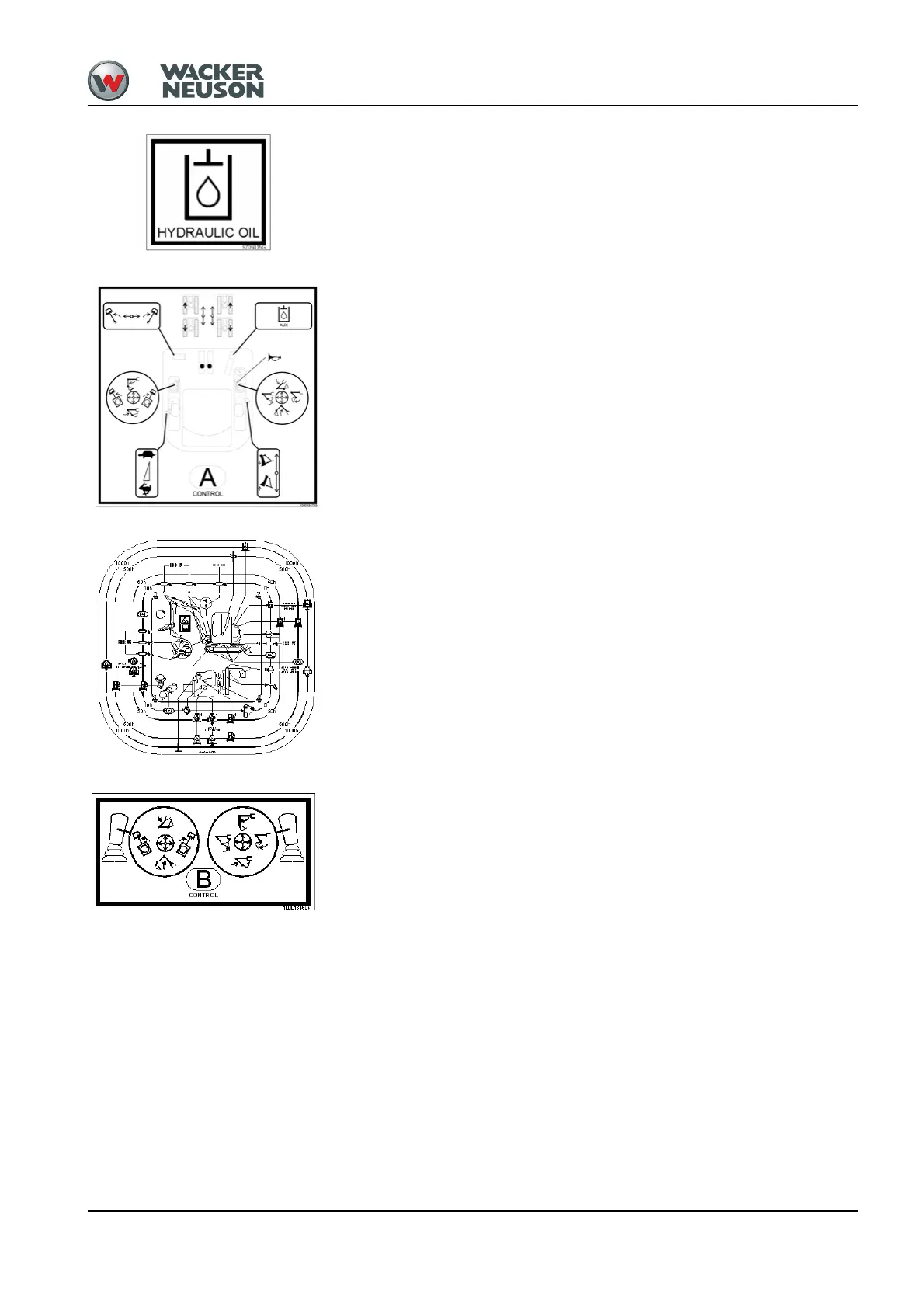

Fig. 32: Hydraulic oil
Fig. 33: Control pattern A
Fig. 34: Maintenance label
Fig. 35: Control pattern B (option)
