Wacker Neuson BS 50-4 Repair Manual

Engine and Upper Machine Components Repair
32 wc_tx001546gb.fm

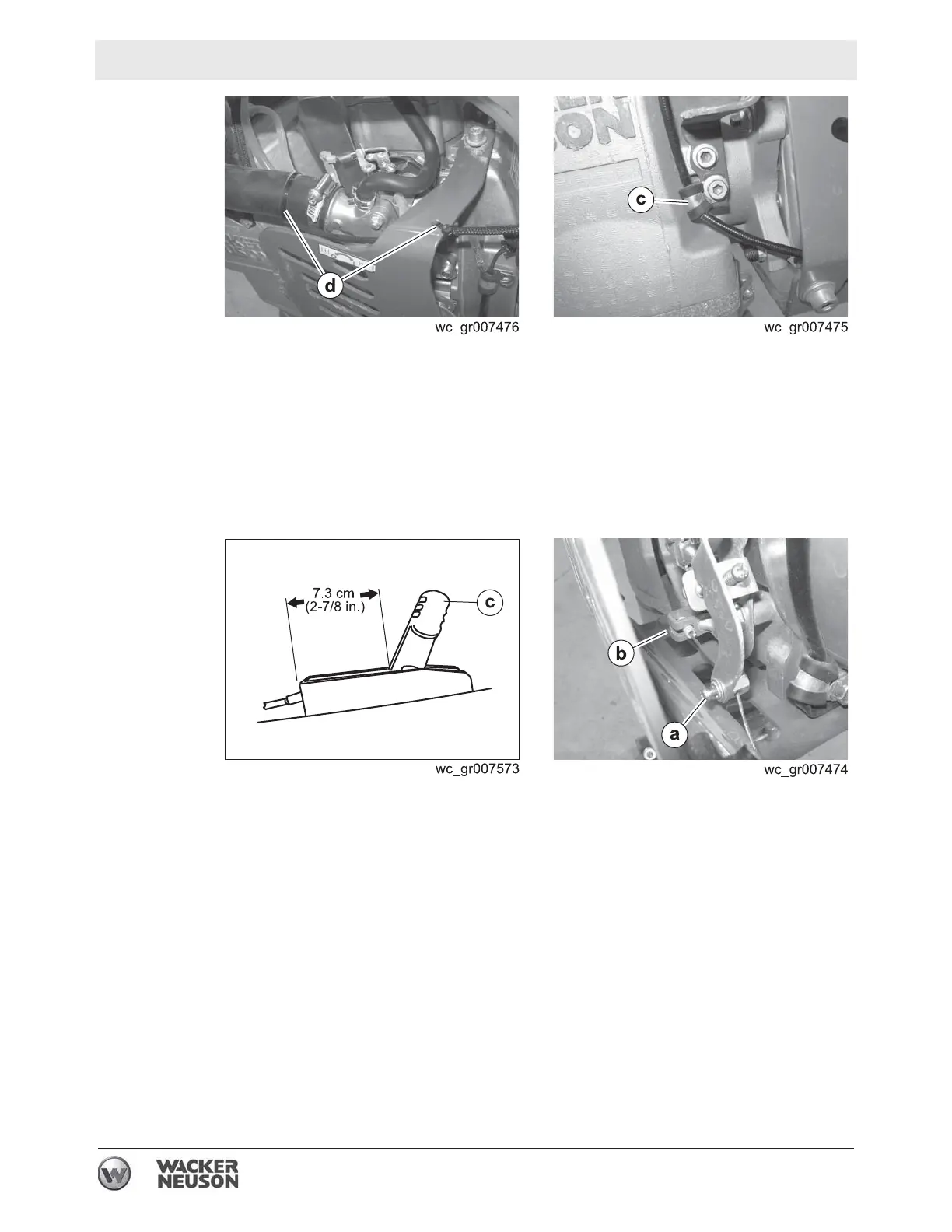

4.3.4 Install the clamp (c).
4.3.5 Connect the throttle cable to the carburetor. To do so:
e. Position the throttle control (c) 7.3 cm (2-7/8 in.) from the edge of
the control bracket.
f. Thread the throttle cable through the clamp
(b) and into the swivel
(a).
g. Pull the throttle cable taught and tighten the swivel screw.
h. Crimp the clamp
(b).
4.3.6 Reinstall the silencing cover.
Result
The replacement procedure is now complete.

Wacker Neuson BS 50-4 Specifications

General

Engine Manufacturer	Honda
Stroke Height	65 mm
Fuel Type	Gasoline
Centrifugal Force	15 kN
Sound Pressure Level	92 dB(A)
Sound Power Level	105 dB(A)
Height	965 mm
Ramming Shoe Size	280 mm
Tank Capacity	3.1 l
Fuel Tank Capacity	3.1 l
Engine Type	4-cycle, single-cylinder, air-cooled
Percussion Rate	680 blows/min
