5 Operation
ISO/SAE controls (option)
Accident hazard due to modified control lever operation!
Can cause serious injury or death.
► Ensure that you know which control mode has been selected before
starting work.
► Secure the wing nut on the changeover lever of the directional valve.
Do not operate the machine with a malfunctioning wing nut.
► Contact a Wacker Neuson service center and replace the
malfunctioning wing nut.
The directional valve is located at the left under the seat.
The ISO controls (A) and SAE controls (B) can be changed over with the
directional valve.
The function label for the controls is affixed on the roof window.

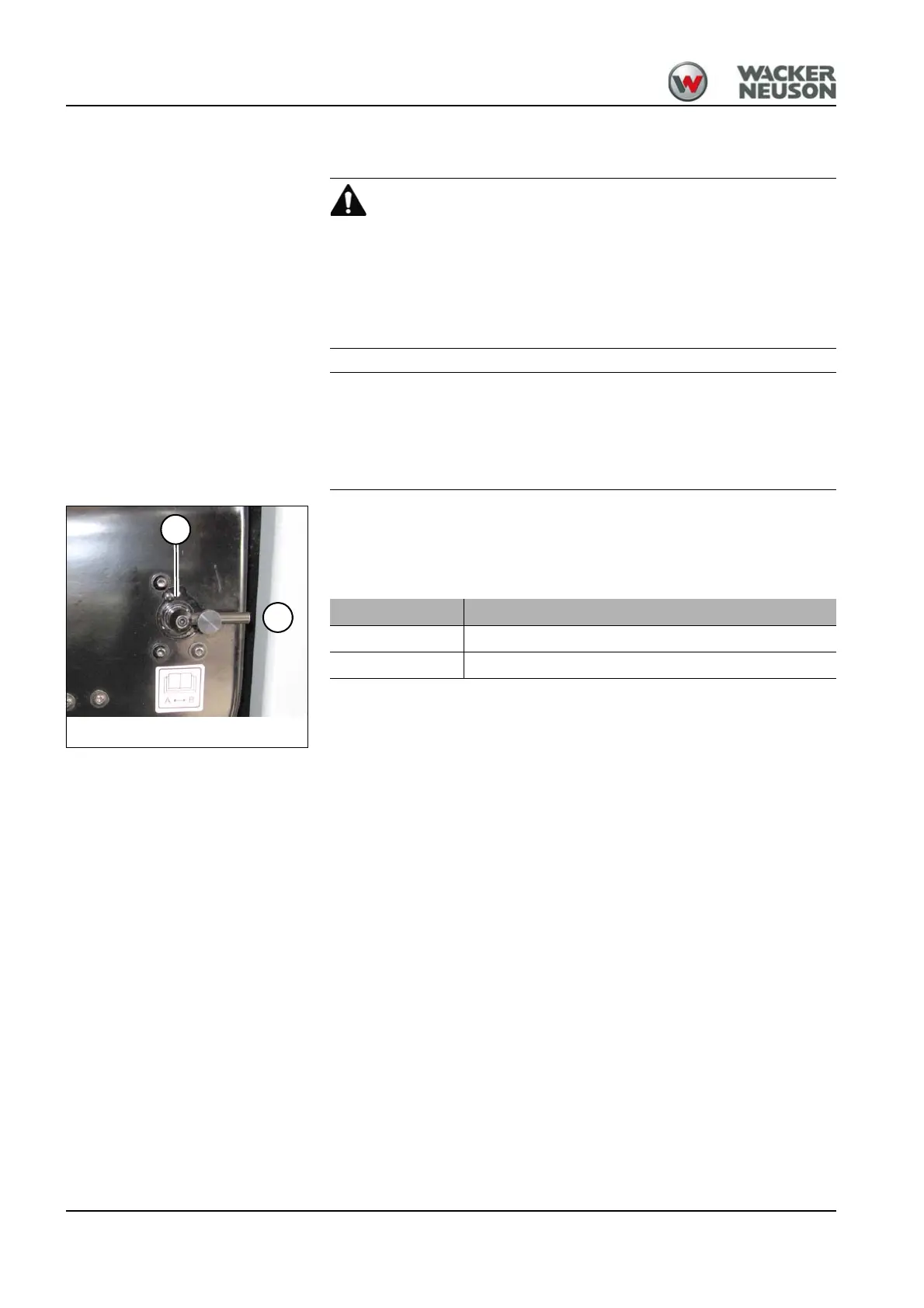

Fig. 144Directional valve
A
B
Wiring diagram Controls
AISO controls
B SAE controls
