Additional control circuits
3rd control circuit – AUX II (option)
Turn the rotary switch on the control lever base on the left to the required
position.
Operating the additional control circuit
Oil flow to line on the left:
Push slide switch 23 on the left-hand control lever to the left.
Oil flow to line on the right:
Push slide switch 23 on the left-hand control lever to the right.

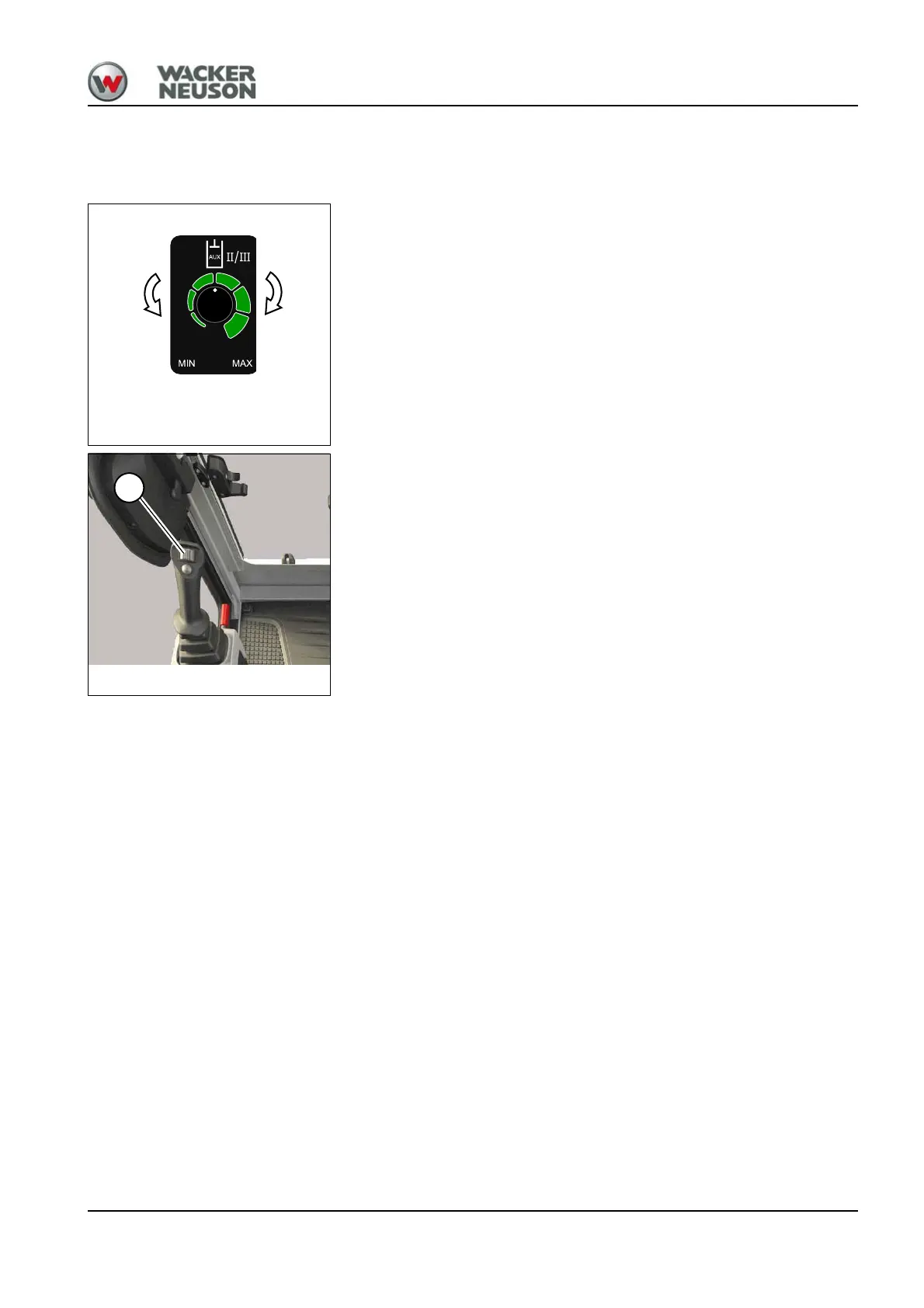

Fig. 175Setting the oil flow
Fig. 176Operating the additional control circuit
23
