5 Operation
➥ Check pin F must be fully extended.
➥ The attachment engages.
6. Release the dozer blade lever J and foot-operated touch button E .
➥ The quickhitch closes.
➥ Check pin F must be fully retracted.
7. Press switch D to position 2.
➥ The quickhitch is disabled and the buzzer does not sound any
longer.

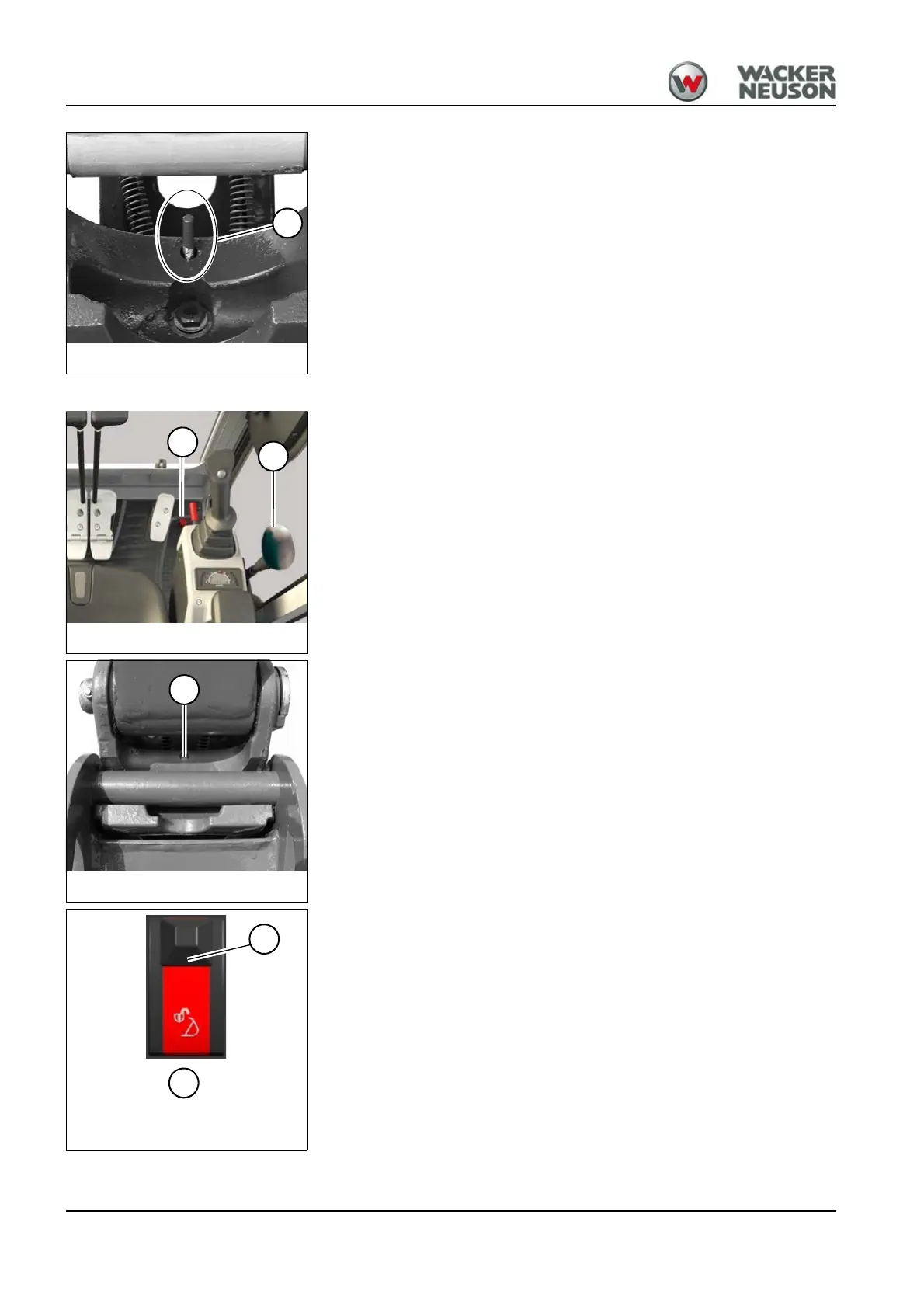

Fig. 183Extended check pin
F
Fig. 184Stabilizer blade operation
E
J
Fig. 185 Retracted check pin
F
Fig. 186Easy Lock switch
D
2
