Setting down an attachment
1. Move the attachment inward completely and position it at 5–10 cm (2–
4 in) above the ground.
2. Unlock switch D and press it to position 1.
➥ The quickhitch is enabled and the buzzer sounds.
3. Press and hold the foot-operated touch button E and at the same time
pull back the J dozer blade lever.
➥ The quickhitch opens.
➥ Check pin F must be fully extended.
4. Retract the bucket cylinder.
➥ The attachment is lowered to the ground.

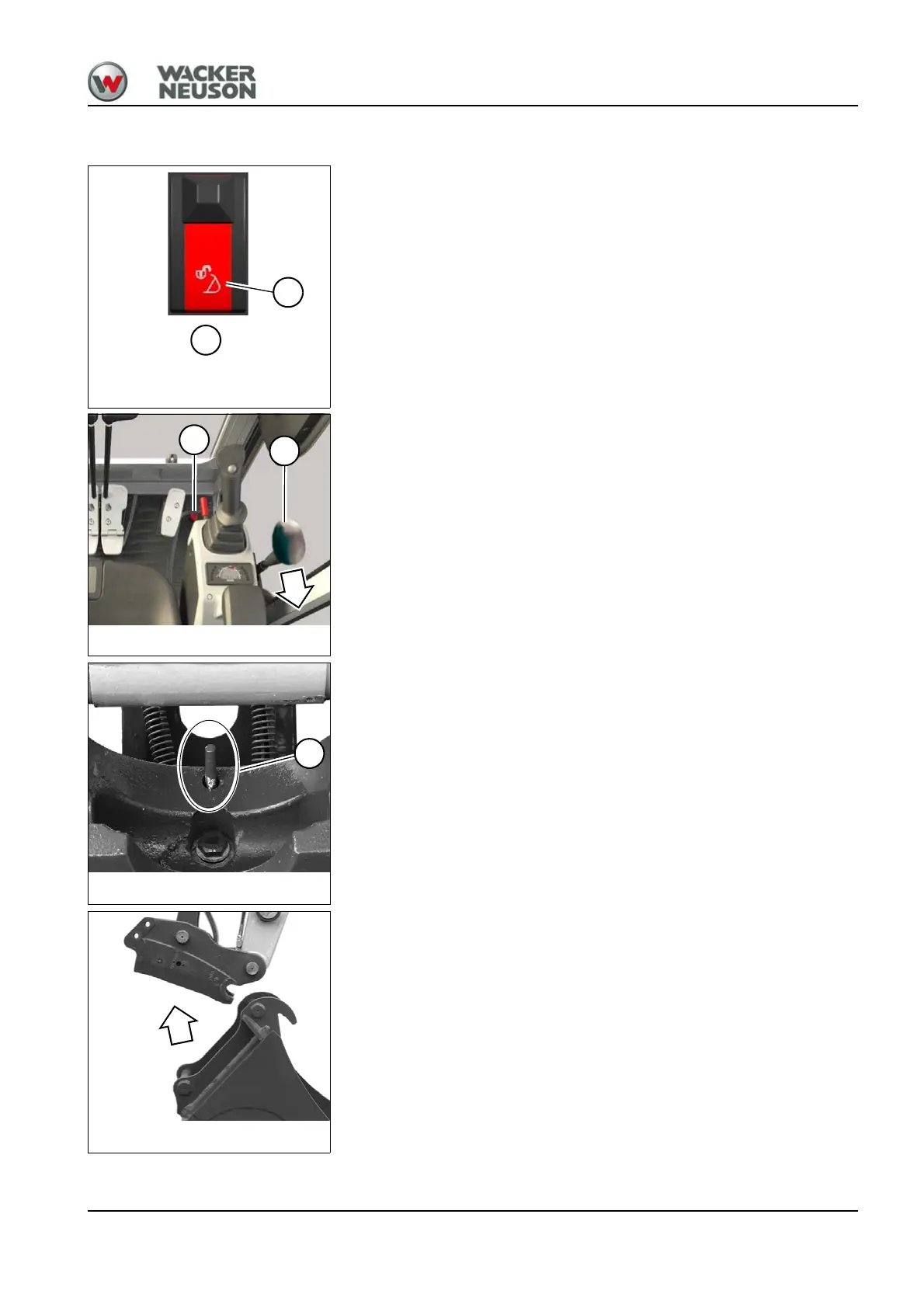

Fig. 187Easy Lock switch
D
1
Fig. 188Foot-operated push button and stabilizer-
blade lever
E
J
Fig. 189Extended check pin
F
