Meaning
Indicates the interval at a which lubrication point must be lubricated.
Lubrication points/grease zerks marked green mean: lubrication every 50
hours or once a week.
Lubrication points/grease zerks marked blue mean: lubrication every 10
hours or daily.
Position
On the upper carriage on the right in travel direction.
Meaning (option)
Indicates the lubrication points of the VDS tilt console.
Position
Upper part of front window.
Meaning
This label indicates the position in which the control levers are locked.
Position
Canopy: on the control lever bases on the left and right.
Cabin: on the control lever base on the left (standard) and on the control
lever base on the right (option).
Meaning
Fuses and relays.
Position
Behind the cover on the left, outside on the cover.

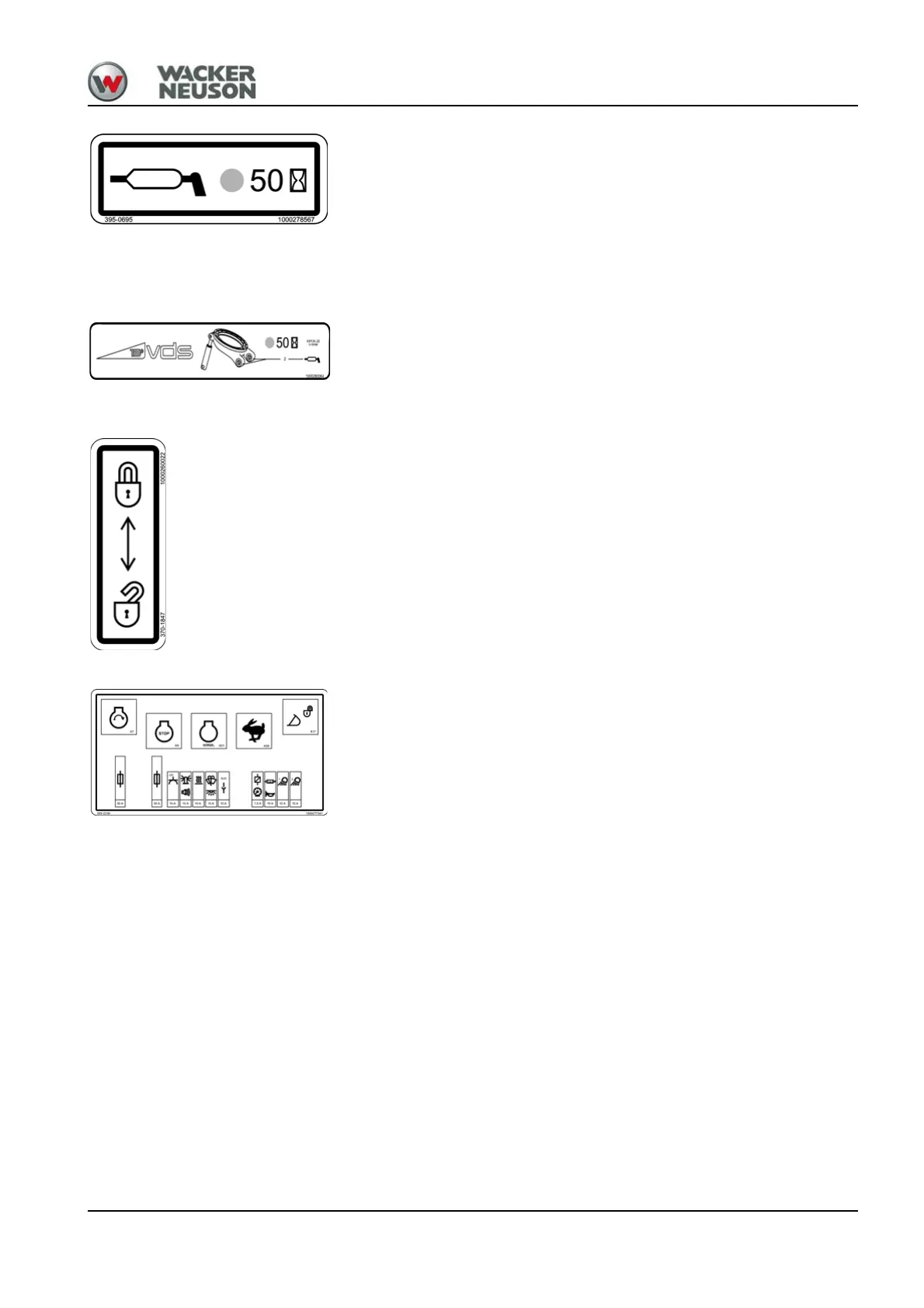

Fig. 34Lubrication point
Fig. 35VDS maintenance plan
Fig. 36Lock
Fig. 37Fuse box
