GPi
3200/4300
Operation

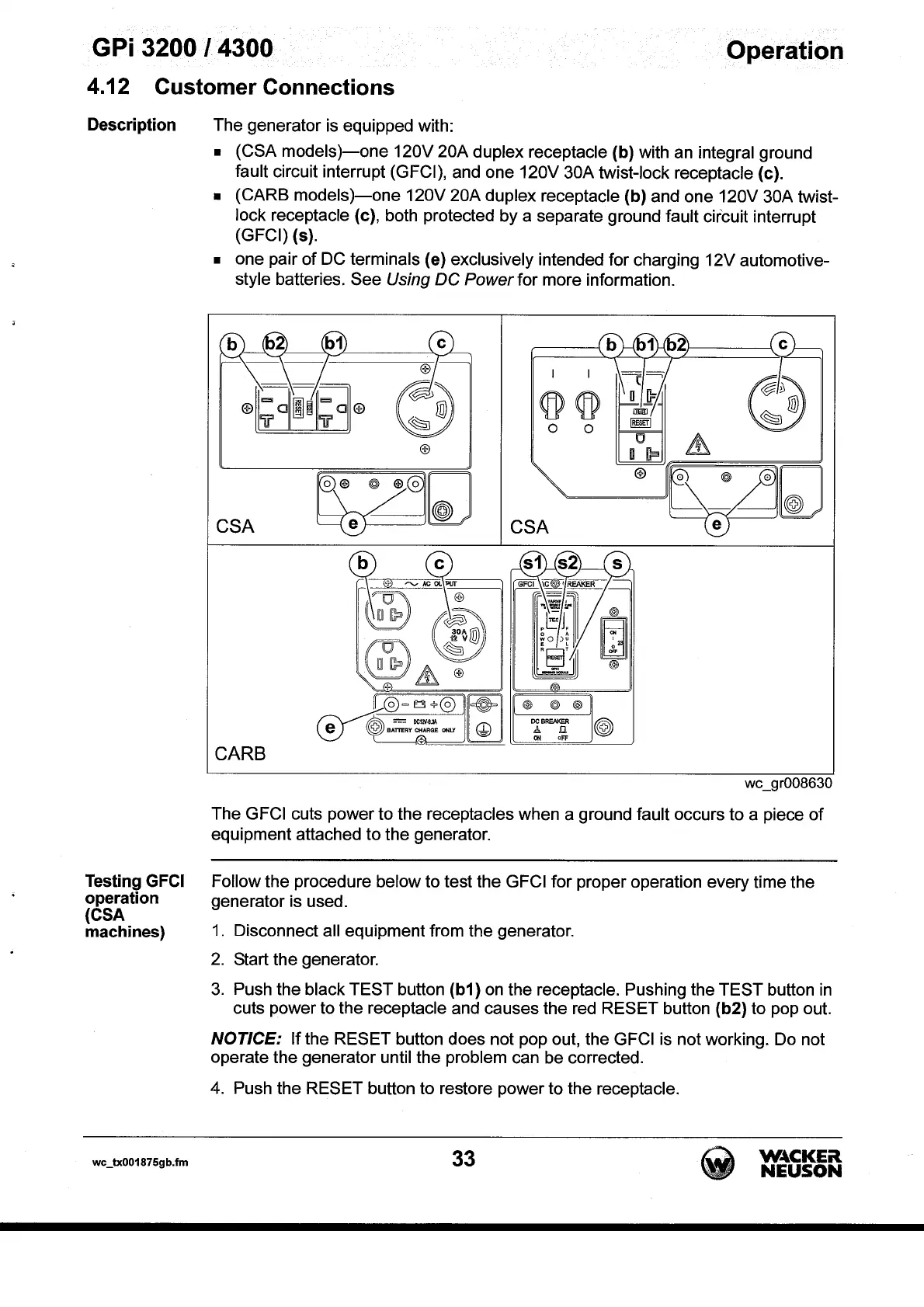

4.12 Customer Connections
Description
Testing
GFCI
operation
(CSA
machines)
wc_tx001875gb.fm
The generator is equipped with:
• (CSA
models)-one
120V 20A duplex receptacle (b) with an integral ground
fault circuit interrupt (GFCI), and one 120V 30A twist-lock receptacle (c).
• (CARB
models)-one
120V 20A duplex receptacle (b) and one 120V 30A twist-
lock receptacle (c), both protected by a separate ground fault circuit interrupt
(GFCI) (s).
• one pair of DC terminals (e) exclusively intended for charging 12V automotive-
style batteries. See Using DC Power for more information.
~
@@
RESET
0
0
0
&
®
I?
®
¥~
GSA
GSA
CARS
wc_gr008630
The GFCI cuts power to the receptacles when a ground fault occurs to a piece
of
equipment attached to the generator.
Follow the procedure below to test the GFCI for proper operation every time the
generator is used.
1.
Disconnect all equipment from the generator.
2.
Start the generator.
3.
Push the black TEST button (b1)
on
the receptacle. Pushing the TEST button
in
cuts power to the receptacle and causes the red RESET button (b2} to pop out.
NOTICE: If the RESET button does not pop out, the GFCI is not working. Do not
operate the generator
until the problem can be corrected.
4.
Push the RESET button to restore power to the receptacle.
33
