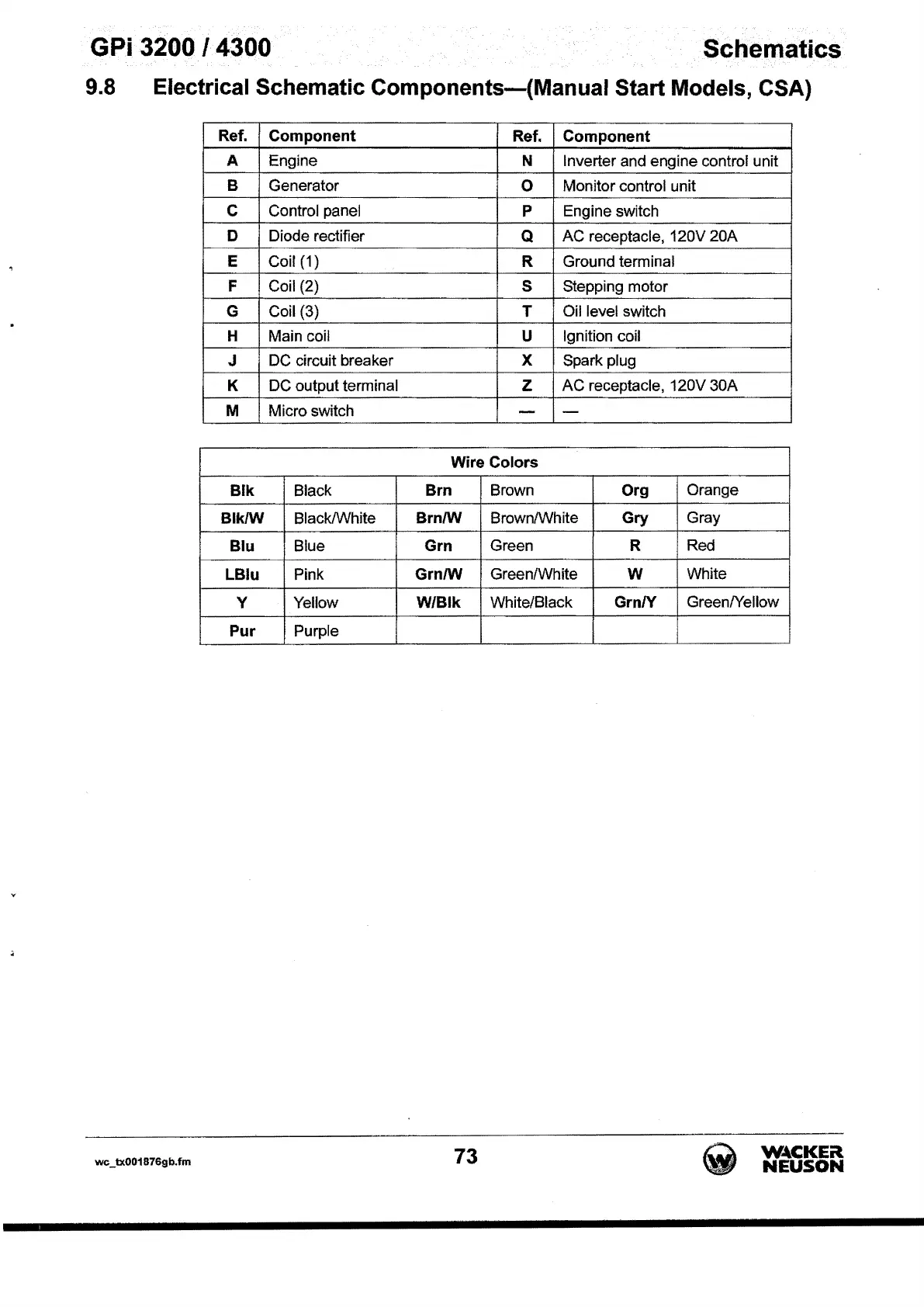

GPi 3200
/4300
Schematics
9.8
Electrical Schematic
Components-(Manual
Start Models, CSA)
Ref.
Component
A
Engine
B Generator
c
Control panel
D Diode rectifier
E
Coil (1)
F Coil (2)
G
Coil (3)
H Main coil
J
DC circuit breaker
K DC output terminal
M Micro switch
Blk
Black
Blk/W Black/White
Blu Blue
LBiu
Pink
y
Yellow
Pur
Purple
wc_tx001876gb.fm
Ref.
Component
N
Inverter and engine control unit
0
Monitor control unit
p
Engine switch
Q
AC
receptacle, 120V 20A
R Ground terminal
s
Stepping motor
T
Oil level switch
u
Ignition coil
X
Spark plug
z
AC
receptacle, 120V 30A
-
-
Wire Colors
Brn
Brown
Brn/W
Brown/White
Grn
Green
Grn/W
Green/White
W/Bik
White/Black
73
Org
Gry
R
w
Grn/Y
Orange
Gray
Red
White
GreenNellow
W.\CKEit
