Operation
Instruments and operating elements
68
BA RD24_RD28 en us 06
520 Seat adjustment weight
In order to absorb impulsive machine movements using the installed
attenuation system, this must be adjusted to the weight of the driver.
NOTE
The weight adjustment handle may only be pressed
downwards during weight adjustment.
The driver's weight can be adjusted in 9 steps between 50 kg and 130
kg. To reach the starting position (50 kg), the adjustment handle must
be pressed down against the stop. The weight adjustment switches then
automatically back to the starting position (50 kg).
521 Seat adjustment forward - backward
After lifting the lever, the upper part of the seat can be shifted in forward
or backward direction in increments of 15 mm.
522 Seat backrest adjustment
The inclination of the backrest can be adjusted after the lever has been
lifted by shifting the seat forward or backward.
525 Seat adjustment left - right
After lifting the lever, the entire seat console can be displaced to the left
or to the right.
Driver's seat, model C
WARNING
Uncontrolled movements!
Risk of injury due to uncontrolled movements when changing the seat
pedestal position.
■
Operate the machine only in an admissable seat position.
■
Only drive the machine with latched seat pedestal.
■
Do not adjust the seat pedestal during driving.
■
Adjust the seat pedestal only on an even surface.
002-41

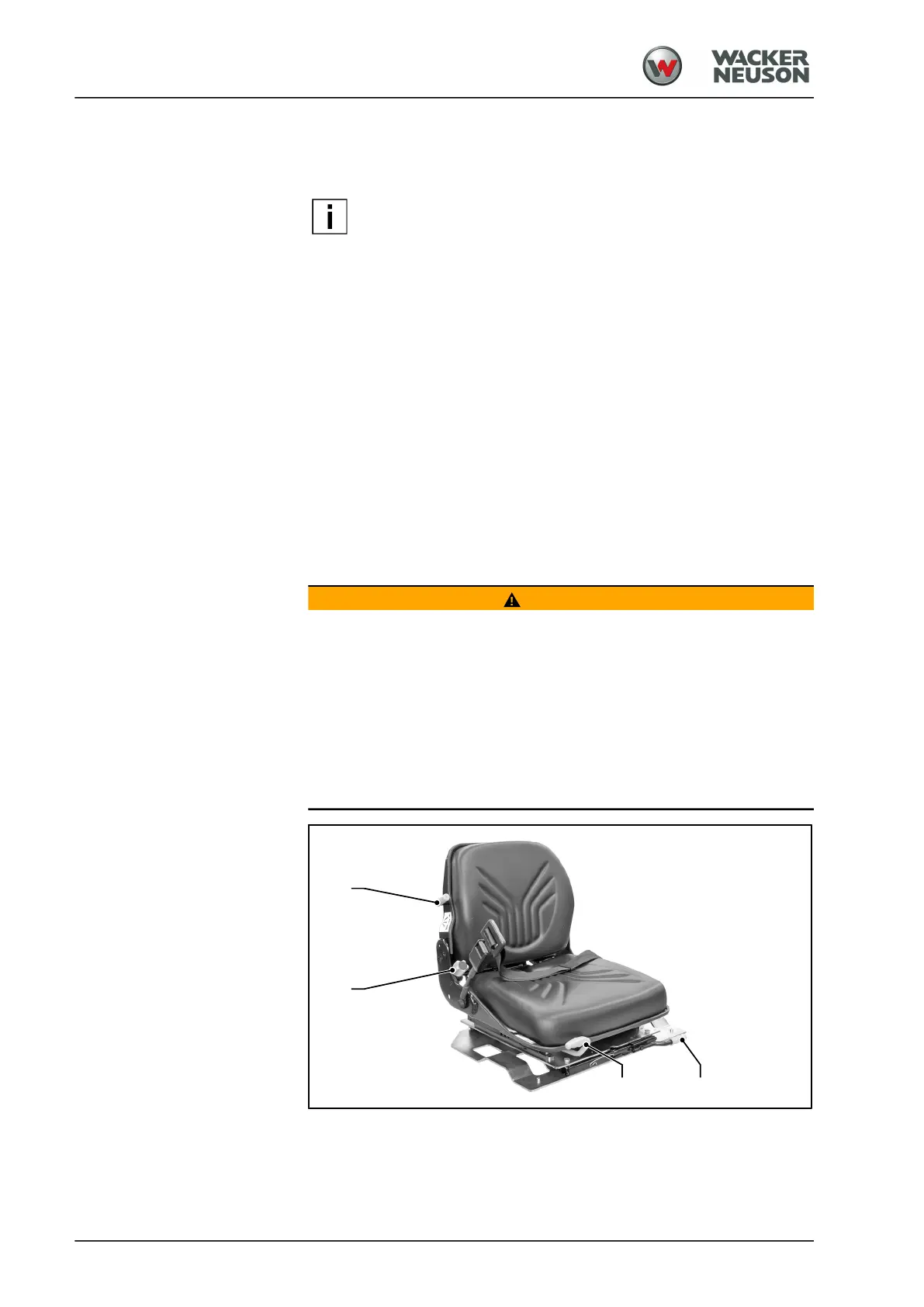

[520] Seat adjustment weight [521] Seat adjustment forward -
backward
[522] Seat backrest adjustment [525] Seat adjustment left - right
