WM 130/170/270 Repair Disassembly Procedures
wc_tx000379gb.fm 43
8.5 Removing Governor, Carburetor, and Speed Control Lever

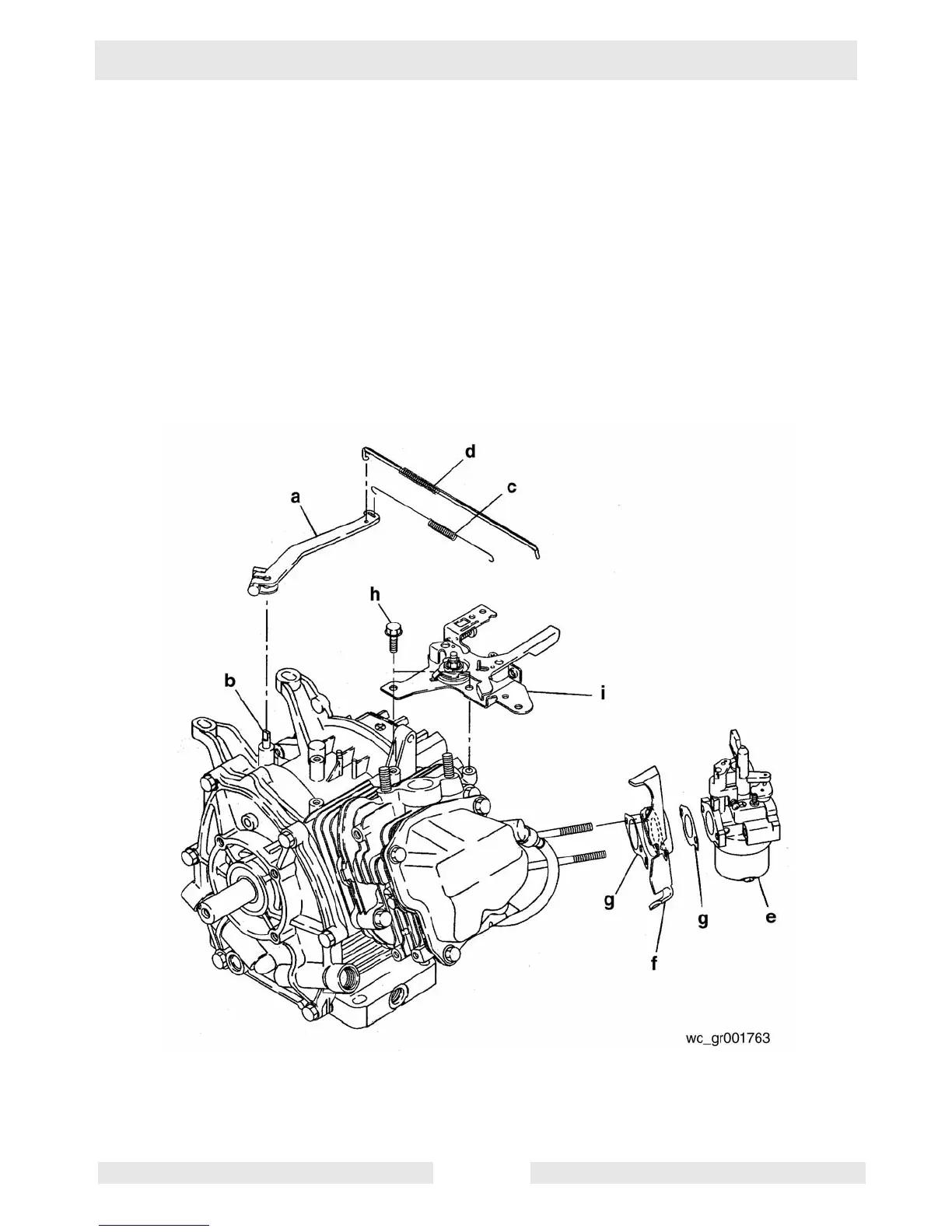

See Graphic: wc_gr001763
8.5.1 Loosen, but do not remove, the bolt securing the governor lever (a) to
the governor shaft (b).
8.5.2 Remove the governor spring (c).
8.5.3 Remove the governor rod and the rod spring (d).
8.5.4 Remove the carburetor (e) from the cylinder head. Also remove the
insulator (f) and the two gaskets (g).
8.5.5 Remove the M6 bolt (h) securing the speed control lever/bracket (i) to
the cylinder head and remove the speed control lever/bracket.
