WM 130/170/270 Repair
Reassembly Procedures
wc_tx000379gb.fm
75
9.28
Air Cleaner

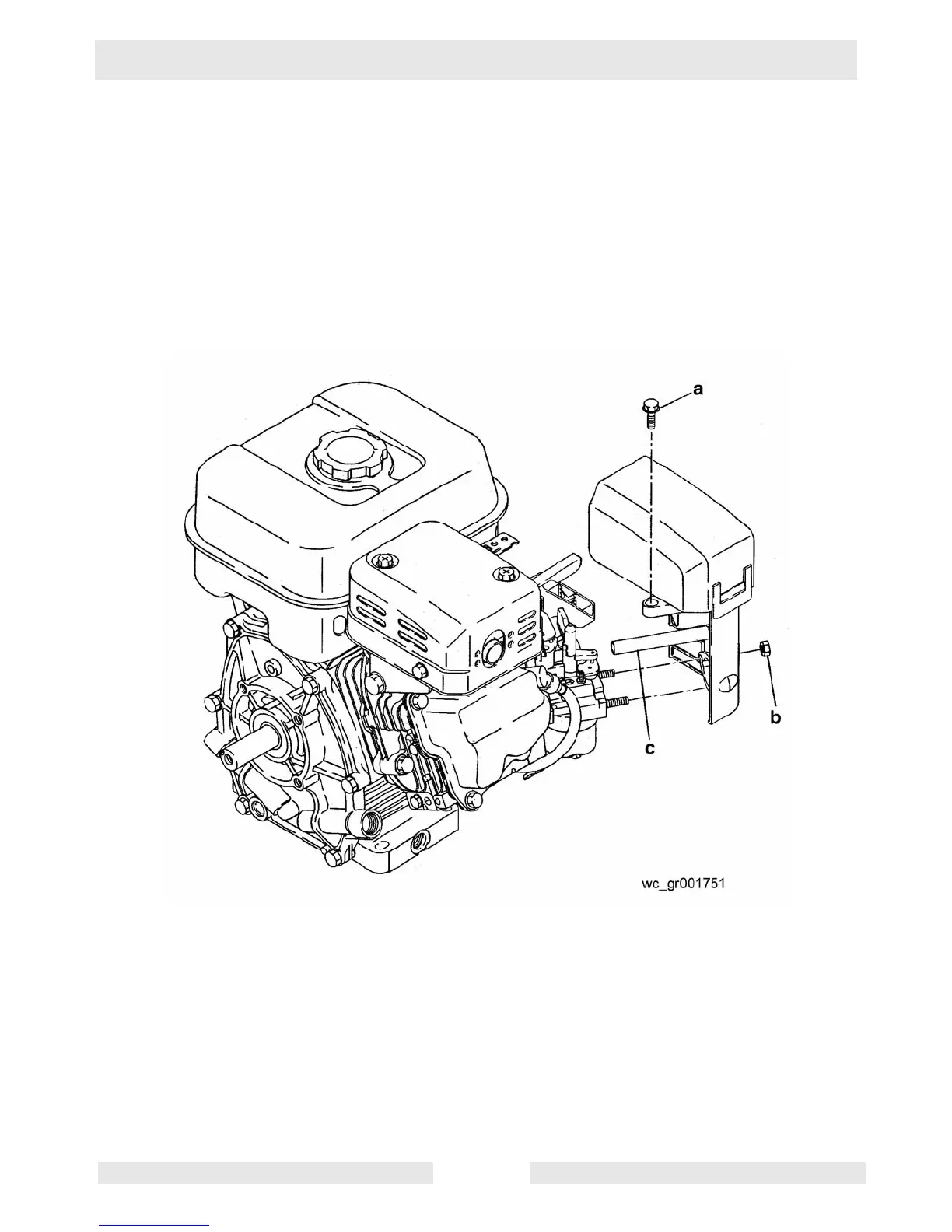

See Graphic: wc_gr001751
9.28.1
Insert the breather tube
(c)
into the rocker cover
while insta
lling the air
cleaner assembly
onto the engine.
9.28.2
Using one
M6 flange bolt
(a)
and two M6 flange nuts
(b)
, secure the air
cleaner assembly to the engine.
