WM 130/170/270 Repair Reassembly Procedures
wc_tx000379gb.fm 73
9.26 Blower Housing and Recoil Starter

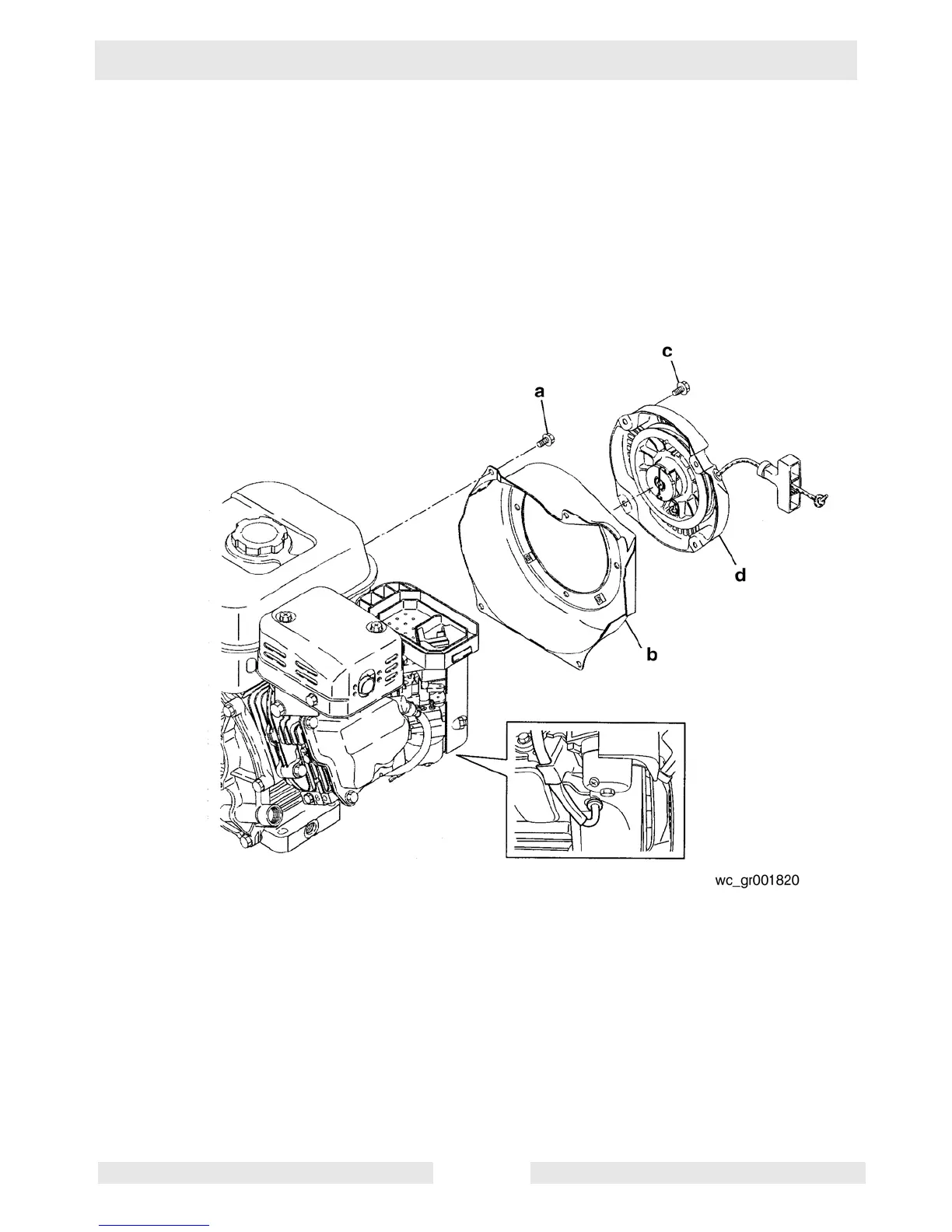

See Graphic: wc_gr001820
9.26.1 Mount the ignition coil cord on the crankcase by aligning it with the
case baffle.
9.26.2 Using four M6 x 12 bolts (a), mount the blower housing (b) to the
engine.
9.26.3 Using four M6 x 8 bolts (c), mount the recoil starter (d) to the engine.
