Disassembly Procedures WM 130/170/270 Repair
wc_tx000379gb.fm 48
8.10 Removing Tensioner and Camshaft

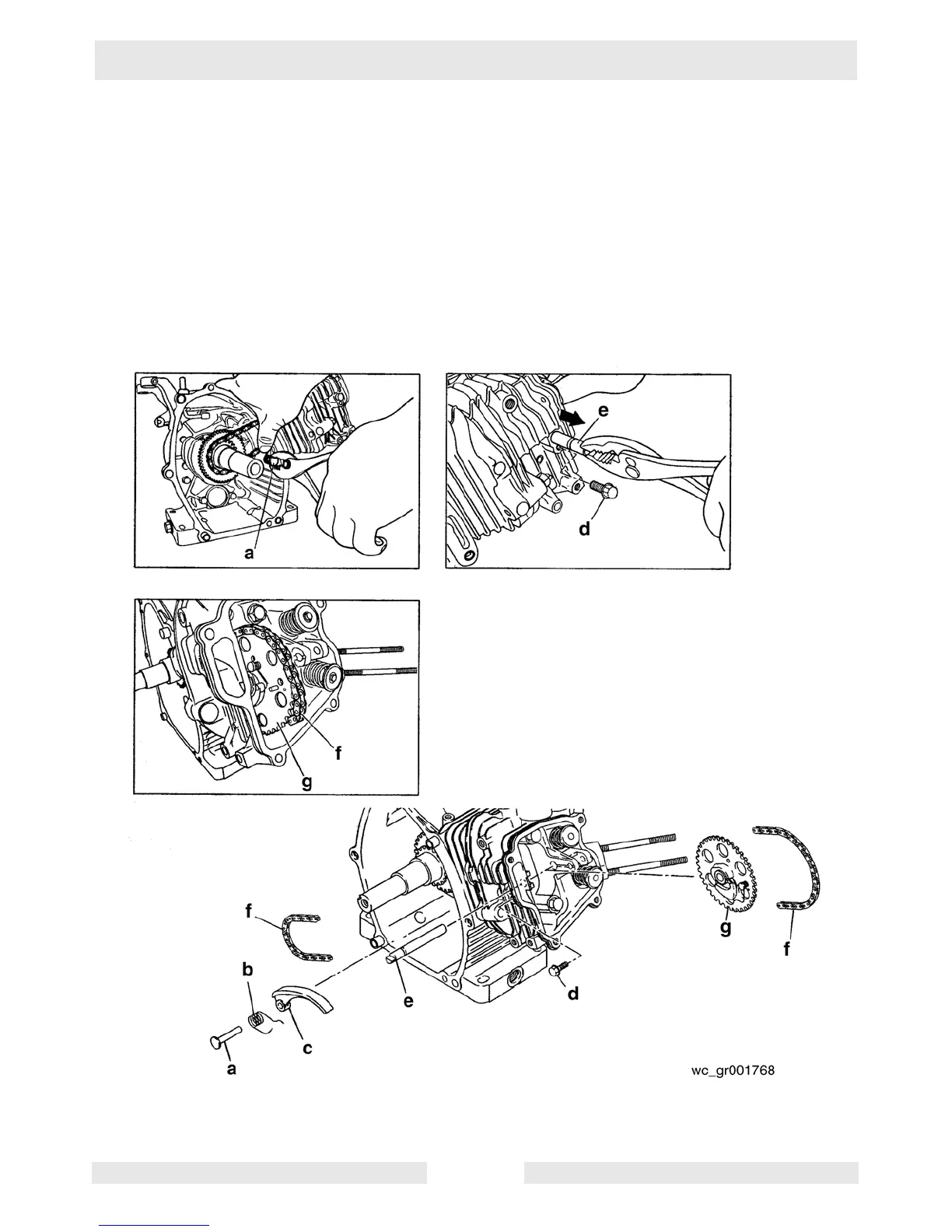

See Graphic: wc_gr001768
8.10.1 Remove the tensioner pin (a), tensioner spring (b), and the tensioner
(c).
8.10.2 Remove M6 camshaft pin retaining bolt (d). Remove the camshaft pin
(e). Be careful not to damage the pin’s O-ring.
8.10.3 Remove the chain (f) from the camshaft. Remove the camshaft (g).
8.10.4 Remove chain from crankshaft.
