WM 130/170/270 Repair Reassembly Procedures
wc_tx000379gb.fm 53
9.3 Crankshaft

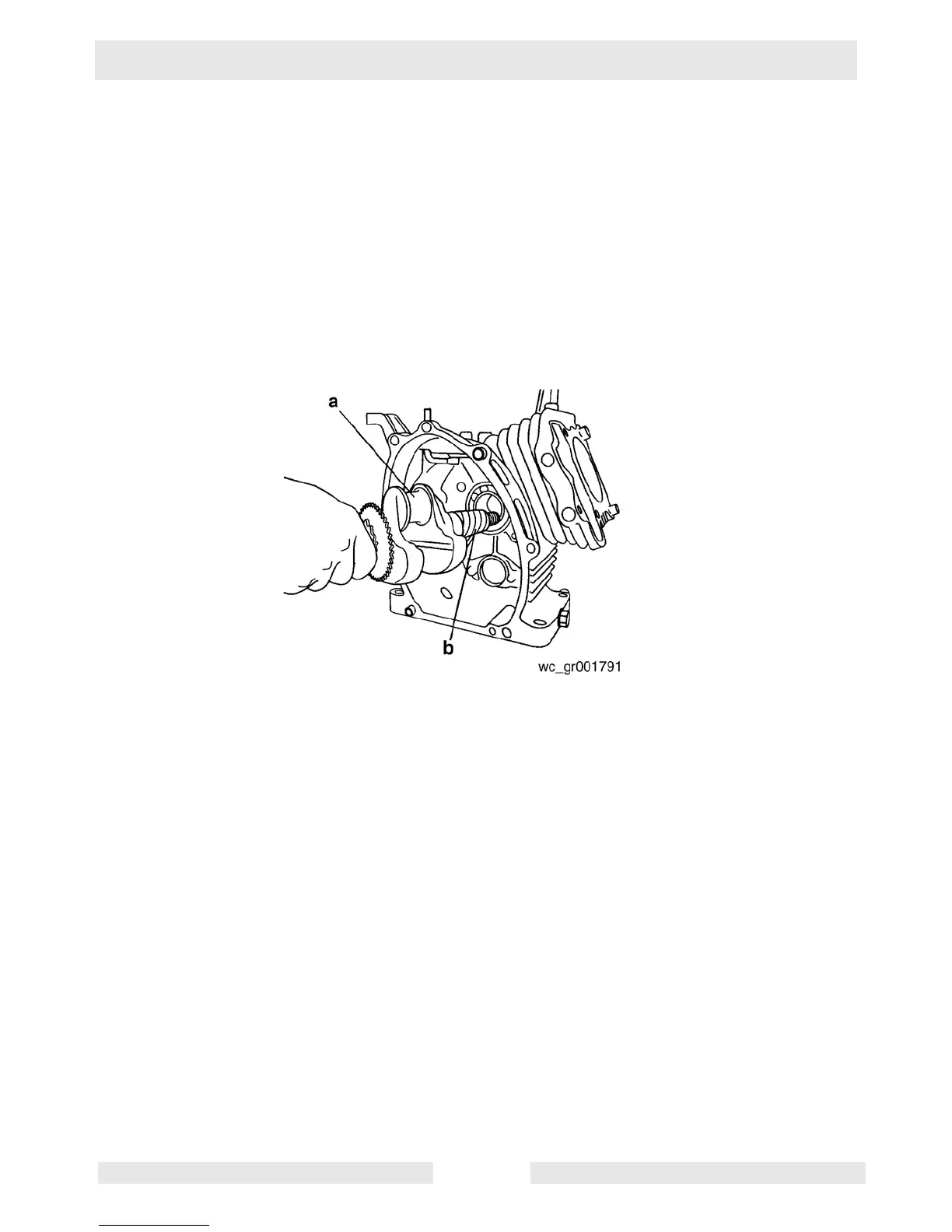

See Graphic: wc_001791
9.3.1 Wrap the keyway portion of the crankshaft (a) with polyvinyl tape (b)
and insert the crankshaft into the crankcase, taking care not to damage
the oil seal lip.
9.3.2 Remove the polyvinyl tape and insert the Woodruff key, for the
flywheel magneto, into the crankcase.
Note: Do not insert the Woodruff key before inserting the crankshaft
into the crankcase.
