Electrical WM 130/170/270 Repair
wc_tx000381gb.fm 94

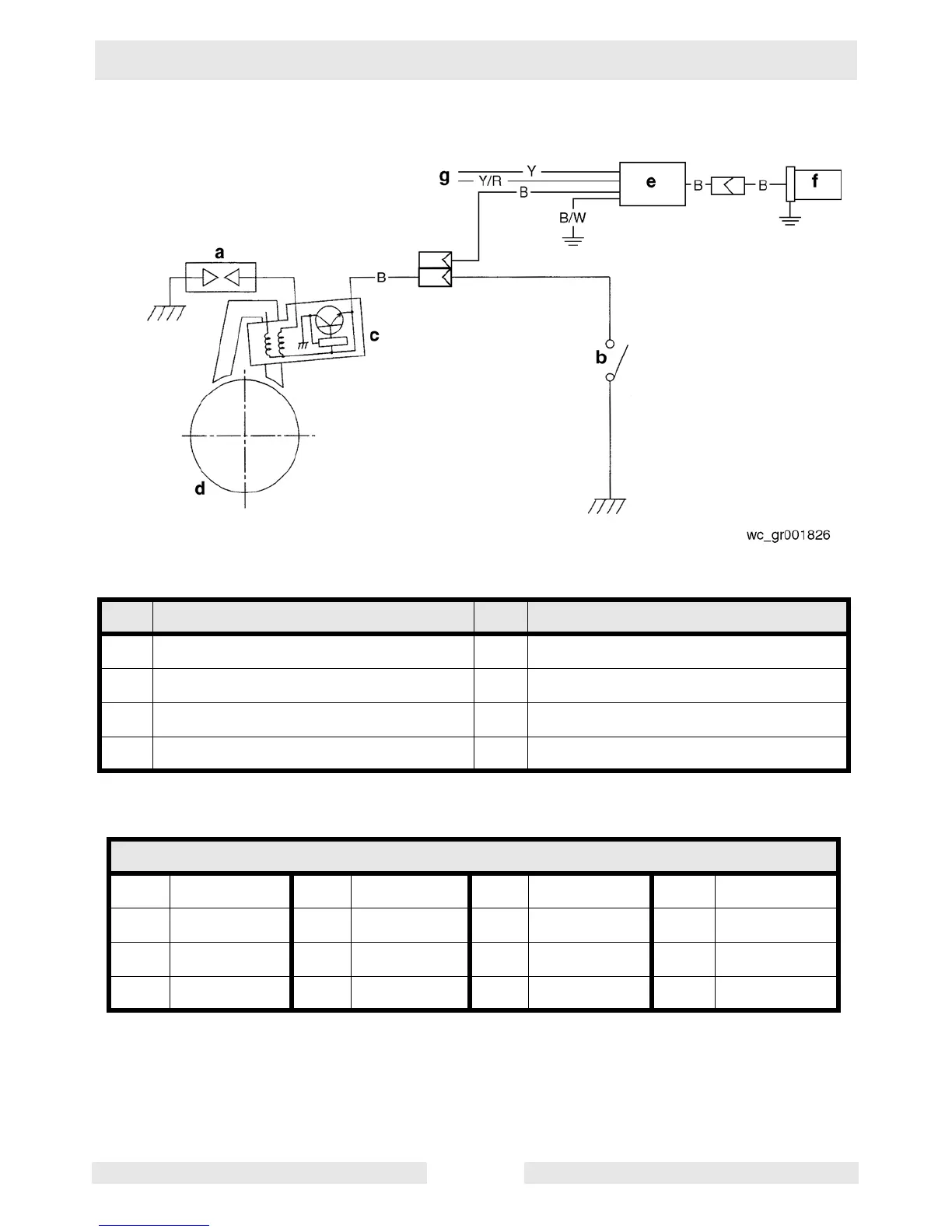

11.8 Wiring Diagram
Ref Description Ref Description
a Spark plug e Oil sensor control unit
b Stop switch f Oil sensor
c Ignition coil (with built-in transistor) g To LED if equipped
d Flywheel
Wire Colors
B Black R Red Y Yellow Or Orange
G Green T Tan Br Brown Pr Purple
L Blue V Violet Cl Clear Sh Shield
P Pink W White Gr Gray LL Light blue
