Reassembly Procedures WM 130/170/270 Repair
wc_tx000379gb.fm 68
9.20 Speed Control Assembly and Carburetor

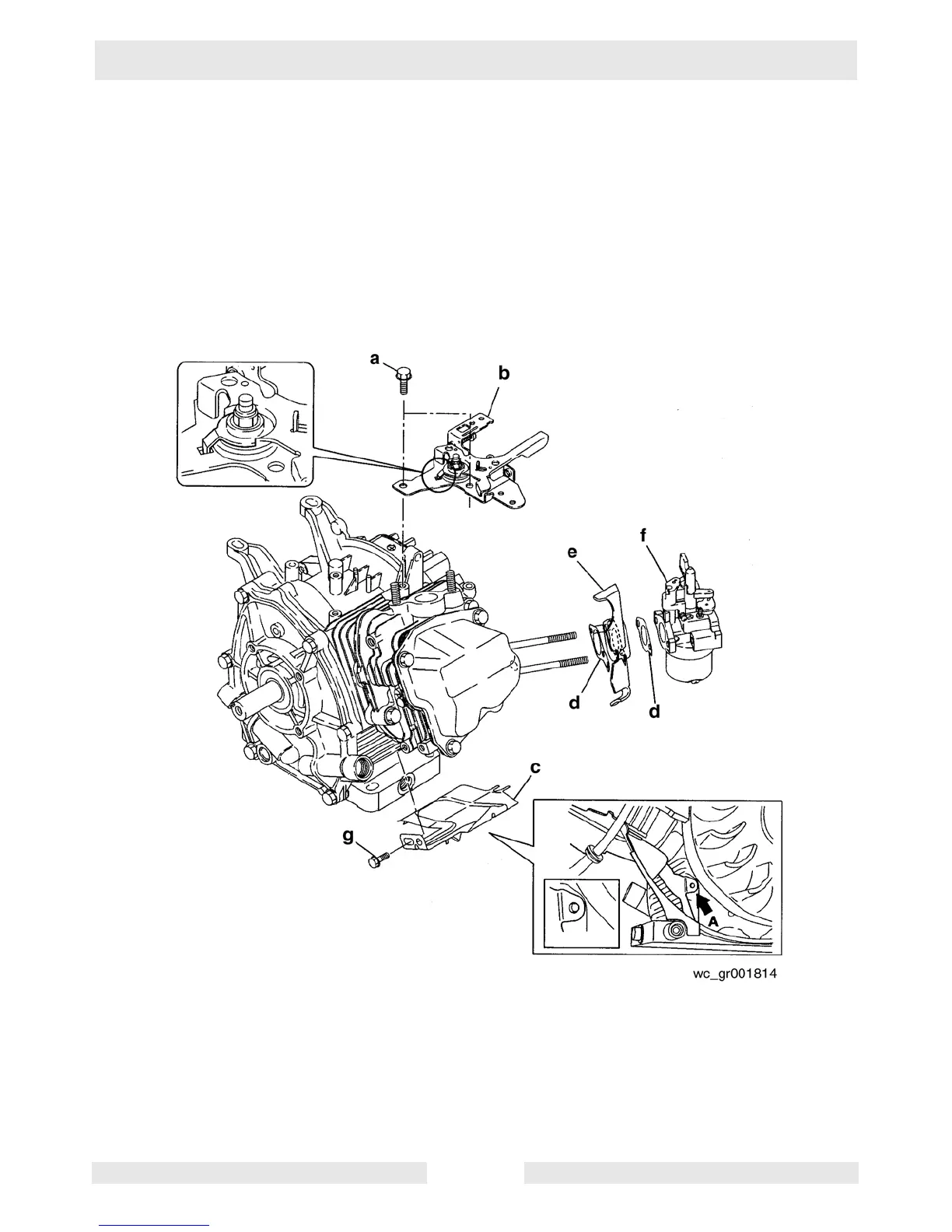

See Graphic: wc_gr001814
9.20.1 Using two M6 x 12 bolts (a), secure the speed control assembly (b) to
the engine.
9.20.2 Using one M6 x 12 bolt (g), secure the head baffle (c) to the engine.
9.20.3 Replace the insulator gaskets (d) and mount the insulator gaskets,
insulator (e), and carburetor (f) to the engine.
