Disassembly Procedures WM 130/170/270 Repair
wc_tx000379gb.fm 46
8.8 Removing Rocker Cover and Rocker Arm

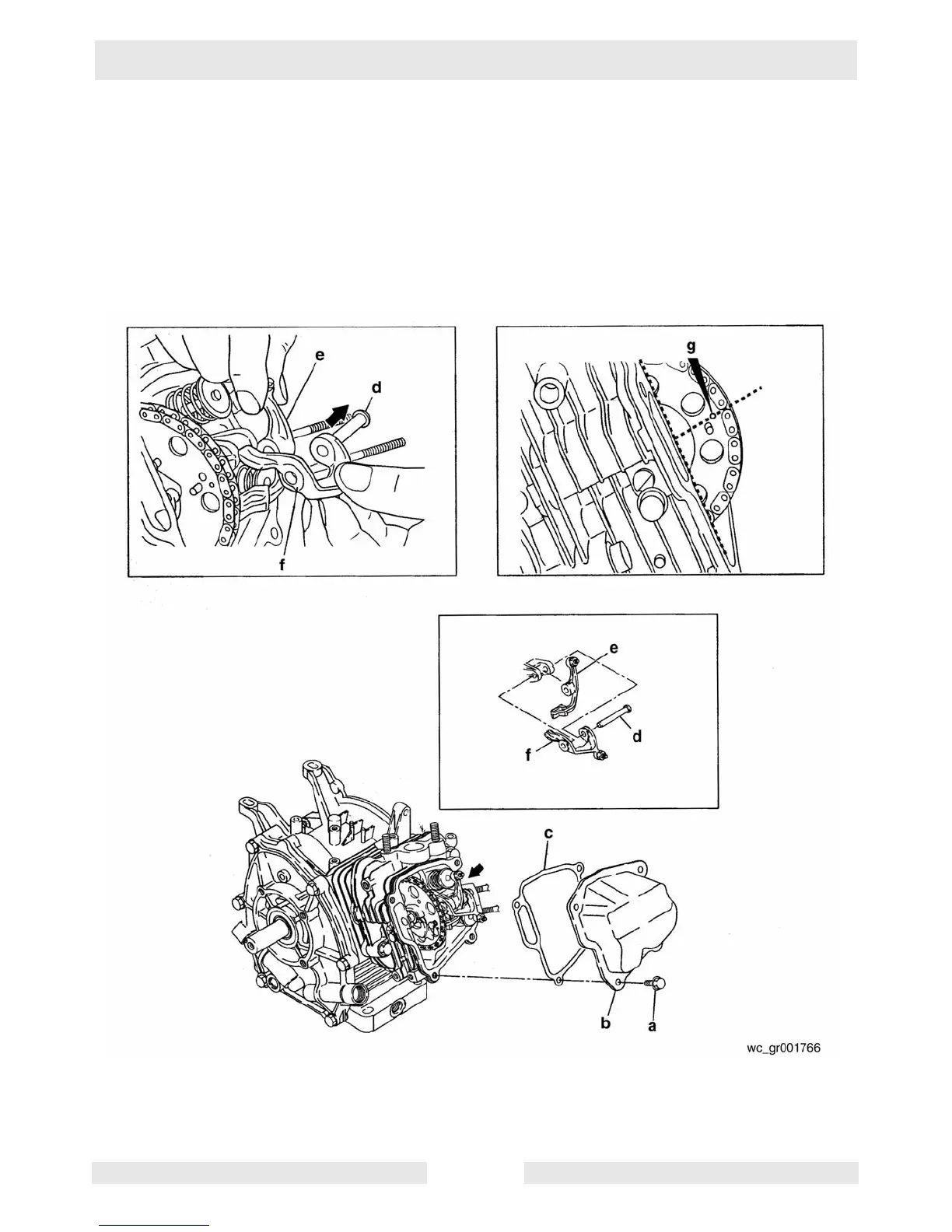

See Graphic: wc_gr001766
8.8.1 Remove the M6 bolts (a) securing the rocker cover (b) and remove the
rocker cover. Remove the rocker cover gasket (c).
8.8.2 Remove the rocker arm pin (d) and both exhaust-valve-side (e) and
intake-valve-side (f) rocker arms at compression top dead center (g).
