WM 130/170/270 Repair Reassembly Procedures
wc_tx000379gb.fm 71
9.24 Muffler

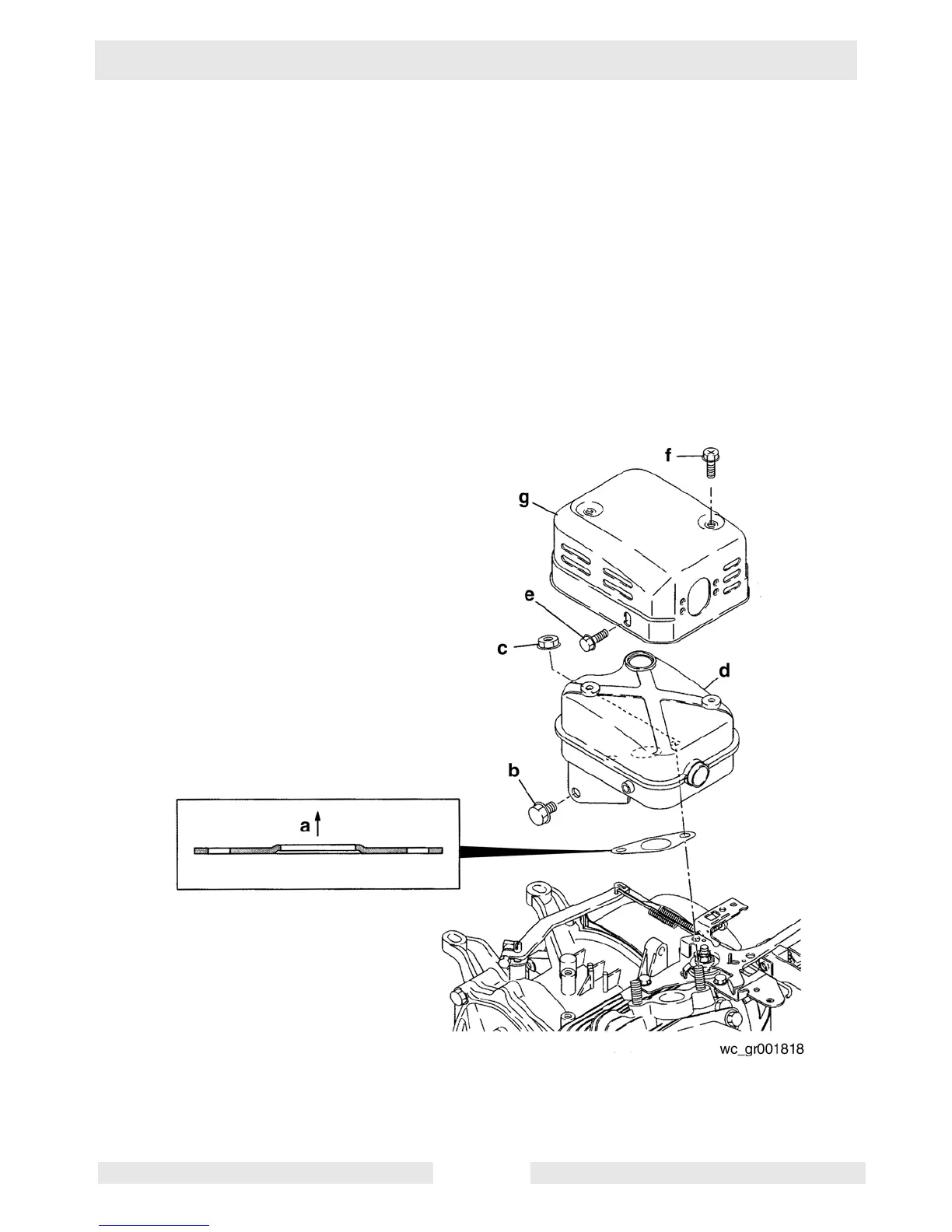

See Graphic: wc_gr001818
Note: Remove any tape or cloth used to cover the exhaust port when
the engine was disassembled.
9.24.1 Place the gasket, muffler side up (a), on the engine.
9.24.2 Using one M8 x 12 bolt (b) and two M8 nuts (c), attach the muffler (d)
to the engine.
9.24.3 Using two M6 x 10 bolts (e) and one M6 x 8 bolt (f), attach the muffler
guard (g) to the muffler.
Torque the hardware to 18.0–22.0 Nm (13.0–15.9 ft.lbs.).
