9.17 Case Baffle

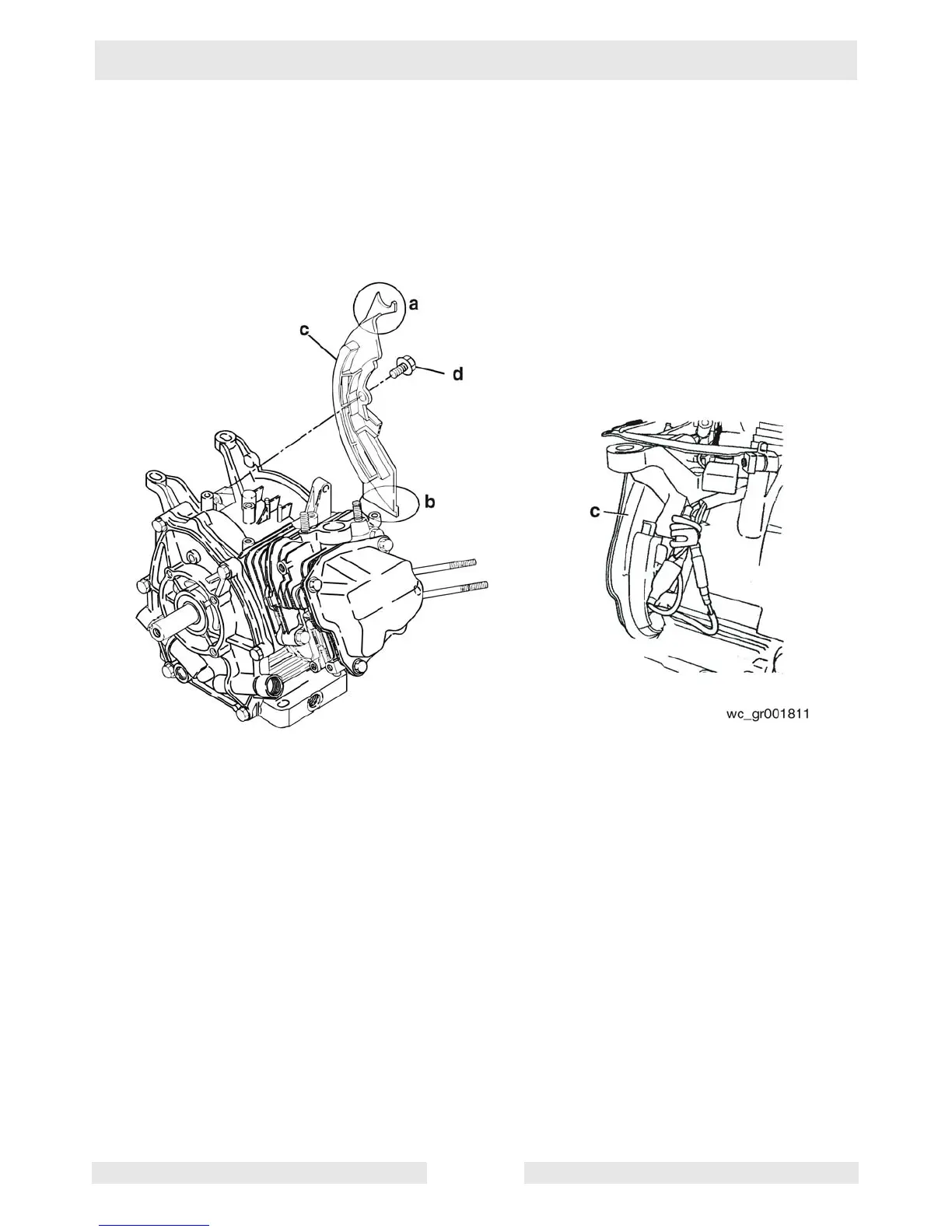

See Graphic: wc_gr001811
9.17.1 Align the top (a) and bottom (b) of the baffle (c) with the crankcase and
using the M6 (WM 130/170) or the M8 (WM 270) bolt (d) secure the
case baffle to the crankcase.
