Reassembly Procedures WM 130/170/270 Repair
wc_tx000379gb.fm 60
9.10 Setting the Timing Chain

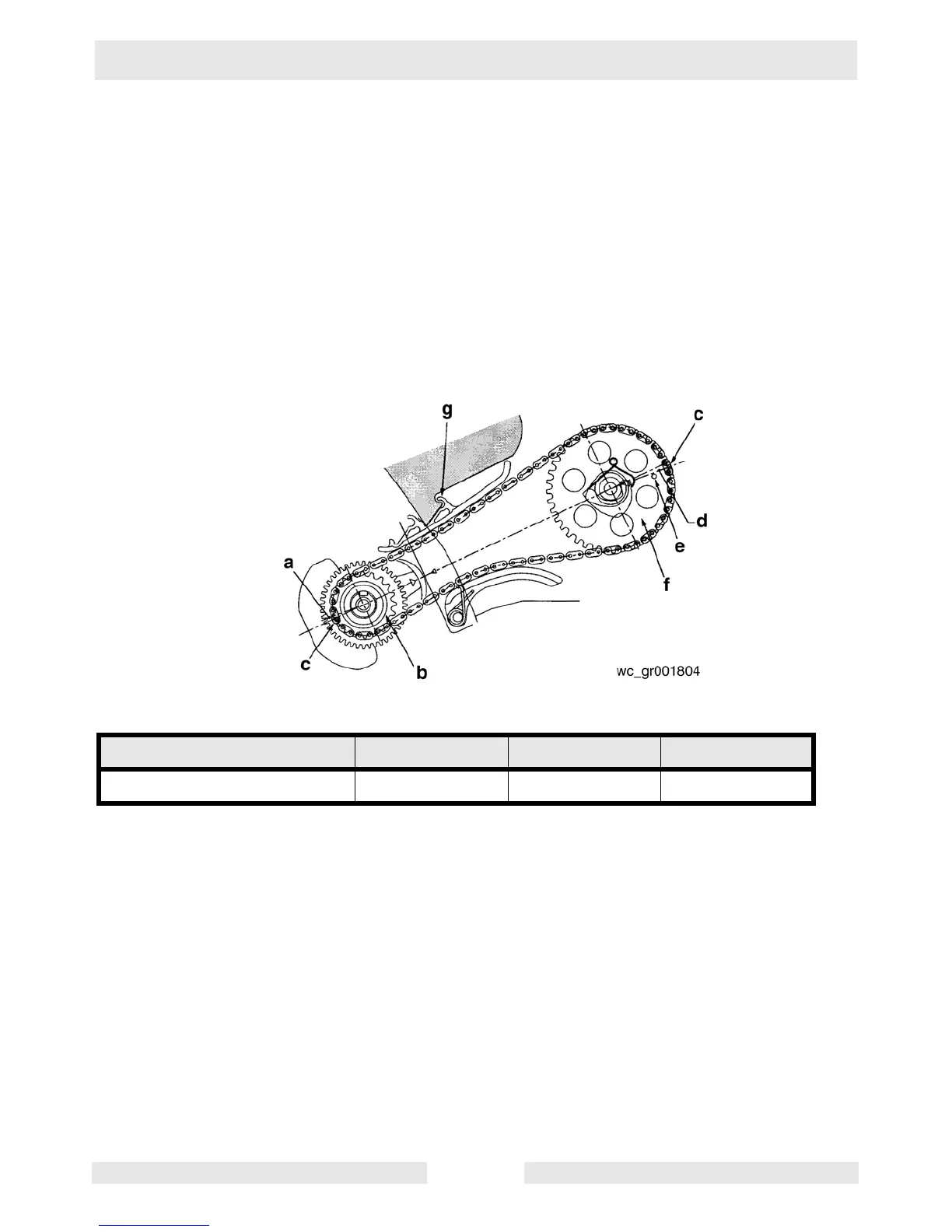

See Graphic: wc_gr001804
9.10.1 Align the timing mark (a) on the crankshaft (b) with the mark plate (c)
of the timing chain.
9.10.2 Align the timing mark (a) on the crankshaft (b) with the mark plate (c)
on the opposite end of the timing chain.
Note: The mark plate (c) does not have a camshaft side or crankshaft
sprocket side.
Reference: Camshaft sprocket (f); camshaft timing mark (d); roll pin
(e); and chain guide position (g).
WM 130 WM 170 WM 270
Number of chain links 86 88 100
