5.0 INSTALLATION AND FIXING
2
FIL.SILOTOP_zero.--.M.A4.0722.EN Issue: A4
07.22
26

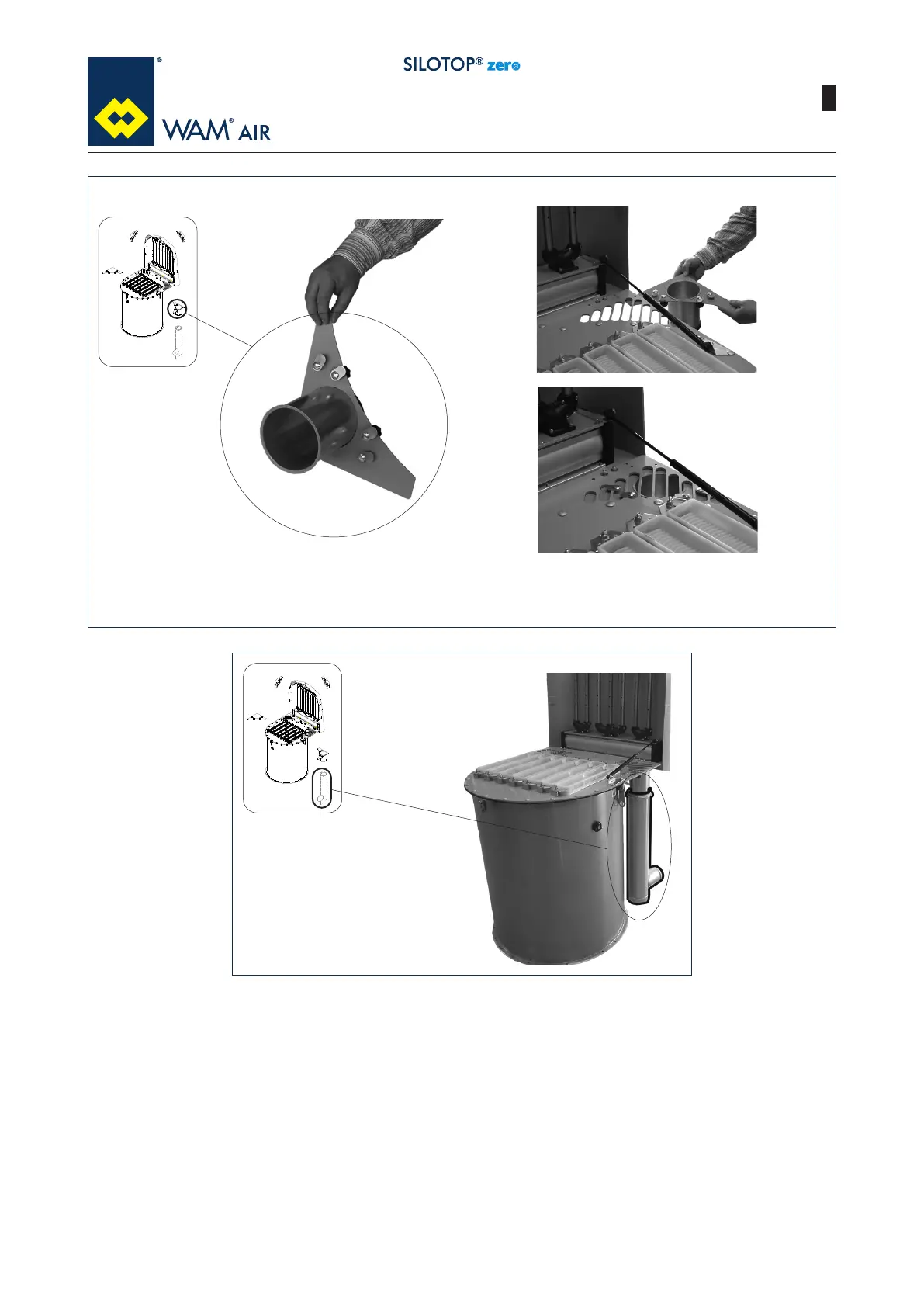

Close the rear air outlet with the remaining ange with the cylindrical stub pipe
Assemble the vertical tube for fumes extraction
(NOT SUPPLIED BY WAM
®
) by connecting it to the cylindrical
stub pipe indicated in the previous Figure.
