8.4 Replacing the solenoid valve
Danger - Warning
Set the lter in safety condition (see "Glossary and Terminology").

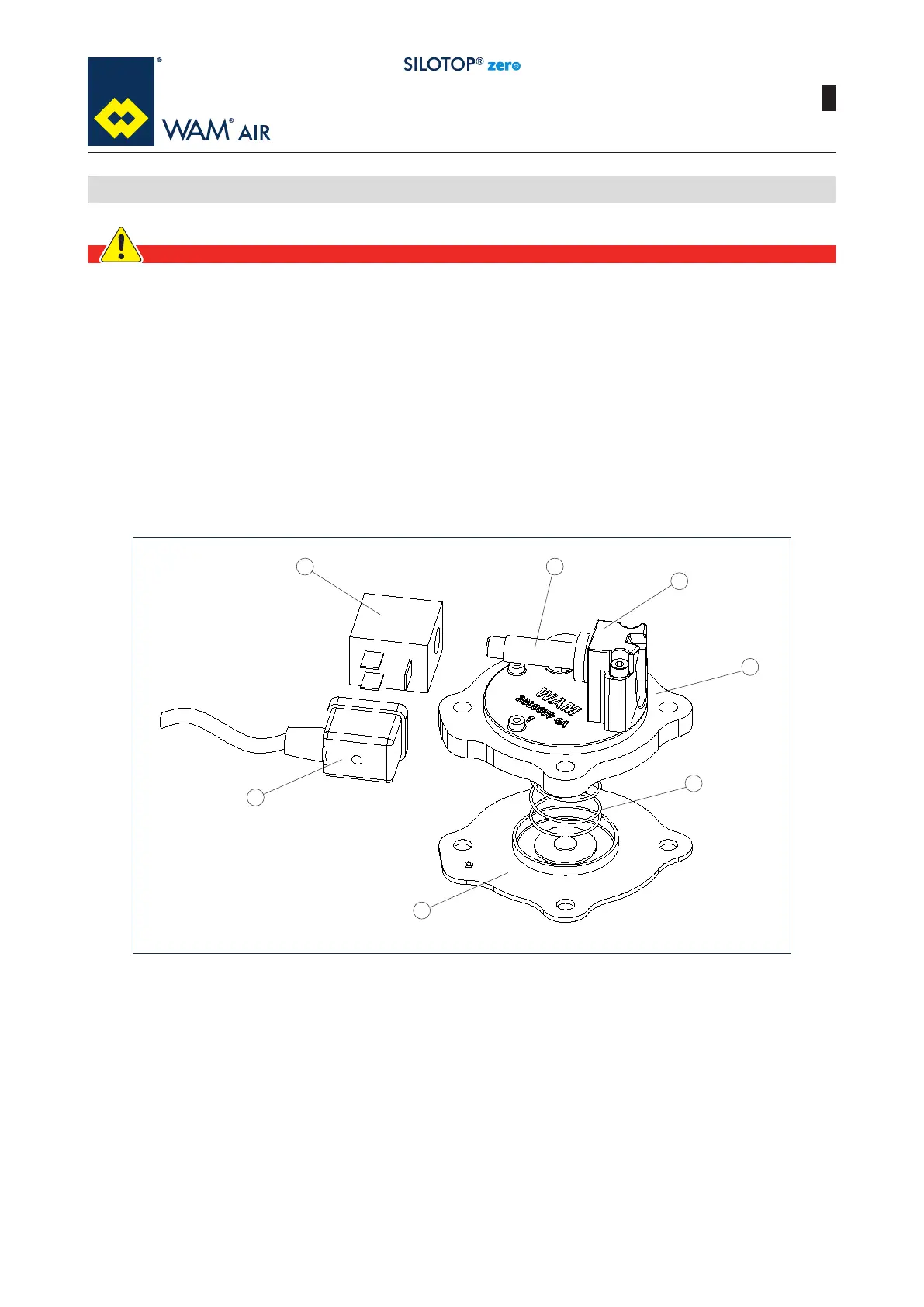

1) Remove the coil (6) and the connector (7) after having removed the relative ring nuts;
2) Unscrew the item (5), ensuring that the pin and spring do not fall out and that the pin slides perfectly in;
3) Inspect thoroughly the pin coupling area of the items (4) and (5) ensuring there are no impurities;
4) Remove the hex screws and washers which secure the valve cover (3);
5) Replace the diaphragm (1) and the spring (2);
6) Ensure the diaphragm (1) is positioned above the vent hole;
7) Insert the spring (2) into the cover cavity (3);
8) Fit the new cover (if provided) by checking that the spring is over the edge of the disc diaphragm and the
cover is positioned over the vent hole.
1
•
7
•
2
•
3
•
4
•
5
•
6
•
