Waters ACQUITY Arc System - Page 24

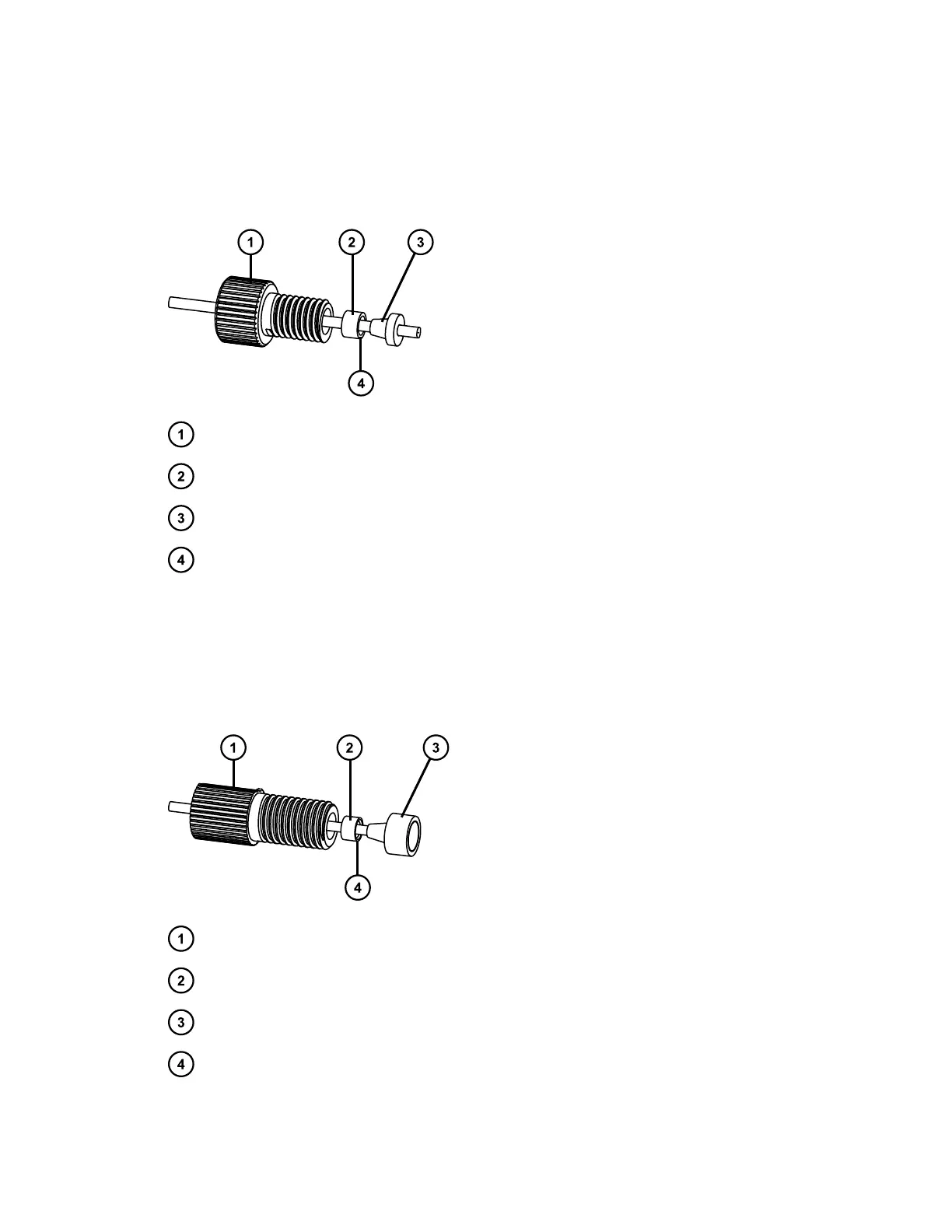

2.5.1.2 Short 1/4-28 fitting with flangeless ferrule and stainless steel lock
ring installed on 1/16-inch OD tubing
First use or re-installed
Compression screw
Lock ring
Ferrule
End of lock ring with larger inside diameter (ID)
Tighten the fitting finger-tight.
2.5.1.3
5/16-24 fitting with filter and stainless steel lock ring
First use or re-installed
Compression screw
Lock ring
Ferrule and filter
End of lock ring with larger inside diameter (ID)
Tighten the fitting finger-tight.
June 12, 2015, 715004747 Rev. A
Page 24
