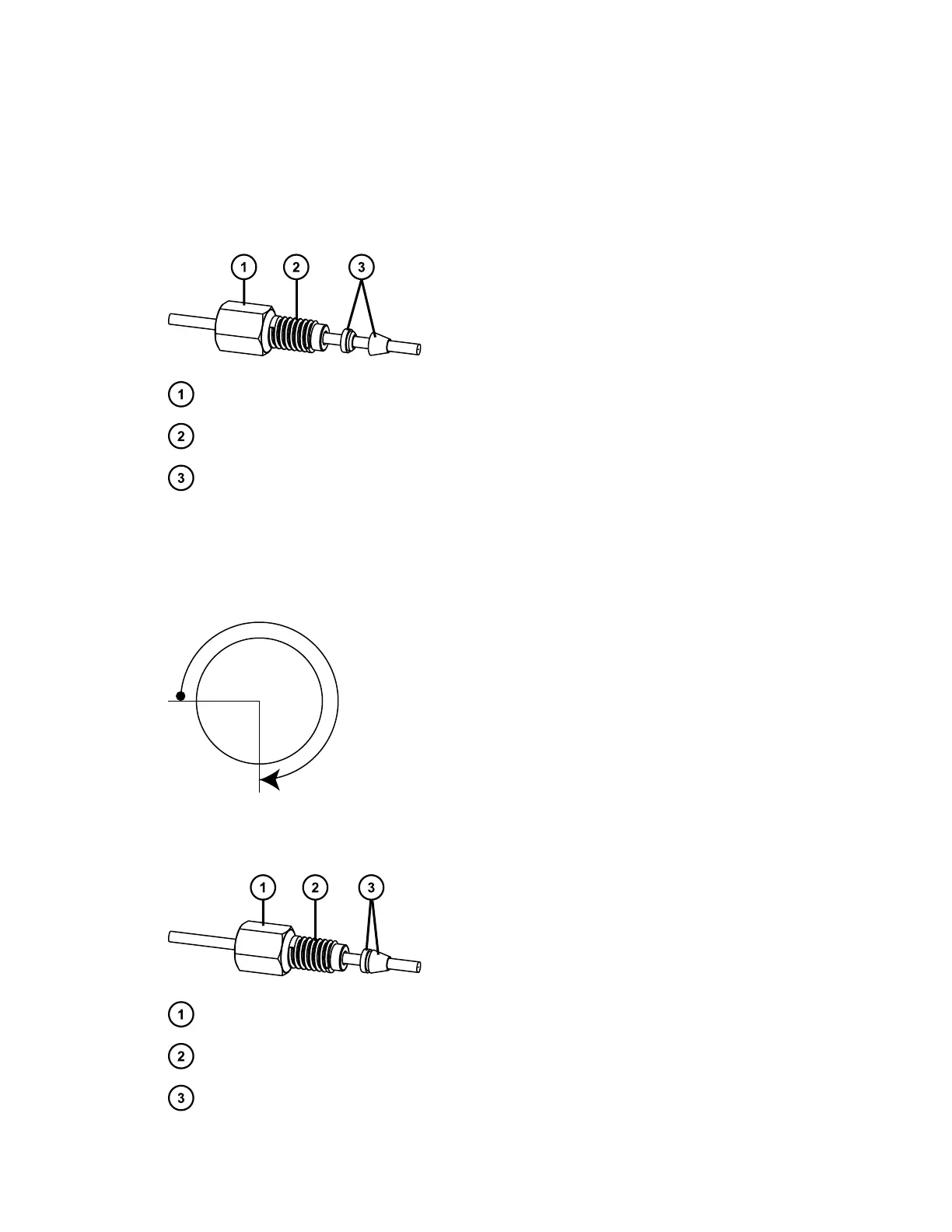

2.5.1.4 Stainless steel (gold-plated) fitting with long flats and 2-piece
stainless-steel ferrule
First use
Long flats
Compression screw
2-piece stainless-steel ferrule
Tighten the fitting finger-tight plus an additional 3/4-turn using a 1/4-inch open-end
wrench.
Tip: To prevent bandspreading, ensure the tubing is fully bottomed in the fitting
before tightening the compression screw.
Re-installed
Long flats
Compression screw
2-piece stainless-steel ferrule
