Waters ACQUITY Arc System - Connecting Signal Cables

To connections cables:
1. Using the flat-blade screwdriver, attach the positive and negative leads of the
signal cable to the connector.

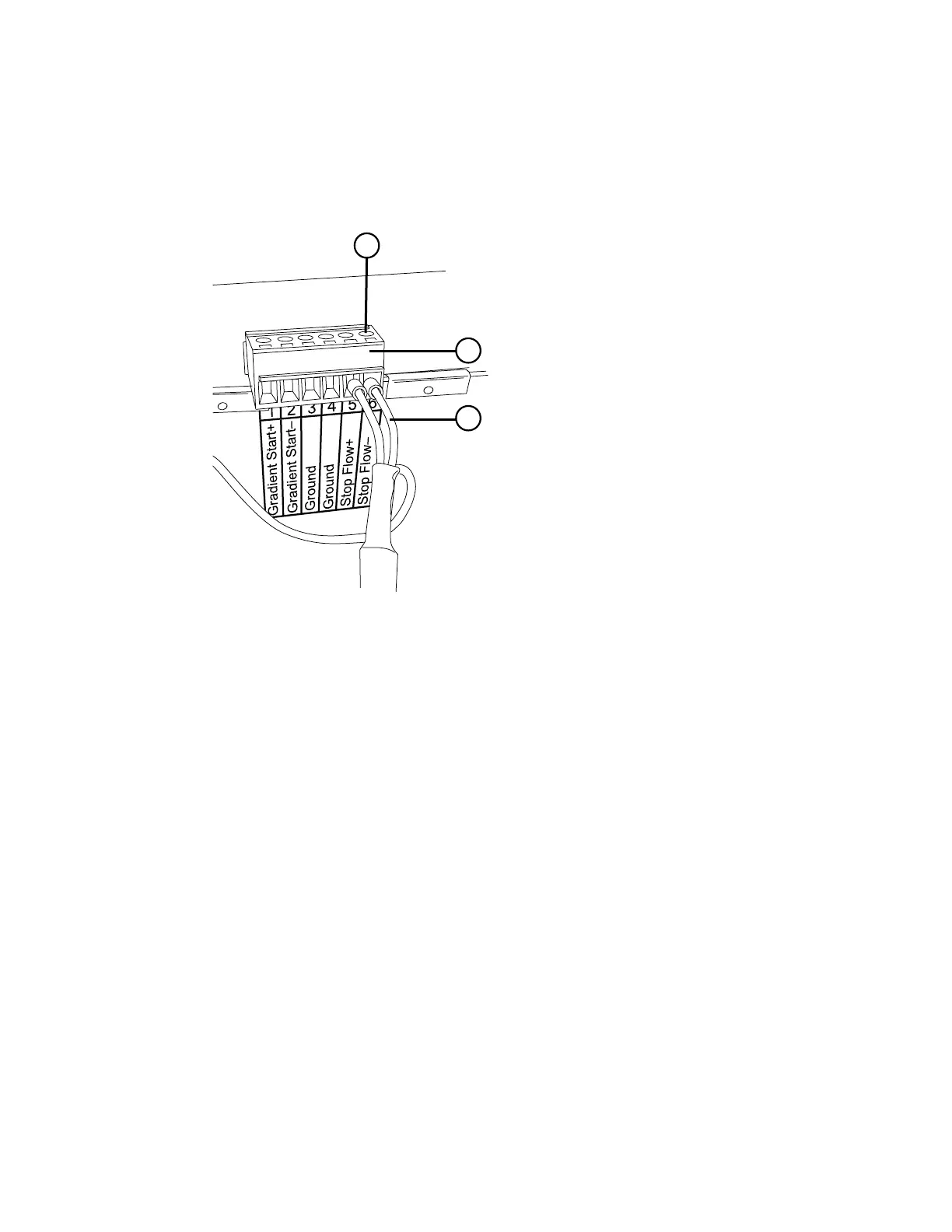

Figure 5–4: Positive and negative lead connections
1
2
3
