Section 2
Auto-Zone CV & CV-EX
2-18 Installation and Wiring
System Manager
The microprocessor based System Manager is a device which allows the CV controller
or any Add-on device connected to the system, to be programmed and monitored from a
central location. The System Manager is connected via the RS-485 communication
network.

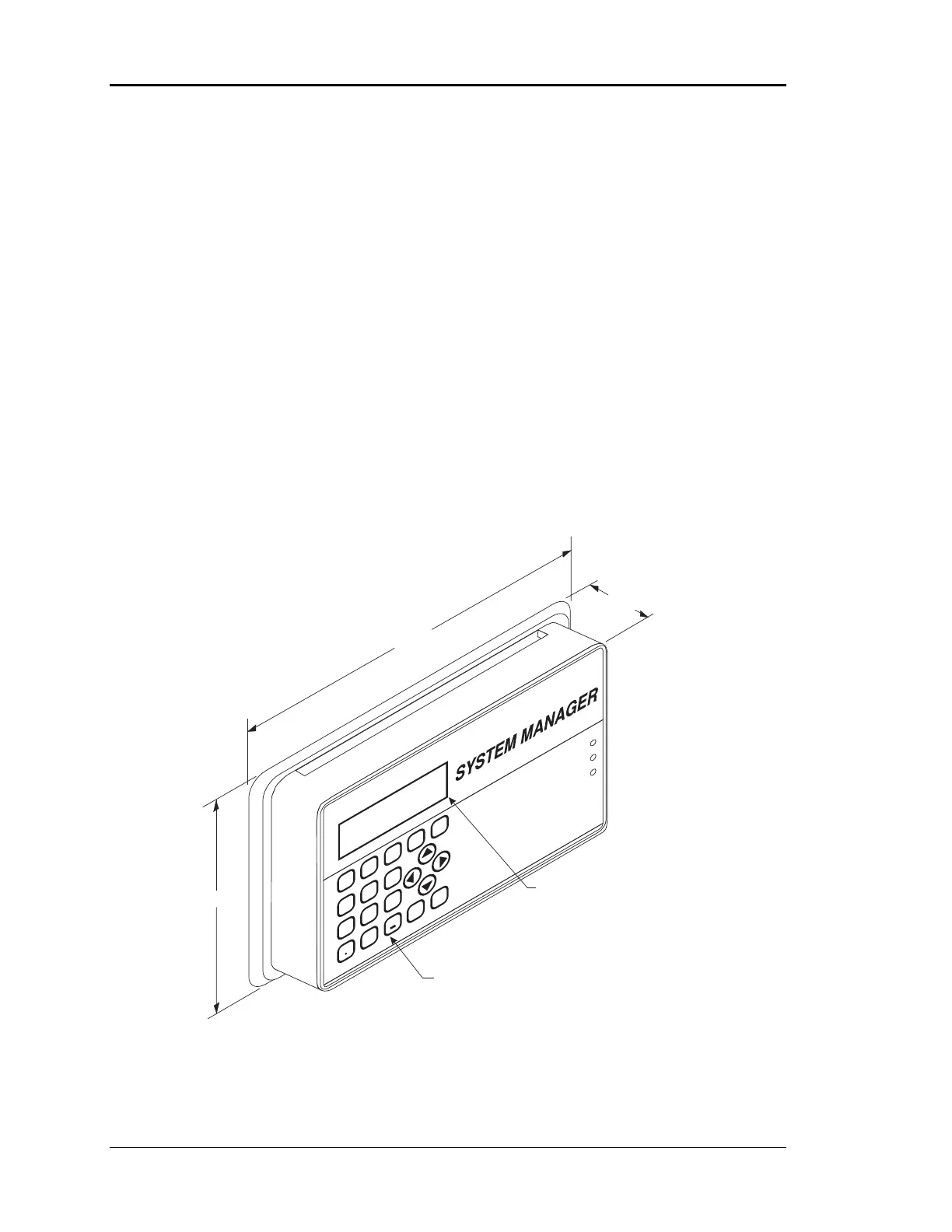

The System Manager is mounted in an attractive, white plastic housing, suitable for wall
mounting. A four line by twenty character, backlighted, LCD display and membrane
keypad provide a user friendly interface. All system variables, setpoints, and values can
be viewed and modified from the System Manager. Menu driven programming makes the
System Manager easy to set up your system and operate it without the need for
specialized training.
1.90
9.00
6.25
20 Key Membrane
Keypad
Four Line by 20 Character
Backlighted Display
6
5
4
DEC
7
MINUS
0
CLEAR
98
1
32
MENU
Override
Communication
ENTER
ESC
Alarm
To Next Page
