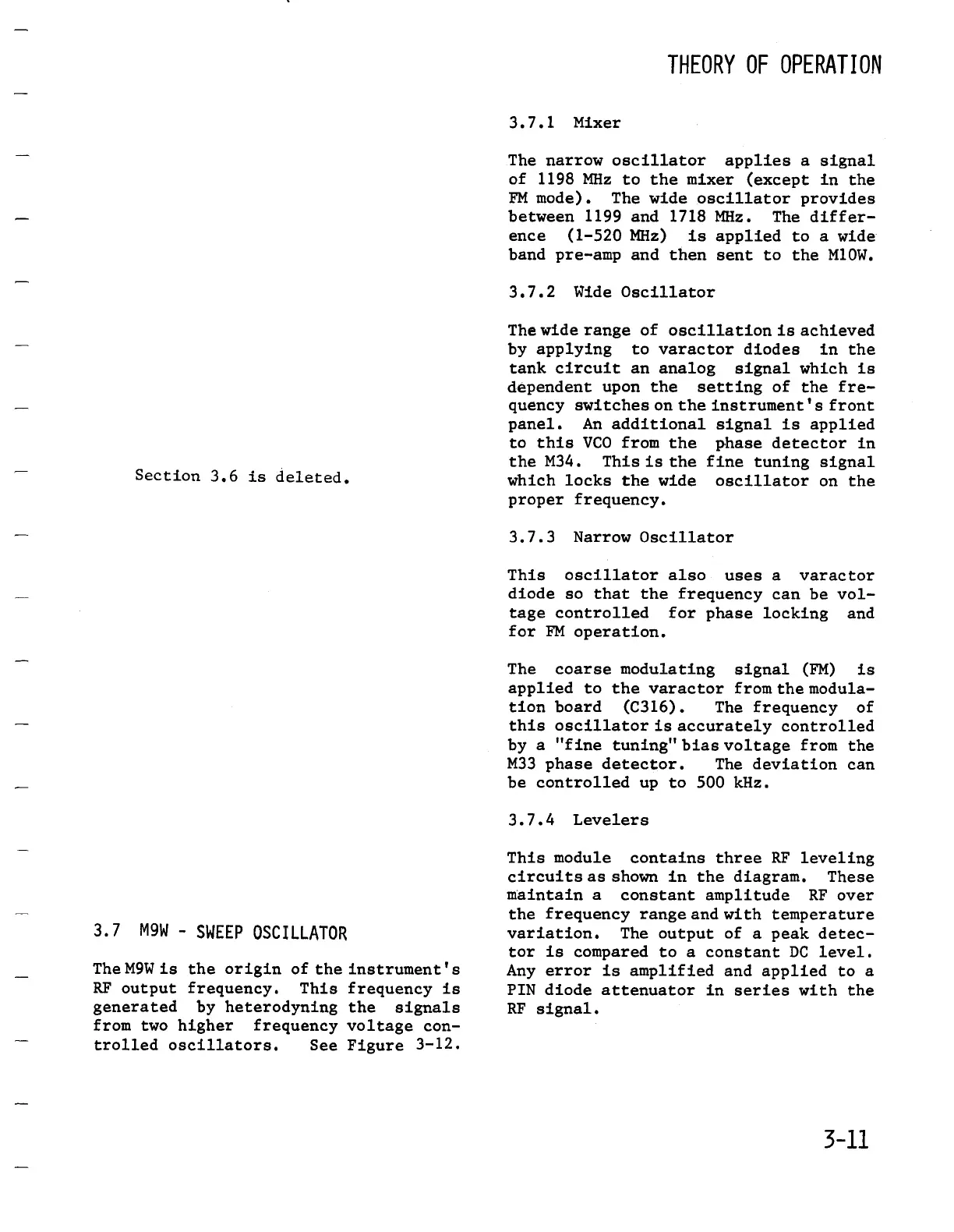

Section
3
.6
is
deleted
.
3
.7
M9W
-
SWEEP
OSCILLATOR
TheM9W
is
the
origin
of
the
instrument's
RF
output
frequency
.
This
frequency
is
generated
by
heterodyning
the
signals
from
two
higher
frequencyvoltage
con-
trolled
oscillators
.
SeeFigure
3-12
.
3.7
.1
Mixer
The
narrow
oscillatorapplies
a
signal
of 1198
MHz
to
themixer
(except
in
the
FM
mode)
.
The
wideoscillator
provides
between
1199
and
1718
MHz
.
The
differ
ence
(1-520
MHz)
is
applied
to
a
wide
band
pre-amp
and
then sent
to
the
M10W
.
3.7.2
WideOscillator
Thewide
range
of
oscillation
is
achieved
by applying
to
varactor
diodes
in
the
tank
circuit
an analog
signal
which
is
dependent
upon
the
setting
of
the
fre-
quency
switches
onthe
instrument's
front
panel
.
An additional
signal
is
applied
to
this
VCO from
the phasedetector
in
the
M34
.
This
is
the
fine
tuningsignal
which
locks
the
wide oscillator
on
the
properfrequency
.
3
.7
.3
Narrow
Oscillator
This
oscillator
also
uses
a varactor
diode
so
that
the
frequency
can
be
vol-
tage
controlled
for
phase
locking
and
for
FM
operation
.
The
coarse
modulating
signal
(FM)
is
applied
to
the
varactorfrom
the
modula-
tion
board
(C316)
.
The
frequency
of
this
oscillator
is
accuratelycontrolled
by a
"fine
tuning"
bias
voltage
from
the
M33
phasedetector
.
The
deviation
can
be
controlled
up to
500 kHz
.
3
.7
.4
Levelers
THEORY
OF
OPERATION
This
module
contains
three
RF
leveling
circuits
as
shown
in
the
diagram
.
These
maintain
a
constantamplitude
RF
over
the
frequency
range
and
withtemperature
variation
.
The
output
of
a
peakdetec-
tor
is
compared
to
a
constant
DC
level
.
Any
error
is
amplified
and
applied
to a
PIN
diode
attenuator
in
series
with
the
RF
signal
.
3-11
