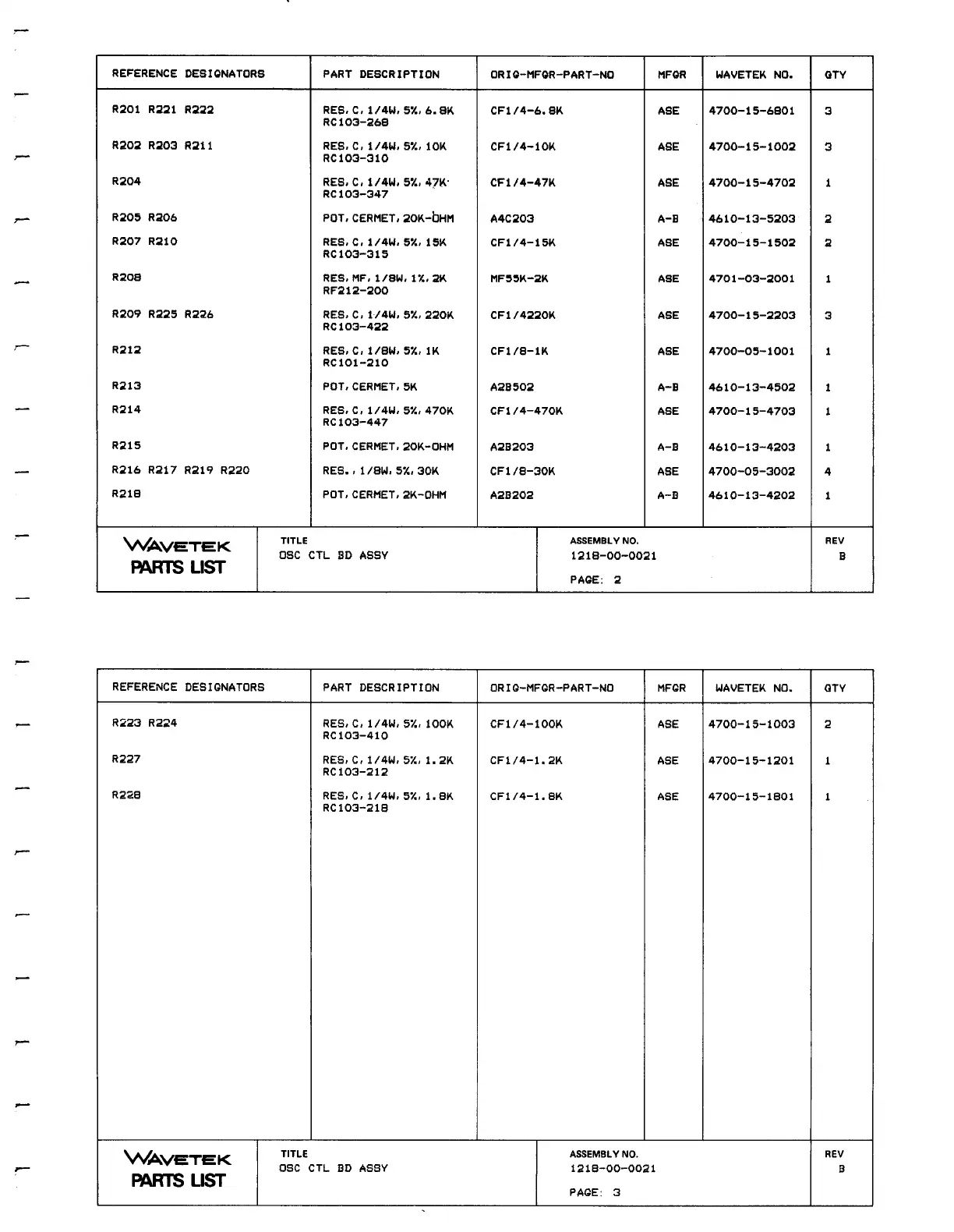

Wavetek 3000 - Ase 4700-15-1002; Ase 4700-15-2203; Ase 4700-15-5601

REFERENCE DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR WAVETEK NO . QTY
R201 R221 R222 RES,C,1/4W,5%,6
.8K CF1/4-6 .8K ASE 4700-15-6801 3
RC103-268
R202R203 R211 RES,C,1/4W,5%,IOK
CF1/4-10K ASE 4700-15-1002 3
RC103-310
R204
RES, C, 1/4W, 5%, 47K' CFI/4-47K ASE 4700-15-4702 1
RC103-347
R205R206
POT,CERMET,20K-bHM A4C203 A-B 4610-13-5203 2
R207R210
RES,C,1/4W,5%,15K CF1/4-15K ASE 4700-15-1502 2
RC103-315
R208
RES,MF,1/BW,1%,2K MF55K-2K ASE 4701-03-2001 1
RF212-200
R209R225R226 RES,C,1/4W,5%,220K
CFl/4220K ASE 4700-15-2203 3
RC103-422
R212
RES,C,1/BW,5%,lK CF1/8-1K ASE 4700-05-1001 1
RC101-210
R213 POT,CERMET,5K
A2B502 A-B 4610-13-4502 1
R214
RES,C,1/4W,5%,470KCFI/4-470K ASE 4700-15-4703 1
RC103-447
R215
POT,CERMET,20K-OHM A2B203 A-B 4610-13-4203 1
R216 R217R219R220 RES .,1/8W,5%,30K
CF1/8-30K ASE 4700-05-3002 4
R218
POT,CERMET,2K-OHM A2B202 A-B 4610-13-4202 1
WAVETEK
TITLE ASSEMBLY NO . REV
OSC CTL BD ASSY 1218-00-0021 B
PART'SLIST
PAGE : 2
REFERENCE DESIGNATORS
PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
R223R224
RES,C,1/4W,5%,100KCFl/4-l00K ASE 4700-15-1003 2
RC103-410
R227
RES, C, 1/4W, 5'/ ., 1 .2K CFI/4-1 .2K ASE 4700-15-1201 1
RC103-212
R228
RES, C, 1 /4W, 5'/ ., 1 . 8K CFl /4-1 . SK ASE 4700-15-1801 1
RC103-218
WAVETEK
TITLE ASSEMBLY
NO .
REV
OBCCTL BD ASSY 1218-00-0021 B
PART'SLIST
PAGE : 3
