Wavetek 3000 - Rear Panel Description

OPERATION
(D
Ext
continued
ModeSwitch
RF out
Power Switch
2 .5 DESCRIPTION OF REAR PANEL
Switch
115/230 V
AC Line Fuse
WARNING
TO PREVENT ELECTRIC SHOCK, DO NOT
REMOVE
COVERS . NO USER SERVICEABLE
PART
INSIDE . REFER SERVICING TO
QUALIFIED
PERSONNEL
WARNING :
FOR CONTINUED
PROTECTION AGAINST
FIRE HAZARD REPLACE
ONLYWITH THE
SAME
TYPE AND RATING OF FUSE

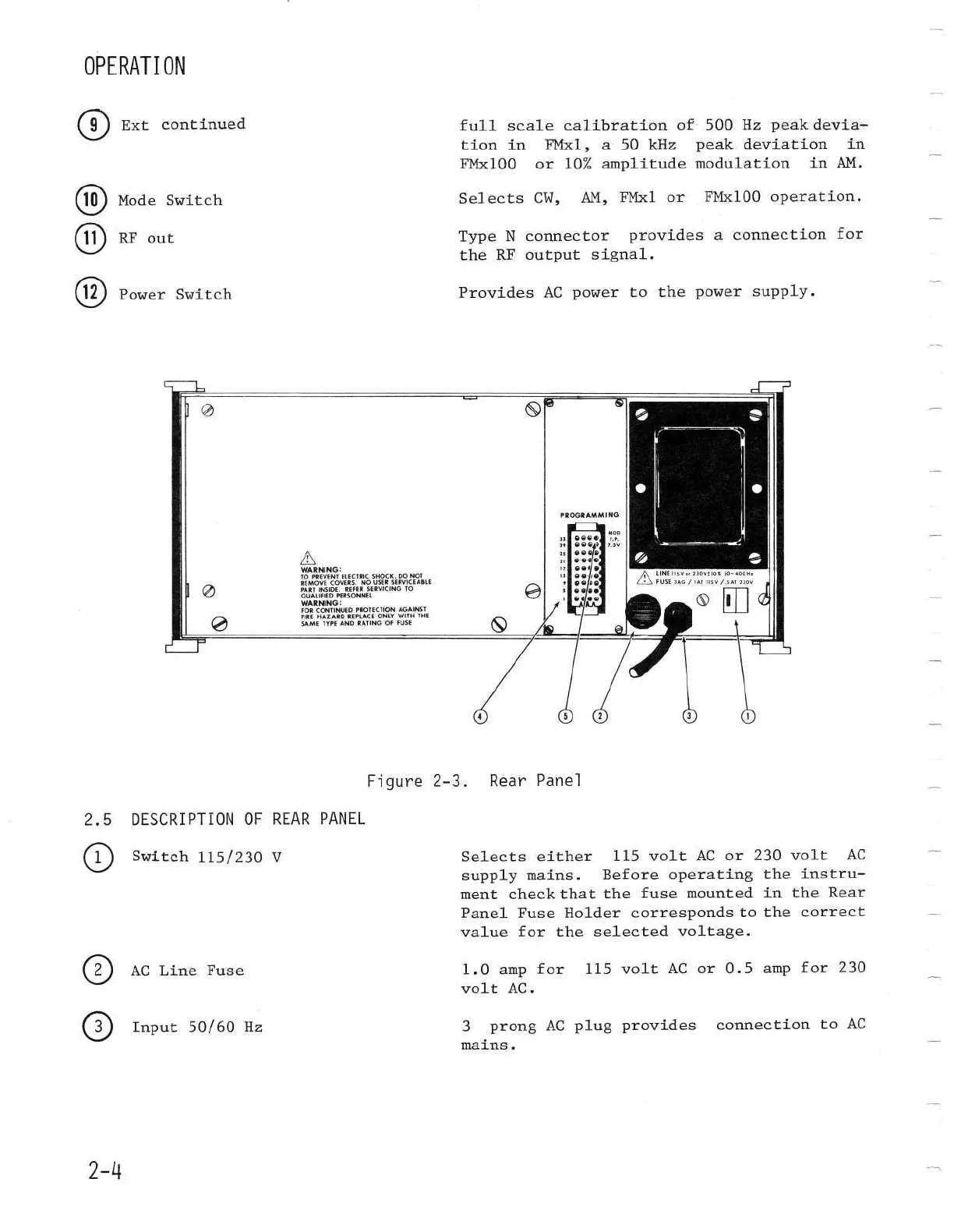

Figure
2-3
.
full scale calibration
of
500
Hz peak devia-
tion in FMxl, a 50 kHz peak deviation
in
FMx100 or 10% amplitude modulation in AM .
Selects CW, AM, FMxl
or FMx100 operation .
Type N
connector provides a connection
for
the RF output
signal .
Provides AC power
to the power supply .
Rear Panel
Selectseither 115 volt AC or 230 volt
AC
supply
mains . Before operating the instru-
ment
checkthat the fuse mounted in the
Rear
Panel FuseHolder
correspondsto the correct
value fortheselected
voltage .
1 .0 amp for 115
volt AC or 0 .5 ampfor230
volt AC .
O Input 50/60 Hz

3 prong AC plug provides
connection to AC
mains .
