Wavetek 3000 - H-P 4809-02-0001

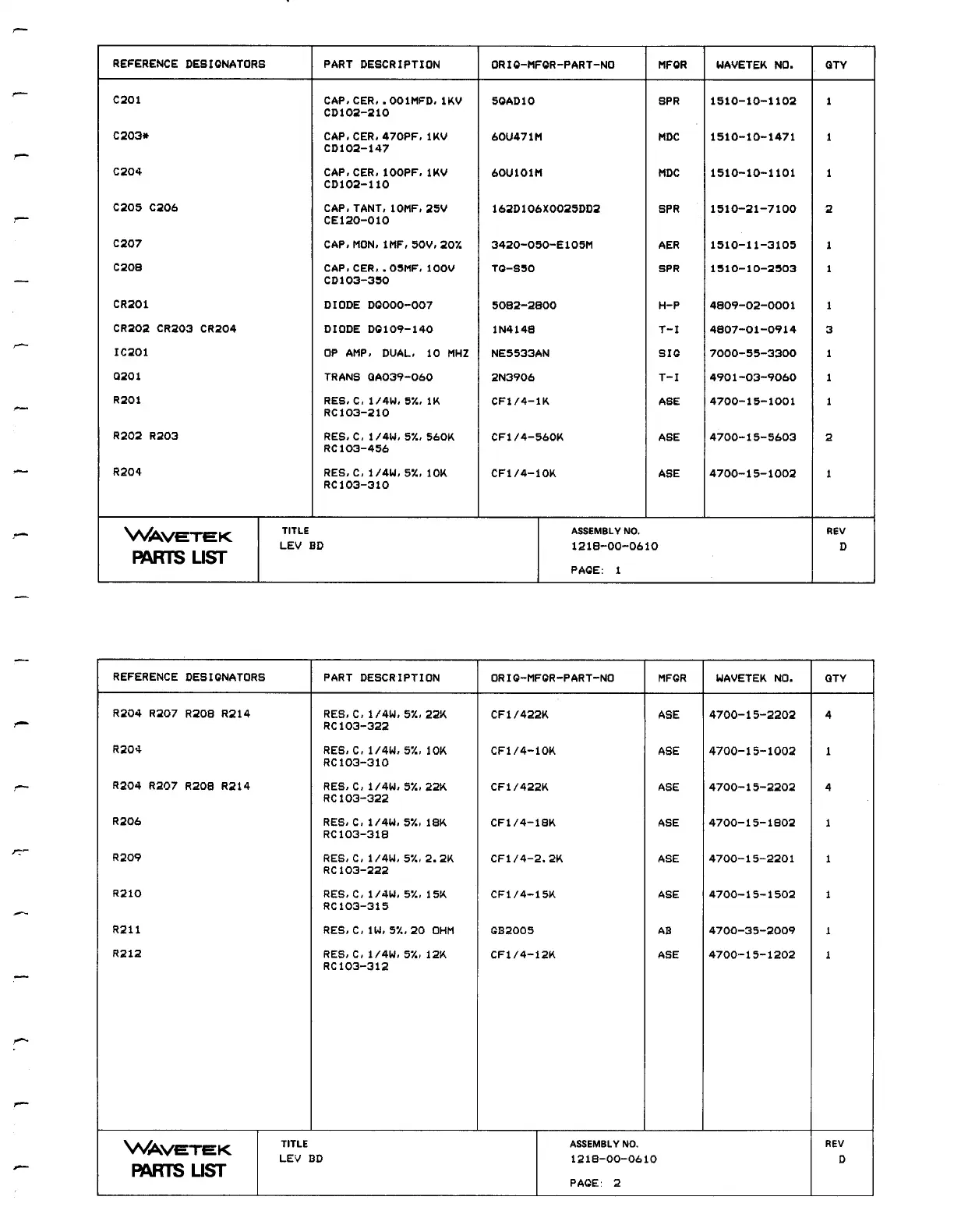

REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
C201 CAP,CER . .OOIMFD,IKV 5GAD10 SPR 1510-10-1102 1
CD102-210
C203* CAP,CER,470PF,lKV 60U471M MDC 1510-10-1471 1
CD102-147
C204 CAP .CER,IOOPF.IKV
60U101M MDC 1510-10-1101 1
CD102-110
C205C206 CAP,TANT,IOMF,25V
162D106XO025DD2 SPR 1510-21-7100 2
CE120-010
C207 CAP,MON,IMF,50V,20'/
. 3420-050-E105M AER 1510-11-3105 1
C208 CAP,CER, .05MF .100V
TG-S50 SPR 1510-10-2503 1
CD103-350
CR201 DIODEDGOOO-007 5082-2800 H-P 4809-02-0001 1
CR202CR203CR204
DIODEDG109-140 1N4148 T-I 4807-01-0914 3
IC201
OP AMP, DUAL, 10 MHZ NE5533AN SIG 7000-55-3300 1
0201 TRANS GA039-060
2N3906 T-I 4901-03-9060 1
R201
RES, C, 1/4W, 5'/ . . 1K CF1/4-1K ASE 4700-15-1001 1
RC103-210
R202 R203 RES
.
C, 1/4W,
5'/ ., 560K CF1/4-560K ASE 4700-15-56032
RC103-456
R204
RES .C,1/4W,5%,IOK CFI/4-iOK ASE 4700-15-1002 1
RC103-310
WAVETEK
TITLE ASSEMBLY NO . REV
LEV
BD 1218-00-0610 D
PARTS LIST
PAGE : 1
REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO
MFGR WAVETEK NO . CITY
R204R207R208R214
RES,C,1/4W,5%,22K CFI/422K ASE 4700-15-2202 4
RC103-322
R204
RES,C,1/4W,5%,10K CF1/4-10K ASE 4700-15-1002 1
RC103-310
R204R207 R208 R214 RES,C,i/4W .5%,22K CFi/422K ASE 4700-15-2202 4
RC103-322
R206
RES, C, 1/4W, 5'/ ., 18K CFI/4-18K ASE 4700-15-1802 1
RC103-318
R209
RES,C,1/4W,5`,2 .2K CFI/4-2 .2K ASE 4700-15-2201 1
RC103-222
R210 RES . C, 1/4W, 5'/ ., 15K CFI/4-15K ASE 4700-15-1502 1
RC103-315
R211 RES . C, 1W, 5'/ ., 20 OHM GB2005
AB 4700-35-2009 1
R212
RES,
C, 1/4W,
5'/ ., 12K CFI/4-12K ASE 4700-15-1202 1
RC103-312
WAVETEK
TITLE ASSEMBLY NO . REV
LEV
BD 1218-00-0610 D
PARTS LIST
PAGE : 2
