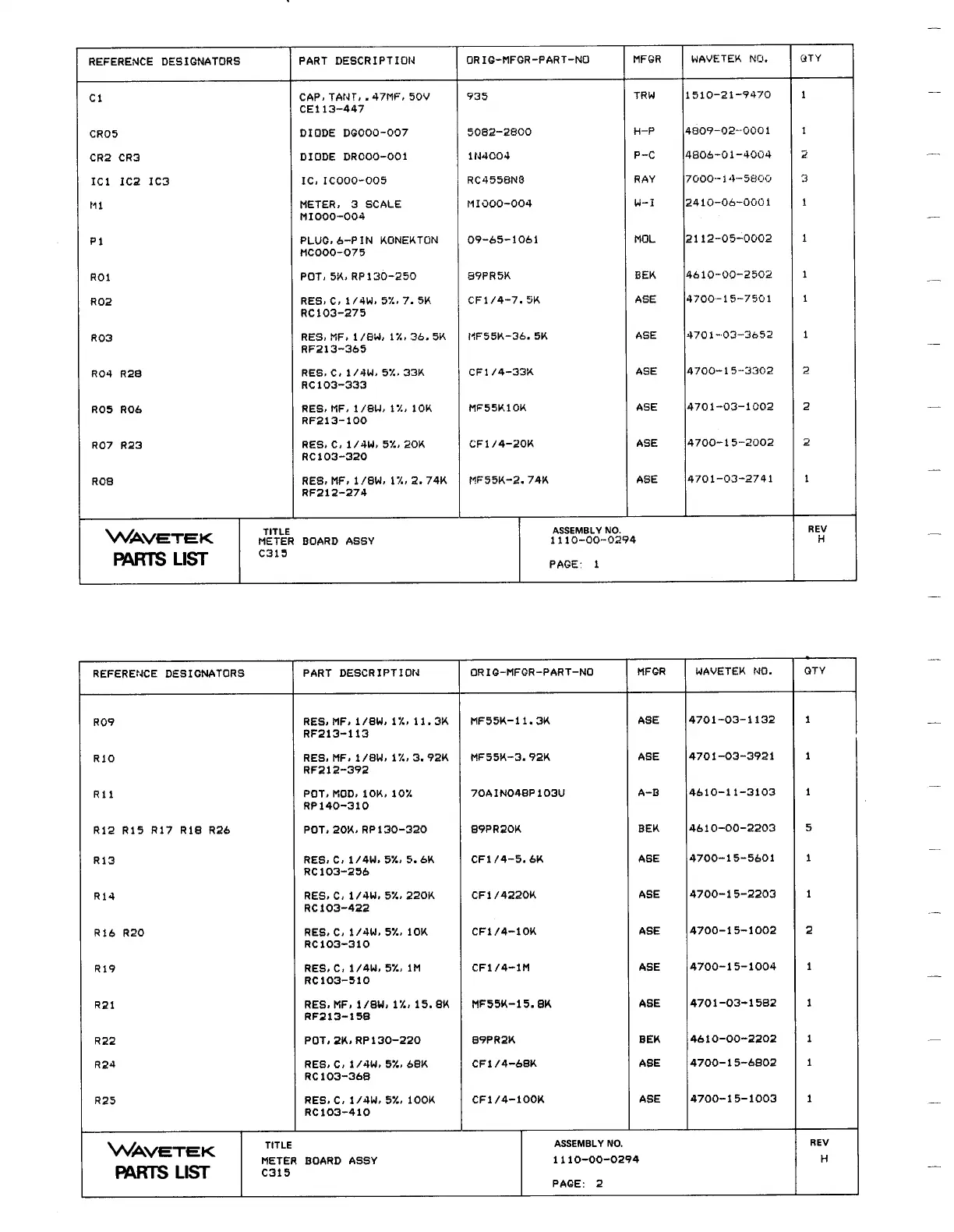

REFERENCE DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR
WAVETEK NO . CITY
C1
CAP,TANT- 47MF,50V
935 TRW
1510-21-9470 1
CE113-447
CRO5
DIODE D0000-007
5082-2800 H-P
4809-02--0001 1
CR2 CR3
DIODEDR000-001
IN4004 P-C 4806-01-4004 2
IC1 IC2 IC3
IC,I0000-005 RC4558NB
RAY 7000--14-5800 3
M1 METER, 3 SCALE
MI000-004 W-I
2410-06-0001 1
MI000-004
PI PLUO,6-PIN KONEKTON
09-65-1061 MOL 2112-05-0002
1
M0000-075
ROI POT,5K,RP130-250 89PR5K
BEK 4610-00-2502
1
R02 RES, C,
1/4W, 5Z, 7 . 5K CFI/4-7 .5K
ASE 4700-15-7501 1
RC103-275
R03 RES, MF, 1/BW,
1 ., 36 . 5K f'F55K-36 . 5K
ASE 4701-03-3652 1
RF213-365
R04R28 RES, C, 1
/4W, 5'/ . . 33K CFI/4-33K
ASE 4700-15--3302 2
RC103-333
R05 R06 RES,MF,1/8W,1%,IOK
MF55KIOK ASE
4701-03-1002 2
RF213-100
R07R23 RES, C, 1/4W, 5'/
.,
20K
CFI/4-20K ASE
4700-15--2002 2
RC103-320
ROB RES,MF,1/8W,1 ,2 .74K
MF55K-2 .74K ASE 4701-03-2741
1
RF212-274
TITLE ASSEMBLY
NO . REV
WAVETEK
METERBOARD ABBY
1110-00-0294
H
PARTS LIST
C315
PAGE' 1
REFERENCE DESIGNATORS
PART DESCRIPTION ORIG-MFGR-PART-NO
MFGR WAVETEK NO .
OTY
R09
RES,MF,i/BW,SI,11 .3K MF55K-11 .3K
ASE 4701-03-1132 1
RF213-113
RIO RES, MF,
1/8W, 1'/ ., 3 .92K MF55K-3 .92K ASE
4701-03-3921 1
RF212-392
Ril
POT,MOD,IOK,10G 70AIN048PI03U A-B 4610-11-3103
1
RP140-310
R12R15 R17R18R26 POT,20K,RP130-320
89PR20K BEK 4610-00-2203
5
R13 RES, C, 1/4W . 5'/ ., 5 .6K
CFI/4-5 .6K ASE 4700-15-5601 1
RC103-256
R14 RES .C,1/4W,5% .220K CFI/4220K
ASE 4700-15-2203 1
RC103-422
R16 R20 RES,
C, 1 /4W, 5'/ ., 1 OK CFI /4-IOK ASE
4700-15-1002 2
RC103-310
R19 RES,C,1/4W,5%,IM
CF1/4-IM ASE
4700-15-1004 1
RC103-510
R21 RES,MF,I/BW,1G .15.BK
MF55K-15 .8K ASE 4701-03-1582 1
RF213-158
R22 POT,2K,RP130-220
89PR2K BEK 4610-00-2202
1
R24 RES, C, 1/4W, 5'/ ., 68K CFI/4-68K
ASE 4700-15-6802 1
RC103-368
R25 RES . C, 1/4W, 5'/ . . 100K CFI/4-100K
ASE 4700-15-1003 1
RC103-410
WAVETEK
TITLE
ASSEMBLY NO .
REV
METERBOARD ABBY
1110-00-0294 H
PARTS LIST
C315
PAGE : 2
