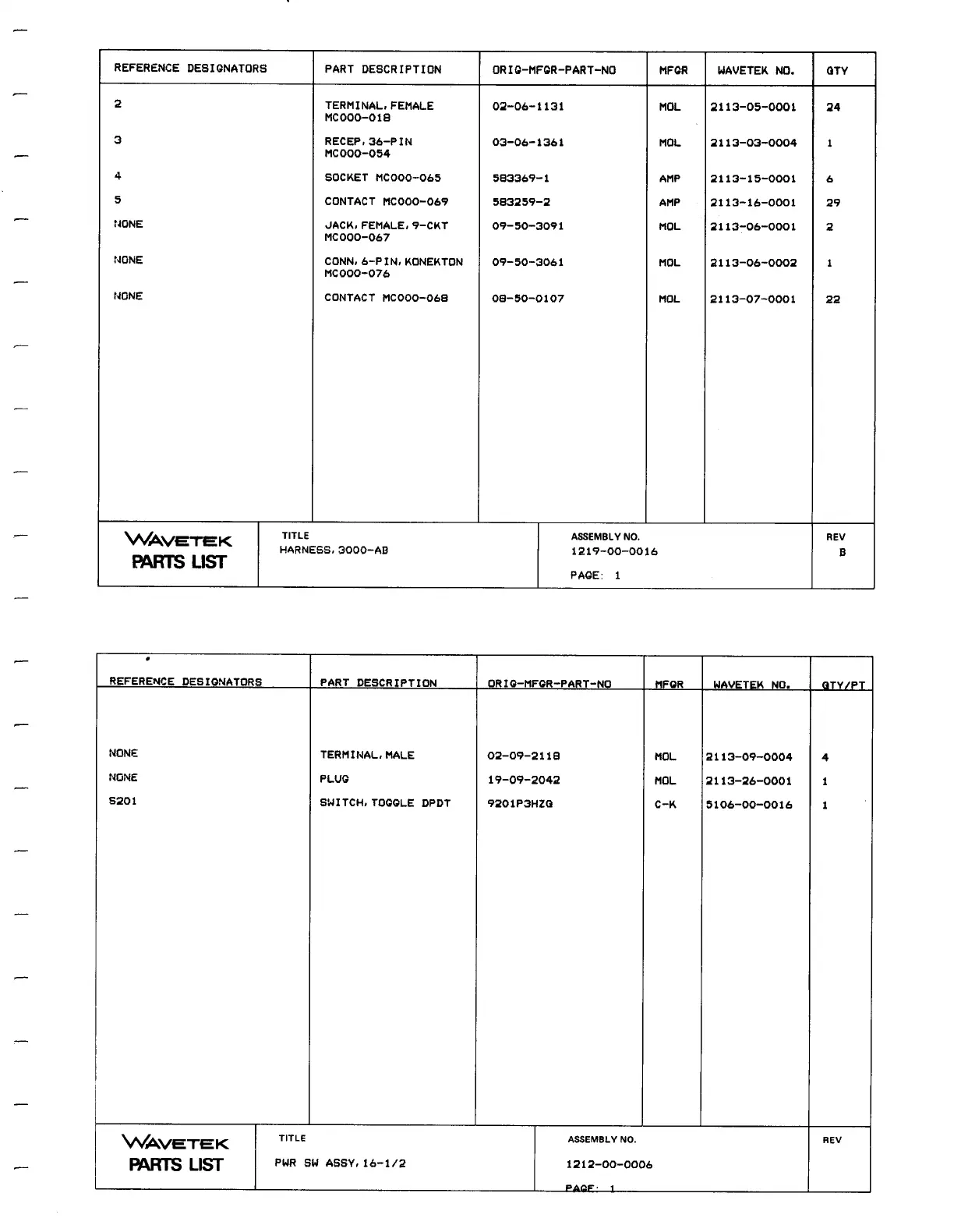

REFERENCE
DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
2 TERMINAL
.FEMALE 02-06-1131 MOL 2113-05-0001
24
M0000-018
3
RECEP,36-PIN
03-06-1361 MOL 2113-03-0004 1
M0000-054
4 SOCKET
MCOOO-065 583369-1 AMP 2113-15-0001 6
5
CONTACT MCOOO-069 583259-2 AMP 2113-16-0001
29
NONE
JACK,FEMALE,9-CKT
09-50-3091 MOL 2113-06-0001 2
M0000-067
NONE
CONN,6-PIN,KONEKTON
09-50-3061 MOL 2113-06-0002 1
MCOOO-076
NONE
CONTACT
MCOOO-068 08-50-0107 MOL 2113-07-0001
22
WAVETEK
TITLE
ASSEMBLY NO . REV
HARNESS,3000-AB
1219-00-0016
B
P~4RTS LIST
PAGE
:
1
REFERENCE
DESIGNATORS PART
DESCRIPTION ORIG-MFGR-PART-NO MFGR
WAVET K O . QTYIPT
NONE_
TERMINAL .MALE 02-09-2118
MOL 2113-09-0004 4
NONE
PLUG
19-09-2042 MOL
2113-26-0001 1
S201
SWITCH,T000LE
DPDT 920lP3HZQ C-K
5106-00-0016 1
WAVETEK
TITLE
ASSEMBLY NO . REV
PARIS LIST
PWR SW
ASSY,16-1/2 1212-00-0006
